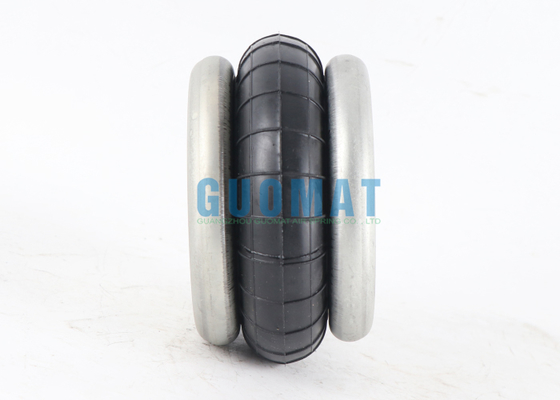

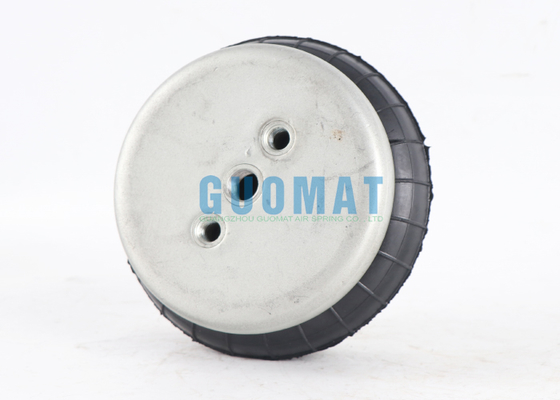

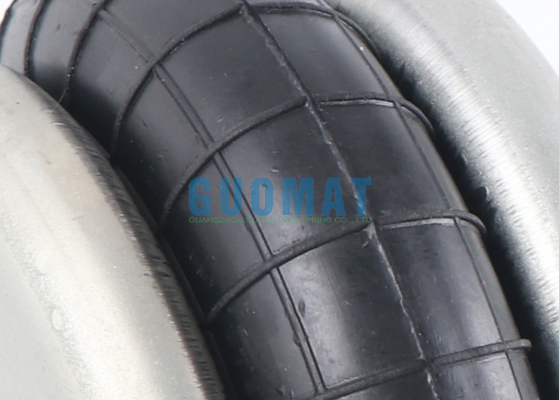

Firestone Style 16 Single Convoluted Air Shock W01-358-6996 Natural Rubber Air Spring

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B6996

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$49.9-$59.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Spring Type:	Single Convoluted Type	Quality:	100 % Tested
Purpose:	Reduce Shock	After-sales Service:	12 Months
Cross No.:	Firestone W01-358-6996	Maximum Height:	3.3 Inch
Weight:	1.5KG	Material:	Natural Rubber
Highlight:	Firestone air spring single convoluted , natural rubber air shock , industrial air spring with warranty

Firestone Style 16 Single Convoluted Air Shock W01-358-6996 Natural Rubber Air Spring

Product Specifications

Attribute	Value
Spring Type	Single Convoluted Type
Quality	100% Tested
Purpose	Reduce Shock
After-sales Service	12 Months
Cross No.	Firestone W01-358-6996
Maximum Height	3.3 inch
Weight	1.5KG
Material	Natural Rubber

Product Details

Product Name	Industrial Air Spring
Warranty	1 Year
Place of Origin	GuangDong China
Brand Name	GUOMAT
Certification	ISO/TS16949:2009
Model No.	1B
Condition	New
Other Name	Convoluted Rubber Air Spring

OEM Numbers

FIRESTONE Style Number: 16
FIRESTONE Part Number: W01-358-6996
FIRESTONE Part Number: W01 358 6996
FIRESTONE Part Number: W013586996
FIRESTONE Part Number: WO1-358-6996
FIRESTONE Part Number: WO1 358 6996
FIRESTONE Part Number: WO13586996

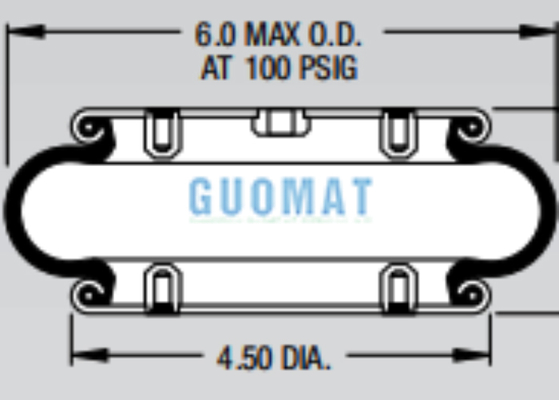

Technical Data

Maximum Diameter @ 100 PSIG (inches): 6'' / 152.4

Maximum Height: 3.5''

Minimum Height: 1.9''

Cover Plate Diameter: 4.5''

Air Fitting: 1/4NPT

Blind Nuts: 3/8-16

Blind Nut Centers: 1.75''

Airstroke Actuator Advantages

Low Cost: Initial cost is half or less than that of traditional pneumatic or hydraulic cylinders.
Wide Size Range: Diameters range from 2.2 inches to 37 inches, with a maximum load capacity of 100,000 pounds and a stroke of up to 14 inches.
High Durability: Based on GUOMAT spring technology, it is suitable for harsh environments and has a long service life.
Maintenance-Free: Requires no lubrication or maintenance, and has no internal piston, rod, or sliding seals, eliminating damage from dust or dirt.
Frictionless Operation: Fast response, no sliding seals, and no starting friction, resulting in more sensitive response.
Flexible Media Selection: Can operate with liquids or gases as the working medium.
Angular Motion Capability: Angular motion within a range of 30 degrees is possible, reducing the need for complex linkage designs.
Side Load Resistance: Unaffected by side loads within a certain range, eliminating the rod bending and seal wear problems associated with traditional air cylinders.
Compact Starting Height: The smallest model stands only 1.1 inches tall when folded, while the largest model (37-inch diameter) maintains a compact design.
Factory Sealed and Tested: The press-fit end plate design is factory-tested for quick installation.
