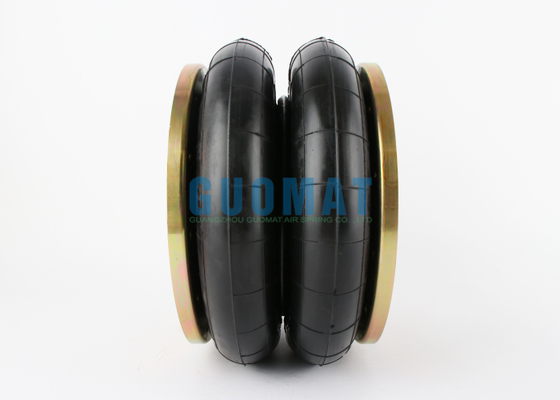

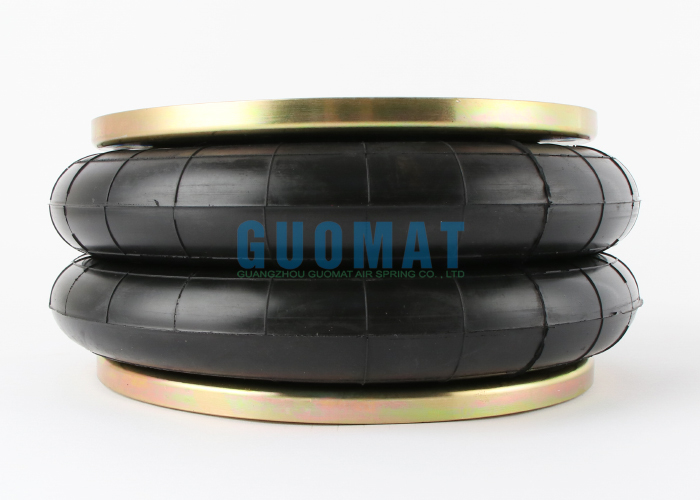

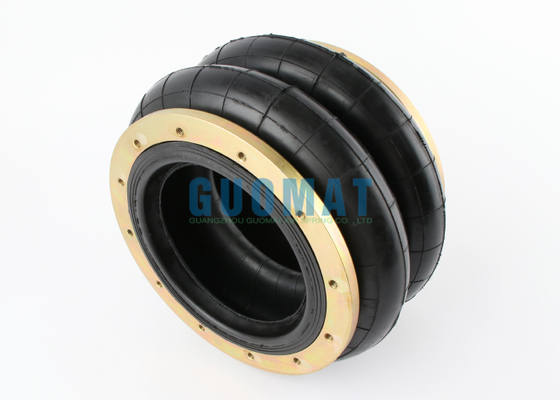

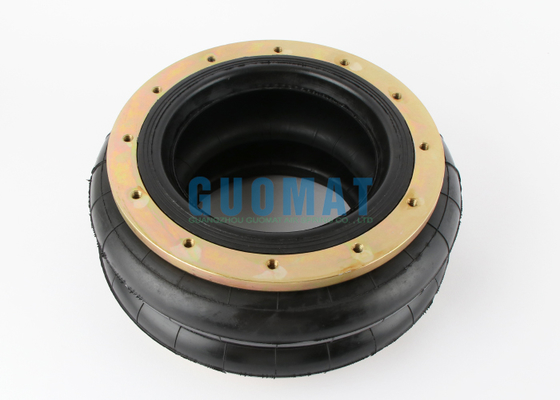

2H250180 Double Convoluted Air Spring Replace 90587/245 Model Pneumatic Actuators

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2H250180

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$129.9-$139.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Rubber Bellow And Steel Flange Ring	Warranty:	1 Year Warranty
Function:	Reduce Shock	Quality:	100 % Tested
Model Code:	245	Type:	Flange Air Spring
Code No.:	93740/90587	Bolts:	M 8 X 1.25
Highlight:	Double Convoluted Air Spring , Industrial Air Spring with warranty , Pneumatic Actuators replacement part

2H250180 Double Convoluted Air Spring Replace 90587/245 Model Pneumatic Actuators

Product Attributes

Attribute	Value
Material	Rubber Bellow and Steel Flange Ring
Warranty	1 Year Warranty
Function	Reduce Shock
Quality	100 % Tested
Model Code	245
Type	Flange Air Spring
Code No.	93740/90587
Bolts	M 8 x 1.25

Product Description

Brand: GUOMAT

GUOMAT Air Spring: 2H250180
GUOMAT Bellows NO.: 2B250
GUOMAT NO.: 2H250180 refer to 90587
Cross No.: 93740 P-irelli Air Spring

Pneumatic Actuator Specifications

Model: 245
Type: F1
High Temp. code: 90587
PCD: 145mm
Max OD: 270mm
Max. Height: 310mm
Min. Height: 85mm
Stiffness: 18.4 daN/mm
Connection: Bead Ring Flange connection

2H250180 Technical Data

Effective Diameter: 185mm
Compressed Height: 84mm
Max. Height: 206mm
Natural Height: 180mm
Stroke: 122mm
Top Cover Plate Diameter: 183mm
The Rubber Bellow Max.Outer Diameter: 270mm (0.7Mpa)
The Center Distance of the Bolts: 145mm
Bolts Quantity: 8pcs-M10

Carrying Capacity

Installation (mm)	0.2 MPa	0.3 MPa	0.4 MPa	0.5 MPa	0.6 MPa	0.7 MPa	0.8 MPa	Volume at 0.7MPa (dm3)
84	755	1125	1484	1868	2239	2610	2980	2.18
126	668	1015	1360	1694	2041	2388	2746	3.71
168	530	848	1144	1426	1735	2030	2327	5.06
180	520	795	1073	1345	1627	1904	2195	5.28
206	412	638	857	1089	1321	1554	1798	5.90
230	312	494	676	857	1045	1243	1446	6.60

Stiffness and Frequency at Design Height

Parameter	0.2 MPa	0.3 MPa	0.4 MPa	0.5 MPa	0.6 MPa	0.7 MPa	0.8 MPa
Vertical Stiffness (Kg/cm)	101	120	150	184	212	231	257
Natural Frequency (HZ)	2.21	1.94	1.87	1.85	1.81	1.74	1.71

Applied As Suspension - Double Convoluted Type

MODEL	Standard NO.	High-Temp NO.	Connection	Max.OD mm	Min.H mm	Max.H mm	Static H mm	Effect Area cm2	Stiffness daN/mm
23B	202665	-	F1	165	65	205	150	104	8
26	84181	89422	F2	220	85	245	165	169	12
20	86600	-	F2	255	80	265	170	240	13.9
245	93740	90587	F1	270	85	310	185	348	18.4
22	94091	-	P2	325	88	288	183	450	23.1
88544	89425	F2	325	80	280	175	450	23.1
21 BR	89457	-	F2	380	80	290	180	680	33.9
21A BR	97300	-	F2	435	85	315	190	785	33.7
21B BR	92154	-	F2	440	85	385	200	850	38
28 BR	92527	-	F2	445	80	310	185	1015	78.6
28 B	90559	-	F2	485	85	375	250	105	38.5
29	93056	-	P3	570	90	330	195	1930	83.8
93166	-	F2	570	80	320	185	1930	83.8
