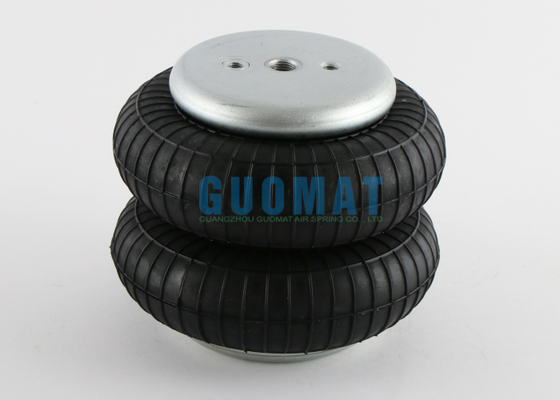

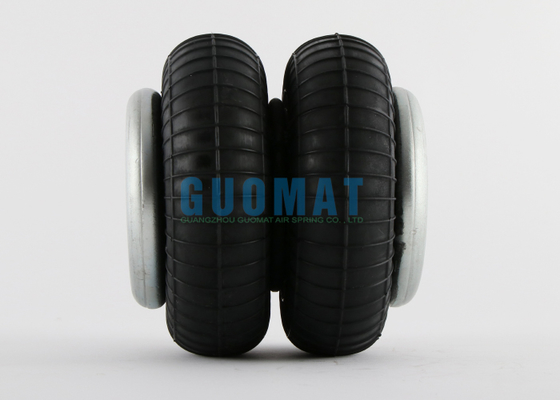

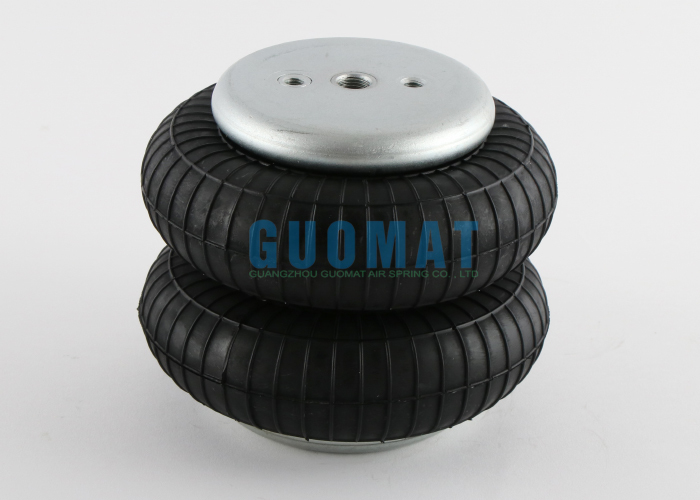

2B12-305 Goodyear Double Bellow Air Spring W01-358-7443 Firestone Industrial Air Actuator

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	GUOMAT
Certification:	ISO/Ts16949:2009
Model Number:	2B7443

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$59.9-69.9/pc
Packaging Details:	Carton packaging or packaging according to customer requirements
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10,000 Per Week

Contact Now

Detailed Product Description

Features:	100% Accuracy Of Fit	Model Name:	Goodyear Air Spring
Quality:	100 % Tested	Fuction:	Reduce Shock
Warranty:	12 Months	Condition:	New
Fitment Type:	Direct Replacement	Type:	Air Suspension Spring Bag
Highlight:	Goodyear double bellow air spring , Firestone industrial air actuator , industrial air spring with warranty

2B12-305 Goodyear Double Bellow Air Spring W01-358-7443 Firestone Industrial Air Actuator

Product Specifications

Attribute	Value
Model Name	Goodyear Air Spring
Quality	100% Tested
Function	Reduce Shock
Warranty	12 Months
Condition	New
Features	100% Accuracy of Fit
Fitment Type	Direct Replacement
Type	Air Suspension Spring Bag

Product Details

Model: Double Convoluted Bellows Air Spring
Brand: GUOMAT
Model No.: 2B7443
Applications: Industrial Equipment
Certifications: ISO9001
Packaging: Neutral Packaging
Dimensions: OEM Standard Sizes
Quality: 100% Professionally Tested

Original Equipment Manufacturers Numbers

CONTITECH NUMBER: 64531
CONTITECH NUMBER: FD 330-22 323
CONTITECH NUMBER: FD330-22 323
CONTITECH NUMBER: FD330-22323
DAYTON NUMBER: 354-7443
FIRESTONE NUMBER: 7443
FIRESTONE NUMBER: W01-358-7443
FIRESTONE NUMBER: W01 358 7443
FIRESTONE NUMBER: W013587443
GOODYEAR NUMBER: 2B12-305
GOODYEAR NUMBER: 2B 12-305
GOODYEAR NUMBER: 578913310
GOODYEAR NUMBER: 578 91 3 310
GOODYEAR NUMBER: 578-91-3-310
GRANNING NUMBER: 1218
GRANNING NUMBER: 1589
INT'L/NAVISTAR NUMBER: 554786C1
LOAD GUARD NUMBER: SC2026
RIDEWELL NUMBER: 1003587443C
TRIANGLE NUMBER: 4323
TRP NUMBER: AS74430
WATSON&CHALIN NUMBER: AS-0027

Technical Specifications

Specification	Value

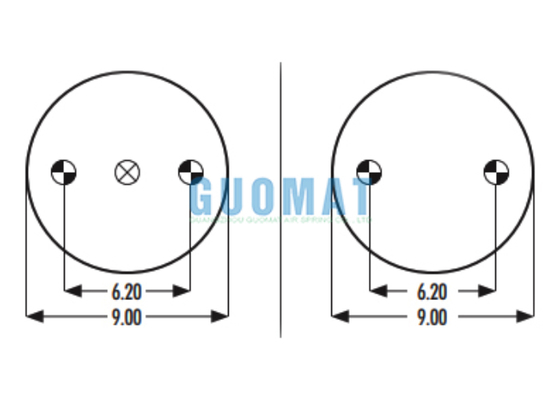

Top Plate Hole/Stud Qty	3
Top Plate Dia	9''
Top Plate C to C Diameter	6.2''
Bottom Plate Hole Stud Qty	2
Bottom Plate Dia	9''
Bottom Plate C to C Diameter	6.2''
Bottom Plate Alignment	Parallel
Bumper	No

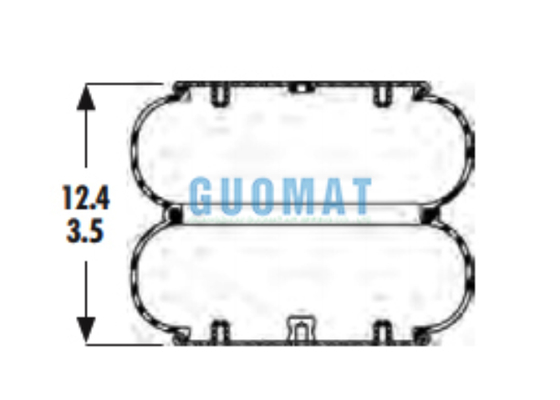

Min Height	3.5''
Max Height	12.4''

Compatible Part Numbers

Part Number	Top Plate Hole/Stud Qty	Bottom Piston Hole/Stud Qty	Top Plate Dia.	Bottom Plate Dia.	Collapsed Height	Flexmember
2B9-229	1	1	6.4	6.4	2.9	578-92-3-211
2B9-245	1	1	6.4	6.4	3.8	578-92-3-202
2B9-218	1	2	6.4	6.4	3.5	578-92-3-206
2B9-230	1	2	6.4	6.4	3.8	578-92-3-202
2B9-246	2	1	6.4	6.4	3.8	578-92-3-211
2B12-304	2	1	9	9	3.4	578-92-3-309
2B12-411	2	1	9	9	3.5	578-92-3-309
2B12-412	2	1	9	9	4.2	578-92-3-309
2B9-244	2	2	6.4	6.4	3.8	578-92-3-202
2B9-252	2	2	6.4	6.4	3.8	578-92-3-206
2B9-254	2	2	6.4	6.4	3.8	578-92-3-206
2B9-265	2	2	6.4	6.4	3.8	578-92-3-206
2B9-266	2	2	6.4	6.4	3.8	578-92-3-208
2B12-410	2	2	9	9	3.5	578-92-3-309
2B12-427	2	2	9	9	3.5	578-92-3-309
2B12-432	2	2	9	9	3.5	578-92-3-309
2B12-434	2	2	9	9	3.5	578-92-3-310
2B12-307	2	2	9	9	3.8	578-92-3-305
2B12-313	2	2	9	9	3.8	578-92-3-309
2B12-317	2	2	9	9	3.8	578-92-3-310
2B12-324	2	2	9	9	3.8	578-92-3-310
2B12-345	2	2	9	9	3.8	578-92-3-315
2B12-346	2	2	9	9	3.8	578-92-3-315
