FS 44-5 DI Contitech Crimped Convoluted Air Springs W01-R58-4050 Firestone Bellows Rubber

FS 44-5 DI Contitech Crimped Convoluted Air Springs W01-R58-4050 Firestone Bellows Rubber

FS 44-5 DI Contitech Crimped Convoluted Air Springs W01-R58-4050 Firestone Bellows Rubber
FS 44-5 DI Contitech Crimped Convoluted Air Springs W01-R58-4050 Firestone Bellows Rubber
FS 44-5 DI Contitech Crimped Convoluted Air Springs W01-R58-4050 Firestone Bellows Rubber
Product Details:
Place of Origin: Guangzhou,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 1B4.5X1P
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: USD79.9-99.9/PC
Packaging Details: Strong Carton Box or as Customers Requirement
Delivery Time: 3-7 Working Days
Payment Terms: L/C, T/T, Western Union Or Others
Supply Ability: 1000PCS/Week
Contact Now
Detailed Product Description
Part Name: Crimped Air Spring Warranty: 12 Months
Type: Gas-Filled Material: Rubber And Steel
Contitech: FS44-5DI Firestone: W01-R58-4050
Cover Material: Aluminum Color: Black
Highlight:

Contitech crimped air springs

,

Firestone rubber bellows

,

industrial air spring with warranty

FS 44-5 DI Contitech Crimped Convoluted Air Springs W01-R58-4050 Firestone Bellows Rubber
Product Attributes
Attribute Value
Part Name Crimped Air Spring
Warranty 12 Months
Type Gas-Filled
Material Rubber and Steel
Contitech FS44-5DI
Firestone W01-R58-4050
Cover Material Aluminum
Color Black
Product Details
Item Single Convoluted Air Spring
Brand GUOMAT
Model Number 1B4.5X1P
Material Rubber+Aluminum
Warranty 12 Months
Payment T/T, L/C, Western Union, Paypal
Shipping Ship by Air, Sea, Express
Delivery Time 3-7 Working Days
Also Known As (OEM Number)
  • Contitech 70205
  • Contitech FS44-5
  • Contitech FS 44-5
  • Contitech FS44-5 DI
  • Contitech FS 44-5 DI
  • Contitech FS44-5 DI G3/8
  • Contitech FS 44-5 DI G3/8
  • Contitech FS44-5 DI G3/8 CR
  • Contitech FS 44-5 DI G3/8 CR
  • Contitech FS44-5DIG3/8CR
  • Firestone W01-R58-4050 / WO1-R58-4050
  • Firestone W01 R58 4050 / WO1 R58 4050
  • Firestone W01R584050 / WO1R584050
  • Firestone 41/2X1 / 4 1/2X1
  • Dunlop SP2334
  • Dunlop SP 2334
  • Norgren PM/31041
  • Norgren PM31041
  • Norgren PM 31041
Technical Data

Compressed Height: 1.97"

Max Expanded Height: 3.54"

Max Diameter: 4.92"

Max Inflation Pressure: 120 psi

Max Stroke: 1.57"

Air Inlet Type: Metric

Air Inlet: 3/8"

Series: D

Bellows Type: Single Convoluted

Weight: 1 lbs.

Vibration Isolation - Dynamic Characteristic Values
Pressure P bar 3 4 5 6 7 8 Vol V(I)
Force(Load) KN 1.5 2.1 2.7 3.2 3.8 4.4 0.27
Spring Rate C N/mm 112 141 169 198 226 253
Natural Frequenz f0 Hz 4.2 4.1 4 3.9 3.8 3.8
Pneumatic Application - Static Characteristic Values
Pressure P bar 3 4 5 6 7 8 Vol V(I)
height H(mm) 80 Forcr F (kN) 1.02 1.44 1.87 2.3 2.74 3.2 0.32
70 1.58 2.15 2.7 3.3 3.88 4.5 0.27
60 2.17 2.89 3.62 4.34 5.08 5.85 0.22

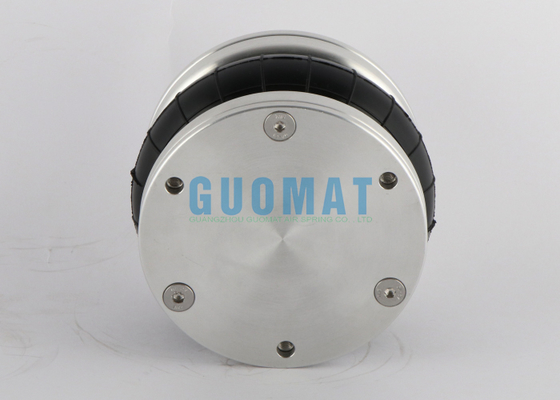

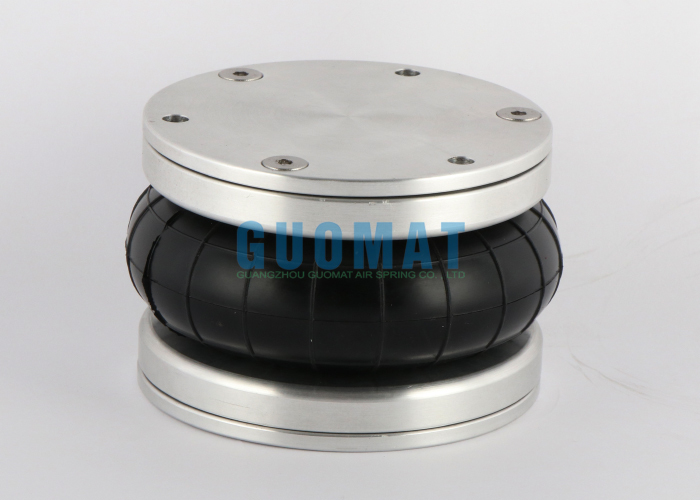

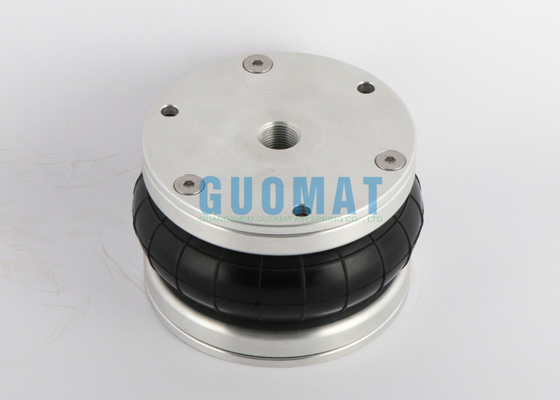

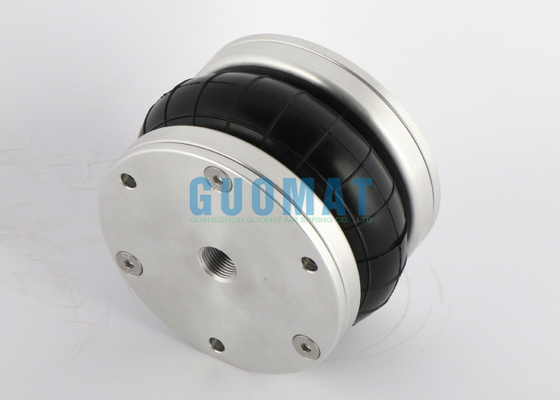

Product Images
FS 44-5 DI Contitech Crimped Convoluted Air Springs W01-R58-4050 Firestone Bellows Rubber 0 FS 44-5 DI Contitech Crimped Convoluted Air Springs W01-R58-4050 Firestone Bellows Rubber 1
