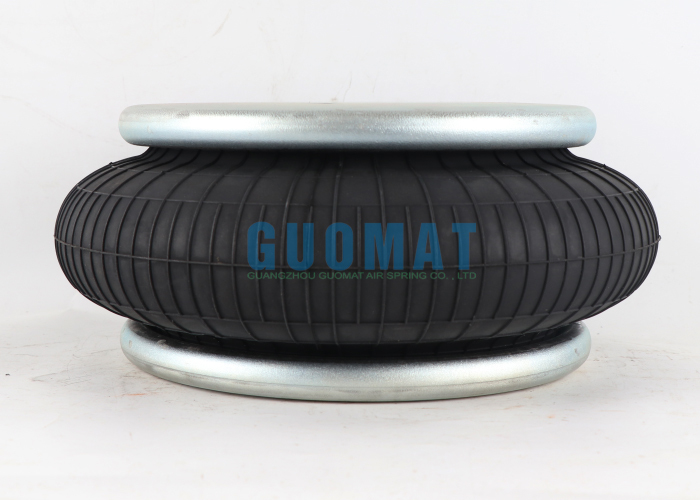

W01-358-7094 Firestone Airide Replacement Air Spring For Dehydration Machine

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B7094

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Item Name:	Industrial Air Spring	Warranty:	1 Year Warranty
Quality:	100 % Tested	Material:	Rubber Bellow And Aluminum Cover
Firestone:	W01-358-7094	Air Fitting:	3/4NPT
Max.Height:	140mm	Min.height:	68mm
Highlight:	Firestone Airide replacement air spring , industrial air spring for dehydration machine , Firestone air spring with warranty

W01-358-7094 Firestone Airide Replacement Air Spring For Dehydration Machine

Product Attributes

Attribute	Value
Item Name	Industrial Air Spring
Warranty	1 Year Warranty
Quality	100 % Tested
Material	Rubber Bellow and Aluminum Cover
Firestone	W01-358-7094
Air Fitting	3/4NPT
Max.Height	140mm
Min.height	68mm

Product Description

W01-358-7094 Firestone Airide Replacement Air Spring For Dehydration Machine

Brand: GUOMAT
Model No.: 1B7094
Material: Rubber+Steel
Warranty: 12 Months
Delivery Time: 3-8 Working Days
Type: Convoluted Air Spring

Compatible Firestone Air Spring Assembly Numbers:

W01-358-7094
W01 358 7094
W013587094
WO1-358-7094
WO1 358 7094
WO13587094

Technical Specifications

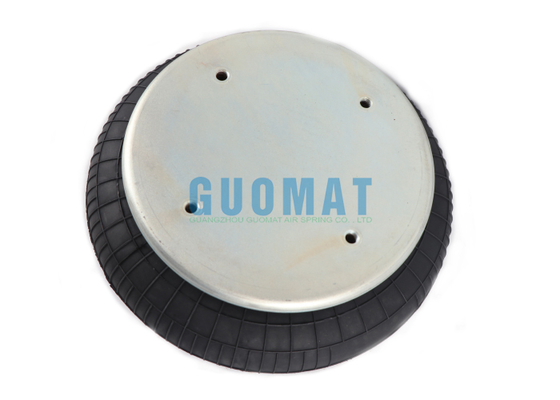

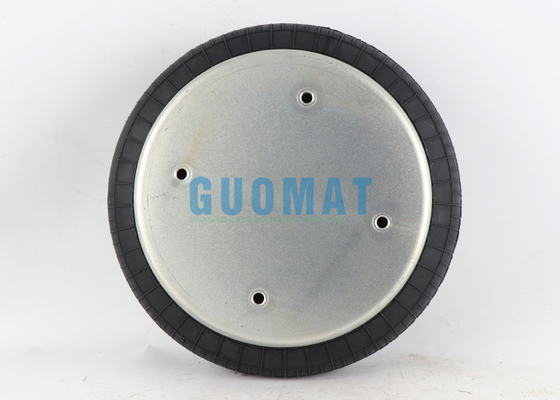

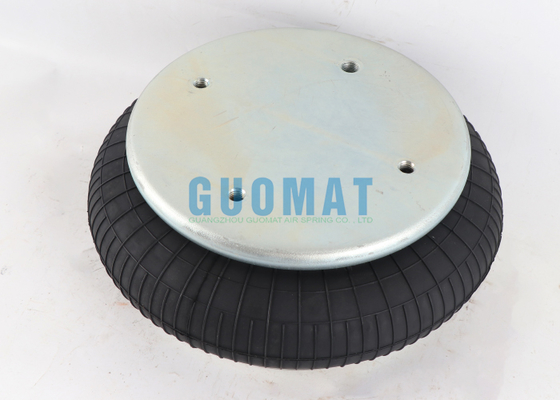

TOP COVER PLATE

Top cover plate diameter: 289mm

Threaded hole size: 3/8-16UNC

Air fitting: 3/4NPT

Number of threaded holes: 4

Distance between threaded holes: 158.8mm

BOTTOM COVER PLATE

Bottom cover plate diameter: 289mm

Threaded hole size: 3/8-16UNC

Number of threaded holes: 4

Distance between threaded holes: 158.8mm

RUBBER BELLOW

The rubber bellow max.outer diameter: 386mm

Max.height: 140mm

Min.height: 68mm

Compatible Models Reference

GUOMAT	Firestone	Flex Number	Piston	Top Plate Feature	Bottom Plate Feature	Top Plate Dia	Bottom Plate Dia	Collapsed Height	Comment
1B7103	W01-358-7103	113B	6912	5	4	11.31	11.31	2.12	1B14-350
1B7104	W01-358-7104	113B	3130	5	4	11.31	11.31	2.12	1B14-351
1B7193	W01-358-7193	113B-.5	3122	2	4	11.31	11.31	3.7
1B7105	W01-358-7105	113B-.5	3130	5	4	11.31	11.31	3.7
1B7117	W01-358-7117	113B-1	3122	2	4	11.31	11.31	3.7
1B7112	W01-358-7112	113B-1	3122	5	4	11.31	11.31	2.12	1B14-358
1B7088	W01-358-7088	113B-1	3122	5	4	11.31	11.31	3.7
1B7094	W01-358-7094	113B-1	3130	5	4	11.31	11.31	2.7
1B7726	W01-358-7726	126B	3474	5	4	19.00	19.00	2.12
1B7462	W01-358-7462	150B	3100	3	2	3.61	6.31	3.1
1B8163	W01-358-8163	153B-2
1B0510	W01-358-0510	16B	3456	1	1	4.5	4.5
1B7001	W01-358-7001	16B	3025	3	2	4.5	4.5		1B5-500
1B7011	W01-358-7011	19B							1B12-304
1B6994	W01-358-6994	19B	3183	2	2	9	9	2.7
1B7008	W01-358-7008	19B	3212/3183	3	2	9	9	2.12	1B12-300 1B12-313
1B7009	W01-358-7009	19B	3183	3	2	9	9	2.12	1B12-301
1B7043	W01-358-7043	19B-.75	7023	3	2	9	9	2.7	1B12-305 1B12-900
