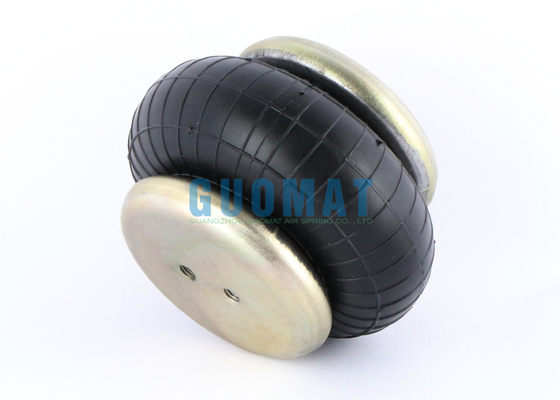

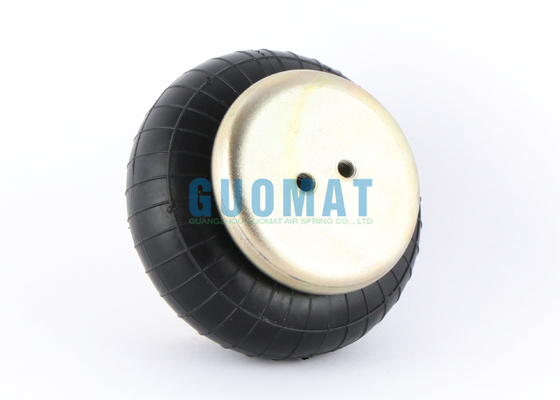

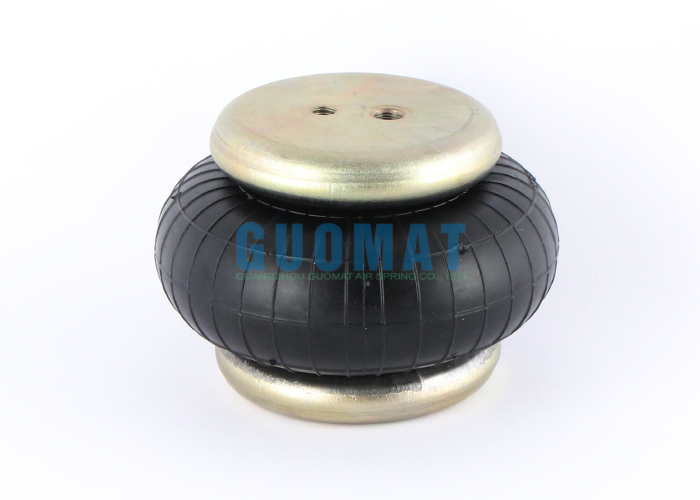

FS40-6 Contitech Single Convoluted Air Spring SP1B04 Phoenix Industrial Rubber Bellows

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B4060

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD49.9-59.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Style:	Convoluted Type Air Spring	Pressure Ability:	0.2-0.8 M PA
Material:	Rubber And Steel	Warranty:	1 Year
Gas Hole:	G1/8	Stroke:	50mm-110mm
Convolutions:	1	Contitech:	FS 40-6 1/8 M8
Highlight:	Contitech single convoluted air spring , Phoenix industrial rubber bellows , FS40-6 air spring with warranty

FS40-6 Contitech Single Convoluted Air Spring SP1B04 Phoenix Industrial Rubber Bellows

Product Specifications

Attribute	Value
Style	Convoluted type Air Spring
Pressure Ability	0.2-0.8 M PA
Material	Rubber and Steel
Warranty	1 Year
Gas Hole	G1/8
Stroke	50mm-110mm
Convolutions	1
Contitech	FS 40-6 1/8 M8

Product Details

Brand: GUOMAT

Manufacturer Part Number: 1B4060

Manufacturer Warranty: 12 Months

Material: Rubber+Steel

Color: Black

Place of Origin: Guangzhou, China

Certification: ISO/TS16949:2009

Packing: Neutral Packing

Quality: High-Quality

Compatible Replacement Parts

ContiTech: FS 40-6 CI G1/8 M8
ContiTech: FS 40-6 C1 1/8 M8
ContiTech: FS 40-6 G1/8 M8
ContiTech: FS 40-6 1/8 M8
ContiTech Bellow: FS 40-6/FS40-6/FS406
Enidine: YM FS 40-6/YMFS40-6/YMFS406
Enidine: YM FS 40-6 CI G1/8 M8
Enidine: YlFS 40-6-000/YIFS40-6-000/YIFS406000
Enidine: Yl FS 40-6 CI1/8NPT 3/8-16UNC
Phoenix: SP1B 04/SP1B04
Goodyear: 1B5-800/1B5800/1B5800
Goodyear Flex No.: 579-913-500/579 913 500/5799135
Festo: EB-145-60/EB145 60/EB14560
Enidine: Y1-1B5-800/Y11B5 800/Y1B5800
Weforma: WBE100-E1/WBE100 E1/WBE100E1
Numatics: ASNS10-2-1/ASNS1021/ASNS1021
Vigor: 1B 5001/1B5001
Vigor Bellow: 1B40-6/1B40 6/1B406
VKNTECH: 1B 4060/1B4060
VKNTECH Bellow: 1B40-6/1B40 6/1B406
EAA: 1E40-6/1E406/1E406
Volvo AH-0188/AH 0188/AH0188

Technical Specifications

This air spring features a G1/8 pore size and three M8×1.25 externally threaded mounting holes. Its maximum operating pressure is 7 bar and its outer diameter is 145 mm. The maximum height of the spring body is 110 mm, while the minimum height is 90 mm. The cover plate has a diameter of 90 mm, and the center-to-center distance between the pores and threaded holes is 20 mm, with the center-to-center distance between threaded holes also being 20 mm. The overall structure is compact, making it suitable for industrial applications requiring precise pneumatic support and cushioning.

Available Air Actuator Models

Single Convolution Bellows	Double Convolution Bellows	Triple Convolution Bellows
FS 22-3 DI CR	FD 22-4 DI CR	FT 22-6 DI CR
FS 44-5 DI CR	FD 44-10 DI CR	FT 44-25 DI CR
FS 76-7 DI CR	FD 76-14 DI CR	FT 76-20 DI CR
FS 76-7 DS CR	FD 76-14 DS CR	FT 76-20 DS CR
FS 138-8 DI	FD 138-18 DS	FT 138-26 DS
FS 210-10 DS	FD 209-21 DS	FT 210-32 DS
FS 412-10 DS	FD 210-22 DS	FT 412-32DS
FS 614-13 DS	FD 412-18 DS	FT 614-36 DS
FS 816-15 DS	FD 614-26 DS	FT 816-40 DS
	FD 816-30 DS
