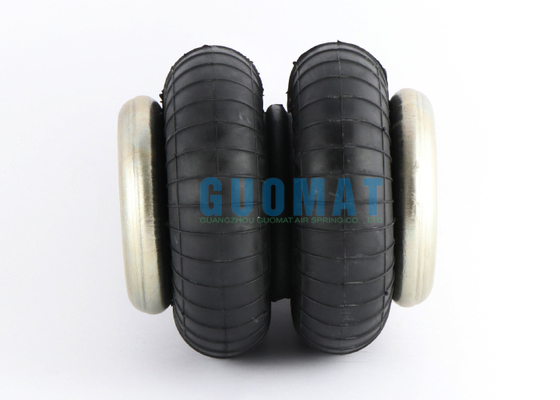

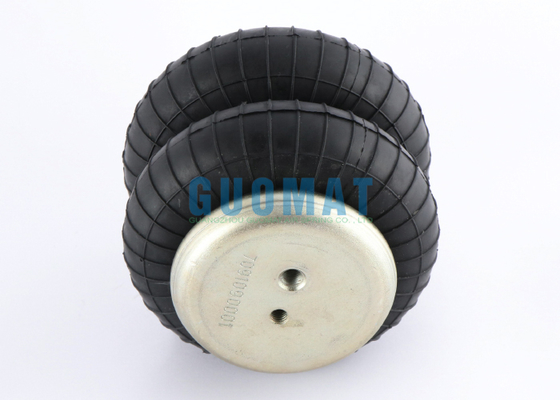

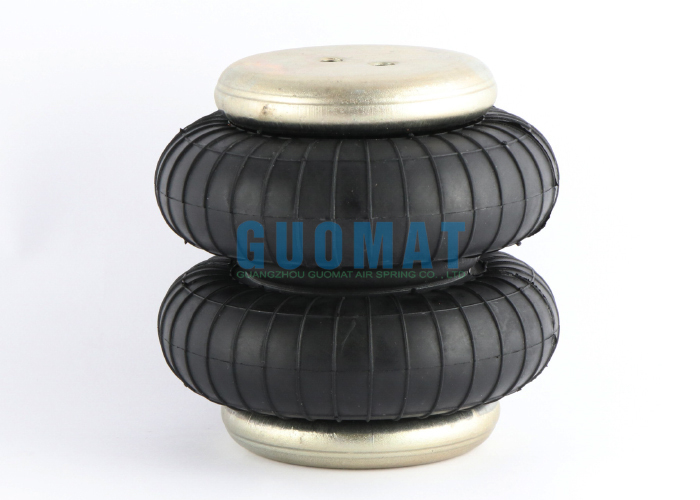

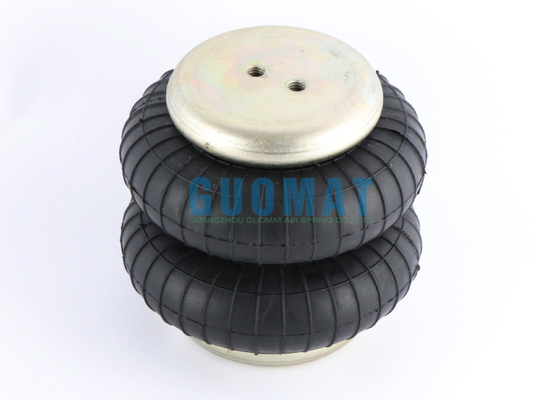

FD 40-10 ConTetich Rubber Air Bellows Suppliers G1/8 Gas-Filled Industrial Air Spring Bags

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B4060

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD59.9-69.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Style:	Single Convoluted Air Spring	Material:	Rubber And Steel
Warranty:	1 Year	Convolutions:	1
Product Name:	Air Spring, Airbag, Air Balloon, Air Bellows	Dimension:	OEM/standard Size
Operation:	Gas-filled	Quality:	100% Tested
Highlight:	G1/8 industrial air spring , rubber air bellows suppliers , gas-filled air spring bags

FD 40-10 ConTetich Rubber Air Bellows Suppliers G1/8 Gas-Filled Industrial Air Spring Bags

Product Attributes

Attribute	Value
Style	Single Convoluted Air Spring
Material	Rubber and Steel
Warranty	1 Year
Convolutions	1
Product Name	Air Spring, Airbag, Air Balloon, Air Bellows
Dimension	OEM/standard size
Operation	Gas-filled
Quality	100% Tested

Product Details

Brand: GUOMAT

Manufacturer Part Number: 2B4060

Manufacturer Warranty: 12 Months

Material: Rubber+Steel

Color: Black

Place of Origin: Guangzhou, China

Certification: ISO/TS16949:2009

Packing: Neutral Packing

Quality: High-Quality

Cross Reference Numbers

ContiTech:FD40-10
ContiTech:FD 40-10
ContiTech:FD 40-10 Cl G1/8
ContiTech:FD 40-10 C1 2682 001000
ContiTech:FD 40-10 Cl G1/8 M8
ContiTech:FD 40-10 1/8 M8
ContiTech Bellow:FD 40-10/FD 40 10/FD4010
Festo:EB-145-100/EB 145 100/EB145100

Technical Data

Natural Height: 145mm
The Rubber Bellows Natural Outer Diameter: 125mm
Cover Plate Diameter: 90mm
Air Hole: G1/8
Threaded Hole: M81.25
Center Distance Between Threaded Holes and Air Holes: 20mm
Center Distance Between Threaded Holes: 20mm

Air Spring Types

Single Convoluted Type	Double Convoluted Type	Triple Convoluted Type
FS 40-6 CI	FD 40-10 CI	FT 330-29 CI
FS 50-5 CI	FD 70-13 CI	FT 430-32 CI
FS 70-7 CI	FD 110-15 CI	FT 530-32 CI
FS 100-10 CI	FD 120-17 CI	FT 530-35 CI
FS 120-9 CI	FD 120-20 CI	FT 960-34 CI
FS 120-10 CI	FD 200-19 CI	FT 1330-35 CI
FS 120-12 CI	FD 200-22 CI
FS 200-10 CI	FD 200-25 CI
FS 330-11 CI	FD 330-22 CI
FS 330-14 CI	FD 330-30 CI
FS 530-11 CI	FD 530-22 CI
FS 530-14 CI	FD 530-30 CI
FS 960-12 CI	FD 530-35 CI
FS 1330-11 CI	FD 960-22 CI
	FD 1330-25 CI

Common Interface Thread Specifications

Thread Designation	Thread Type	Standard Name	Primary Purpose	Dimension	Pitch	Sealing Method	Notes & Cautions
G1/2	British Pipe Thread	BSPP (Parallel)	Air Inlet/Outlet	20.955mm	1.814 mm	O-ring or Washer (Face Seal)	One of the most common ports for pneumatic connections. Requires a G1/2 quick-release or pneumatic connector.
G1/4	British Pipe Thread	BSPP (Parallel)	Air Inlet/Outlet	13.157mm	1.337 mm	O-ring or Washer (Face Seal)	Commonly used for pressure sensors, gauges, or smaller lines. Requires a G1/4 connector
3/8UNC	Unified Thread	UNC (Coarse)	Mounting/Fastening	9.525mm	1.058 mm	Not for sealing (Mechanical Fastening)	This is NOT an air port! This is a mounting hole for bolts to secure the spring or attach fittings. Use a 3/8" UNC bolt.
M8	Metric Thread	ISO Metric (Standard Coarse)	Mounting/Fastening	8.0mm	1.25 mm	Not for sealing (Mechanical Fastening)	This is NOT an air port! Used for bolting. Common on European and Asian machinery. Use an M8 bolt. Check grade (e.g., 8.8, 10.9).
M10	Metric Thread	ISO Metric (Standard Coarse)	Mounting/Fastening	10.0mm	1.5 mm	Not for sealing (Mechanical Fastening)	This is NOT an air port! A larger mounting hole for higher load applications. Use an M10 bolt. Check grade (e.g., 8.8, 10.9).
