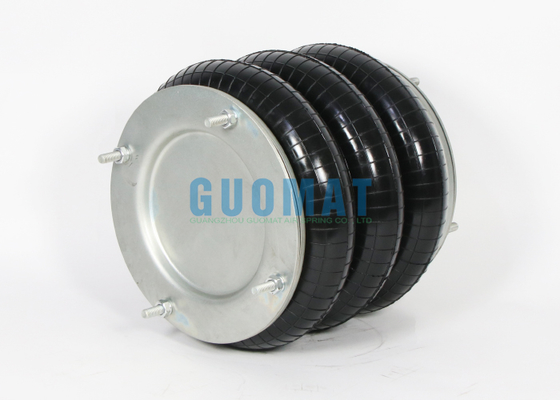

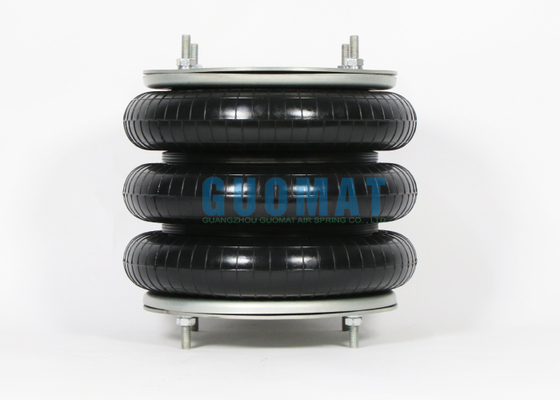

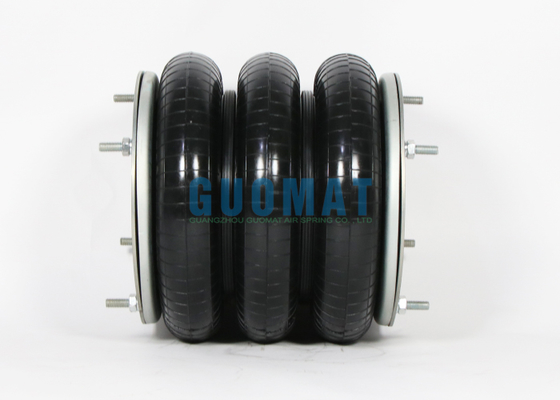

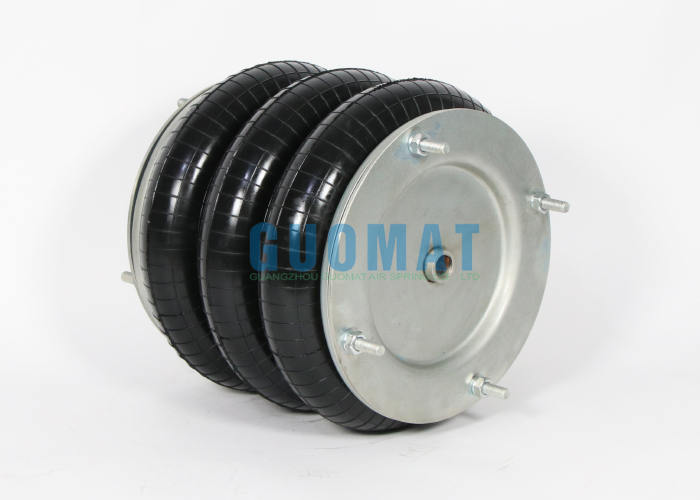

12"x 3 Triple Bellow Air Spring FT 412-32 DS Contitech Rubber Industrial Air Spring

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	3B12X3T

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$139.9-159.9/pc
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Name:	Triple Convoluted Air Spring	Spring Material:	Rubber And Steel
Condition:	Brand New	Warranty:	1 Year
Color:	Black	Bellows No.:	12''x3
Contitech:	FT 412-32 DS	Sample Order:	Acceptable
Highlight:	12x3 triple bellow air spring , industrial air spring with contitech rubber , FT 412-32 DS air spring

12"x 3 Triple Bellow Air Spring FT 412-32 DS Contitech Rubber Industrial Air Spring

Product Specifications

Attribute	Value
Model Name	Triple Convoluted Air Spring
Spring Material	Rubber And Steel
Condition	Brand New
Warranty	1 Year
Color	Black
Bellows No.	12''x3
Contitech	FT 412-32 DS
Sample Order	Acceptable

Product Description

Parameter	Description
Brand	GUOMAT
Product Type	Industrial Air Spring
Model Number	3B12X3T
Product Name	Industrial Air Spring / Air Bellow
Primary Material	High-Strength Rubber
Operating Medium	Compressed Air (Dry, Lubricated)
Temperature Range Standard	-30°C to +70°C
Pressure Range	2 - 7 bar
Mounting Type	Triple Convoluted
Application	Industrial Machinery, Vibration Isolation, Suspension Systems, Precision Equipment Platforms
Warranty	12 Months

Technical Data: M/31123

Medium Compressed: air

Operating Temperature: 30℃ ... 70℃

Operating Pressure: 0 ... 8 bar, 0 ... 116 psi

Port Size: G1/2

Nominal Diameter: 12"

Number Of Convolutions: 3

Stroke Length: 330 mm

Theoretical Force: 40600 N

Dimensions - Height: 350 mm

Dimensions - Length: 330 mm

Dimensions - Width: 330 mm

Weight: 6.9 kg

GUOMAT 3B12X3T Replaces These Air Springs

Continental ContiTech: FT 412-32 DS
Continental ContiTech: FT 412-32 1/2 M10
Continental ContiTech Order Number: 66339
Continental ContiTech: FT 412-32 CI G1/2
Continental ContiTech: FT 412-32 CI G1/2 M10
Continental ContiTech Bellow: FT412-32 / FT 412-32 / FT412-32DS
Firetsone Number: W01-R58-4062 / WO1-R58-4062
Firetsone Number: W01 R58 4062 / WO1 R58 4062
Firetsone Number: W01R584062 / WO1R584062
Firetsone Style: 12X3
Dunlop Pneuride: 12X3 / 12''X3
Dunlop Springride: SP1542 / SP 1542
Norgren: M/31123 / M 31123 / M31123

Common Applications of Air Springs

Industrial Equipment Vibration Control: Installed under precision machine tools, stamping presses, optical platforms, and other equipment to isolate external vibrations and vibrations generated by their own operation.
Height Adjustment Platforms: Used in automated production lines and testing benches, they precisely control the platform's height by adjusting air pressure.
Material Handling: Used as support elements to lift, lower, or maintain the height of loads, such as on assembly lines.
Load Support: Provides constant support force for loads of varying weights, compensating for weight variations.

Operation Angle Data Information Table

Norgren Models	NominalØ(inch)x convolutions	Height H(mm) at α =50°	Height H(mm) at α =10°	Height H(mm) at α =15°	Height H(mm) at α =20°	Height H(mm) at α =25°
M/31061	6X1	60-85	65-80	-	-	-
M/31062	6x2	-	90-155	95-150	105-145	110-135
M/31081	8x1	60-105	70-100	-	-	-
M/31082	8x2	-	90-210	100-205	110-200	115-190
M/31101	10x1	60-125	70-115	80-105	-	-
M/31102	10x2	-	95-260	115-250	135-245	155-235
M/31103	10x3	185-390	245-370	280-350	-	-
M/31121	12x1	60-125	75-115	90-105	-	-
M/31122	12x2	-	100-255	110-245	115-235	160-225
M/31123	12x3	200-375	230-340	250-310	-	-
M/31141	14 1/2x1	65-145	85-135	-	-	-
M/31142	14 1/2x2	-	105-300	115-290	135-275	170-260
M/31143	14 1/2x3	280-430	300-390	310-370	-	-
M/31162	16x2	-	125-350	150-340	185-325	225-310
M/31163	16x3	200-510	350-480	370-450	-	-
