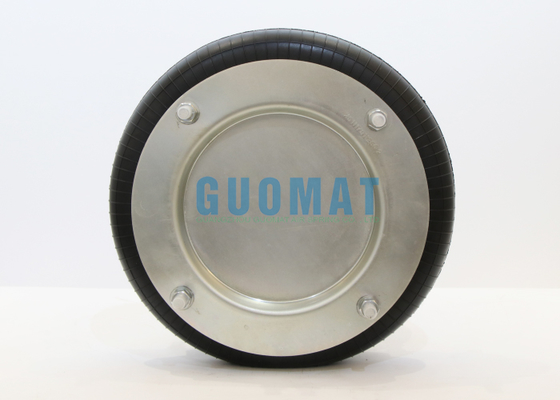

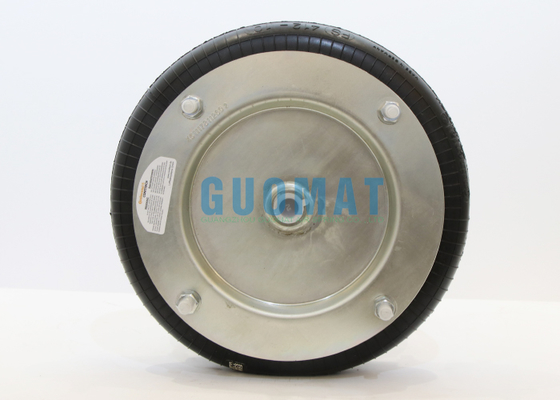

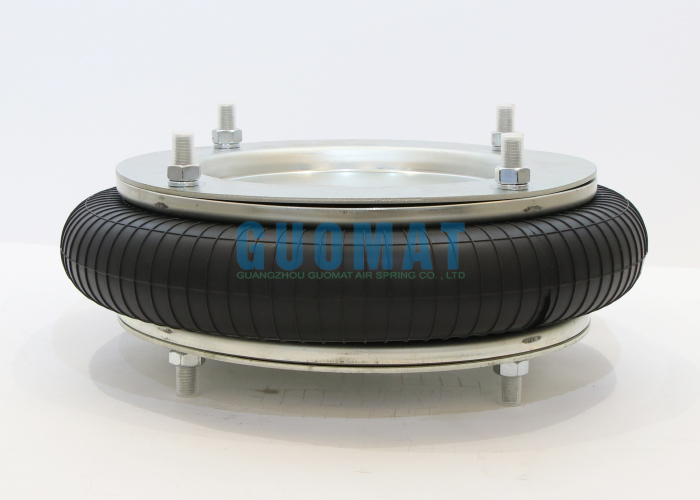

Original Contitech Flange Air Spring FS 412-10 Suspension Balloon Air Bag For Industrial Machine

Product Details:

Place of Origin:	Germany
Brand Name:	Contitech
Certification:	ISO/TS16949, ISO9001
Model Number:	FS 412-10

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$139.9-159.9/pc
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Name:	Contitech Air Spring	Condition:	Brand New
Warranty:	1 Year	Color:	Black
Sample Order:	Acceptable	Convolutions:	1
Type:	Flange Air Spring	Part Number:	Contitech FS 412-10
Highlight:	Contitech flange air spring , industrial machine air bag , FS 412-10 suspension balloon

Original Contitech Flange Air Spring FS 412-10 Suspension Balloon Air Bag For Industrial Machine

Original Contitech Flange Air Spring FS 412-10 Suspension Balloon Air Bag For Industrial Machine

Product Specifications

Attribute	Value
Model Name	Contitech Air Spring
Model Number	FS 412-10 DS
Brand	Contitech
Spring Material	Rubber And Steel
Condition	Brand New
Warranty	1 Year
Color	Black
Bellows No.	12''x1
Sample Order	Acceptable

Cross Reference Number

CONTITECH FS412-10

CONTITECH FS 412-10

CONTITECH FS412-10 DS

CONTITECH FS 412-10 DS

CONTITECH FS412-10 DS G1/2 M10

CONTITECH FS 412-10 DS G1/2 M10

FIRESTONE W01-R58-4060

FIRESTONE W01 R58 4060

FIRESTONE W01R584060

FIRESTONE WO1-R58-4060

FIRESTONE WO1 R58 4060

FIRESTONE WO1R584060

DUNLOP 12''X1 / 12X1

DUNLOP SP 1540

DUNLOP SP1540

NORGREN M/31121

NORGREN M 31121

NORGREN M31121

FS41210 Contitech Air Spring Technical Data

Cover Diameter: 260mm

Threaded Holes: M10

Distance Between Threaded Holes: 232mm

Air Holes: G1/2

Maximum External Diameter: 330mm

Maximum Height: 150mm

Minimum Height: 50mm

Single Convoluted Air Spring With Flange

Model	Min.design height(in)	Max. diameter(in)	installation space required(in)	max. recom mended stroke (in)	max. stroke (in)	force at p = 116 psi	connec tion part variant	distance D (in)
FS 22-3 DI CR 23/4x1	1.97	3.15	3.74	0.67	0.79	741.87	1	1.42
FS 44-5 DI CR 41/2x1	1.97	4.92	5.51	1.38	1.57	1551.18	2	3.66
FS 76-7 DI CR 6x1	1.97	6.89	7.48	1.77	2.17	3372.13	3	5
FS 76-7 DS CR 6x1	1.97	6.89	7.48	1.77	2.17	3372.13	4	5
FS 138-8 DS 8x1	1.97	9.06	9.65	2.56	3.15	5620.22	4	6.12
FS 210-10 DS 10x1	1.97	11.02	11.81	3.35	3.94	7598.54	4	7.13
FS 412-10 DS 12x1	1.97	12.99	13.78	3.35	3.94	11645.10	4	9.13
FS 614-13 DS 14x1	1.97	15.75	16.73	3.94	4.92	17400.21	4	11.12
FS 816-15 DS 16x1	1.97	16.54	17.52	4.92	5.51	18164.56	4	11.12
