GF 40/60-1 Convoluted Air Springs FS 22-3 DI CR Contitech Rubber Bellow Air Actuator

GF 40/60-1 Convoluted Air Springs FS 22-3 DI CR Contitech Rubber Bellow Air Actuator

GF 40/60-1 Convoluted Air Springs FS 22-3 DI CR Contitech Rubber Bellow Air Actuator
GF 40/60-1 Convoluted Air Springs FS 22-3 DI CR Contitech Rubber Bellow Air Actuator
GF 40/60-1 Convoluted Air Springs FS 22-3 DI CR Contitech Rubber Bellow Air Actuator
Product Details:
Place of Origin: GuangDong, China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: GF 40/60-1
Payment & Shipping Terms:
Minimum Order Quantity: 6pcs
Price: $89.9-119.9/pc
Packaging Details: Strong Carton Box Or As Customers Need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Model Name: Industrial Air Spring Bellow No: 2 3/4" X 1
Material: Rubber And Steel Warranty: 12 Months
Function: Reduce Shock Cross No.: Contitech FS 22-3
Dunlop: SP2906 Air Hole: G1/4
Highlight:

Contitech rubber air spring

,

Industrial air actuator bellow

,

FS 22-3 DI CR air spring

GF 40/60-1 Convoluted Air Springs FS 22-3 DI CR Contitech Rubber Bellow Air Actuator
GF 40/60-1 Convoluted Air Springs FS 22-3 DI CR Contitech Rubber Bellow Air Actuator
Product Specifications
  • Item: Single Convoluted Type Industrial Air Spring
  • Brand: GUOMAT
  • Model Number: GF 40/60-1
  • Bellows Number: 2.75X1
  • Warranty: 12 Months
  • Main Material: Rubber
  • Position: Industrial Machine
  • Function: Reduce Vibration, Cushioning
OE Manufacturer Numbers
  • DUNLOP PNEURIDE: 2 3/4" x 1
  • DUNLOP SPRINGRIDE: SP2906
  • DUNLOP SPRINGRIDE: SP 2906
  • CONTITECH: FS 22-3
  • CONTITECH: FS 22-3 DI
  • CONTITECH: FS 22-3 DI CR
  • CONTITECH: FS 22-3 DI G1/4
  • CONTITECH: FS 22-3 DI G1/4 M6
Technical Data
  • Air Fitting: G1/4
  • Blind Nut: M6X8mm
  • Center Distance Between Blind Nuts: 36mm
  • The Cover Plater Diameter: 78mm
  • Maximum Outer Diameter: 80mm
  • Maximum Height: 70mm
  • Minmum Height: 50mm
Vibration isolation - dynamic characteristic values
Pressure P bar 3 4 5 6 7 8 Vol V(I)
Force(Load) KN 0.9 1.2 1.5 1.7 2 2.3 0.084
Spring Rate C N/cm 840 1030 1230 1420 1620 1800
Natural Frequenz f0 Hz 4.9 4.7 4.6 4.5 4.5 4.4
Pneumatic application - static characteristic values Forcr F (kN)
Pressure P bar 3 4 5 6 7 8 Vol V(I)
height H(mm) 60 0.84 1.11 1.39 1.68 1.97 2.26 0.08
50 1.41 1.78 2.16 2.53 2.91 3.3 0.05

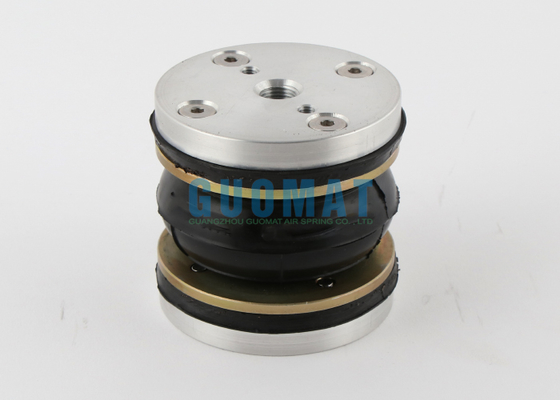

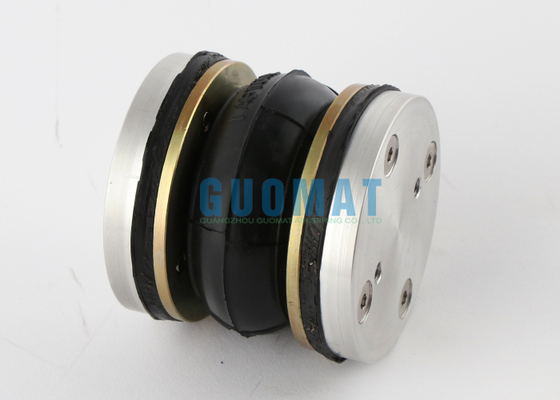

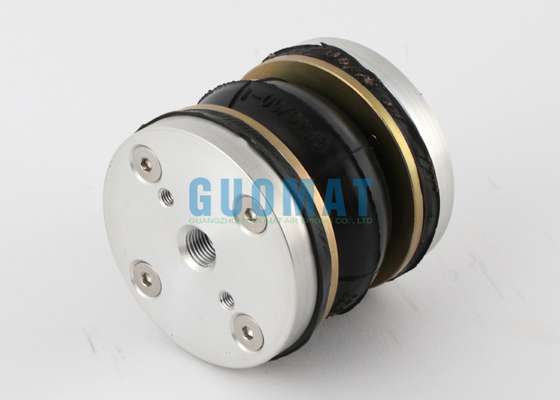

Product Images
GF 40/60-1 Convoluted Air Springs FS 22-3 DI CR Contitech Rubber Bellow Air Actuator 0 GF 40/60-1 Convoluted Air Springs FS 22-3 DI CR Contitech Rubber Bellow Air Actuator 1
