12X2 Rubber Air Bellows W01-358-7431 Firestone Industrial Air Spring Air Actuator

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2H7431

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$149.9-159.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Name:	Industrial Air Spring	Material:	Rubber + Steel
Warranty:	12 Months	Sample:	Available
Operation:	Gas-filled	Firestone:	W01-358-7431
Firestone Style:	Style 22	Other Name:	Lift Axle Air Springs
Highlight:	Firestone industrial air spring , 12x2 rubber air bellows , air actuator with warranty

12X2 Rubber Air Bellows W01-358-7431 Firestone Industrial Air Spring Air Actuator

Product Information

Manufacturer: GUOMAT
Application: Widely used in various industrial equipment and mechanical systems
Item Name: Double Convoluted Industrial Air Spring
Model Number: 2H7431
Bellows Number: 12X2
Material: Rubber and Steel
Warranty: 12 Months
Cross Number: W01-358-7431
Cross Number: W01 358 7431
Cross Number: W013587431
Cross Number: Style 22

Technical Data

Rubber bladder outer diameter: Ø301mm
Flange diameter: Ø250mm
Screw: 12-M8*1.25
Screw center distance: Ø228.5mm
Flange effective diameter: Ø183.05mm
Design height: 193mm

Assembly Height(in.)	Volume@ 100PSIG(in³.)	Pounds Force
Assembly Height(in.)	Volume@ 100PSIG(in³.)	@20PSIG	@40PSIG	@60PSIG	@80PSIG	@100PSIG
10.0	809	950	1810	2830	3810	4840
9.0	752	1170	2260	3460	4670	5880
8.0	685	1310	2590	3940	5350	6700
7.0	610	1430	2900	4390	5950	7450
6.0	529	1540	3170	4780	6470	8110
5.0	442	1640	3380	5100	6880	8630
4.0	349	1730	3520	5340	7180	9020

Style 22 Firestone Air Spring

W01-358-7180	Blind nuts,1/4 NPT
W01-358-7400	Blind nuts,1/4 NPT,bumper
W01-358-7184	Blind nuts,3/4 NPT
W01-358-7185	Blind nuts,3/4 NPT,bumper
W01-358-7431	Countersunk steel bead rings, 1^5/8 bolts, nuts, washers
W01-358-0226	Rubber bellows only

FAQ

① Regarding temperature:

Our standard industrial air springs have an operating temperature range of -40°C to +60°C.

② Regarding stroke:

Full stroke = maximum height - minimum height. The minimum compressed height is not the natural height, as the natural height can still be compressed.

③ Regarding minimum height:

The minimum height is adjusted based on air pressure. For example, some springs are at their lowest height at 1 air pressure. You'll need to purchase an air pressure gauge to test this. Different weights will result in different air pressures, but they can all be adjusted to their lowest height.

④ Regarding maximum load:

When fully loaded, the air spring will be compressed to its lowest height. Heavier weights will cause it to be compressed lower. At this time, when the air pressure is 7 kg, maximum air pressure + maximum load = minimum height. Air springs should never be used above their maximum load.

5 Regarding outer diameter:

The factory height is unsealed and requires inflation. The maximum outer diameter is generally a good reference. The factory outer diameter and height are not a guideline and will change as air pressure is applied.

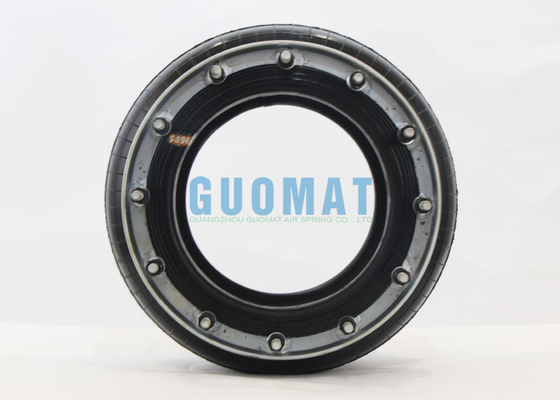

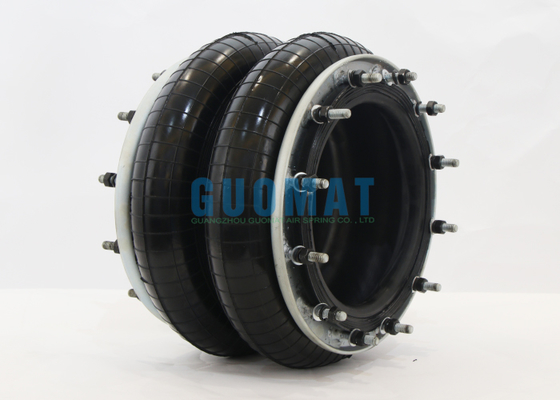

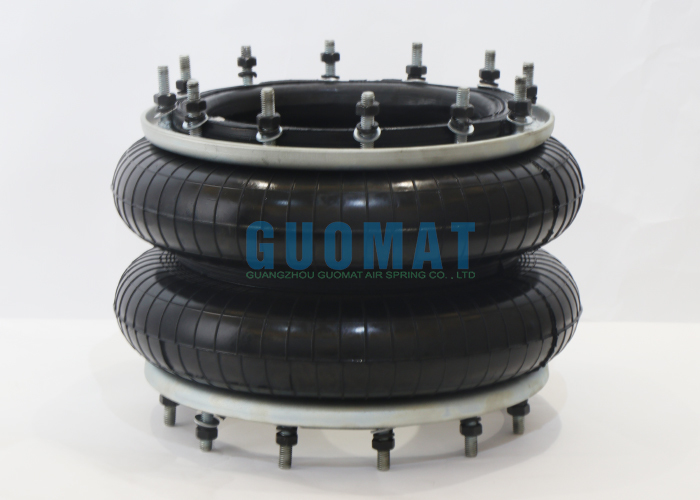

Product Image
