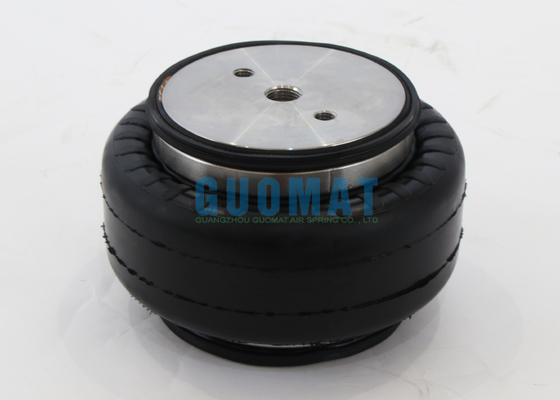

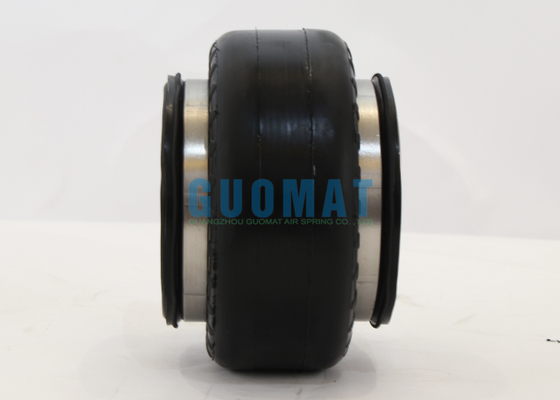

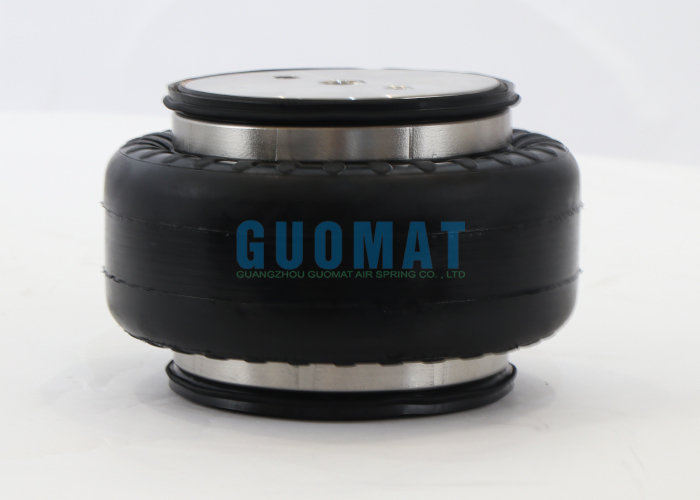

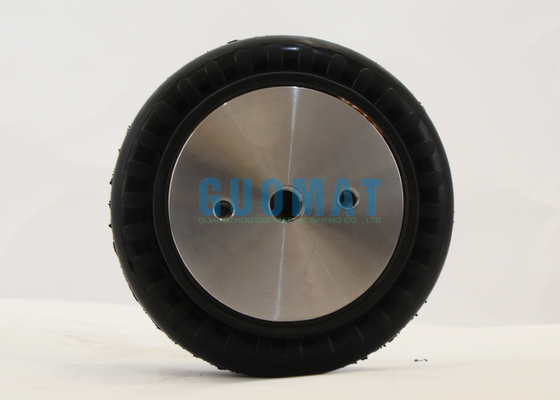

Goodyear Air Bellow 1B5-2 Super-Cushion Single Convoluted Air Spring 579-913-502

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B5510

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$49.9-59.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Model Name:	Goodyear Air Spring	Application:	Industrial Equipment
Warranty:	12 Months	Material:	Rubber + Steel
Sample:	Available	Goodyear:	1B5-2 579913502
Air Fitting:	1/4"BSP - On Center	Bumper:	No
Highlight:	Goodyear single convoluted air spring , Industrial air spring with super-cushion , Air bellow 1B5-2 replacement part

Goodyear Air Bellow 1B5-2 Super-Cushion Single Convoluted Air Spring 579-913-502

Product Specifications

Type: Industrial Air Spring

Brand: GUOMAT

Material: Rubber+Stainless Steel

Warranty: 12 Months

Model No.: 1B5510

OEM Numbers

Goodyear: 1B5-2

Goodyear: 1B 5-2

Goodyear: 579913502

Goodyear: 579 913 502

Goodyear: 579-913-502

Goodyear: 1B5-510

Goodyear: 1B 5-510

Goodyear: 1B5 510

Goodyear: 579 913 501

Goodyear: 579913501

Goodyear: 579-913-501

Goodyear: 579-912-510-00000

Technical Data

Air Fitting: 1/4" BSP - On Center

End Plate Dia.: 85mm

Mounting Holes: (2) 3/8"UNC

Mtg. Hole Spacing: 44.5mm

Max Height: 140mm

Min Height: 50mm

Max Outer Dia.: 150mm

Bumper: No

GUOMAT Air Spring For Industrial Machine

GUOMAT air springs are high-tech elastic bellows with metal end caps. Our standard air springs typically consist of four layers:

One calendered rubber inner liner
First fabric reinforcement layer
Second fabric reinforcement layer
One calendered rubber outer layer

For special requirements on the compressive strength of the air spring, please contact our technical department. We can also customize special models with four reinforced layers.

Air Spring Storage and Transportation Instructions

Avoid rough handling during transportation and loading and unloading.
Store in a dry, ventilated warehouse, away from direct sunlight.
Provide ample space at the installation location to avoid contact with oils, acids, bases, and sharp objects.
Avoid contact with sharp tools; mating parts should be smooth and free of sharp edges.

Admonition

Do not inflate components without any restraint. Components must be restrained by a suspension or other appropriate structure.

Do not exceed the recommended pressure in the design manual. Improper use or overinflation can cause component damage, performance impairment, or serious personal injury.

We also offer other Models of Air Springs

GUOMAT	Goodyear
1B7451	1B7-540
1B8550	1B8-550
1B8580	1B8-580
1B9202	1B9-202
1B12300	1B12-300
1B12313	1B12-313
2B7450	2B7-540
2B181	2B-181
2B9200	2B9-200
2B9216	2B9-216
2B9269	2B9-269
2B8150	2B8-150
2B8153	2B8-153
2B8550	2B8-550
2B12425	2B12-425
2B12311	2B12-311
2B12346	2B12-346
2B12440	2B12-440
2B12427	2B12-427
3B12301	3B12-301
