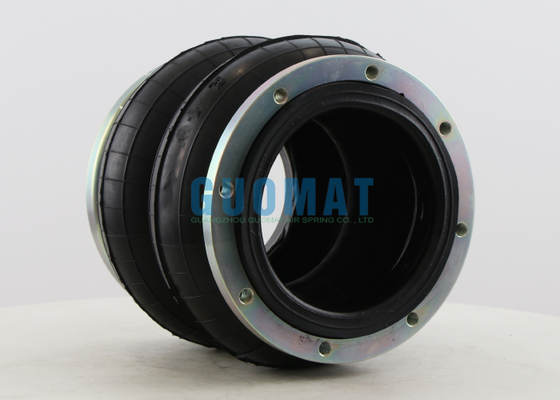

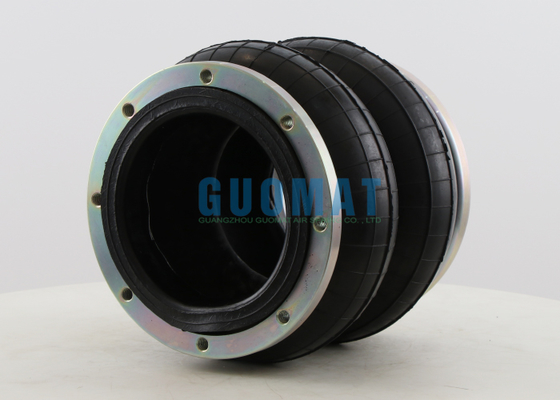

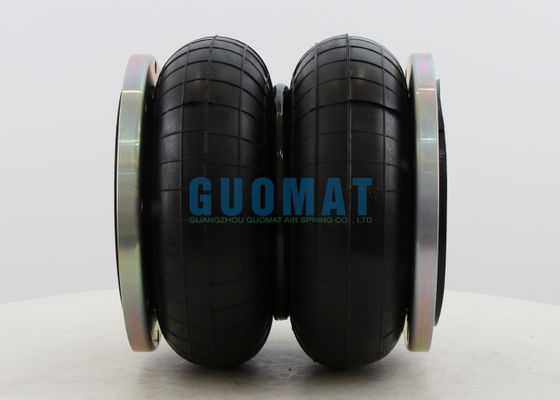

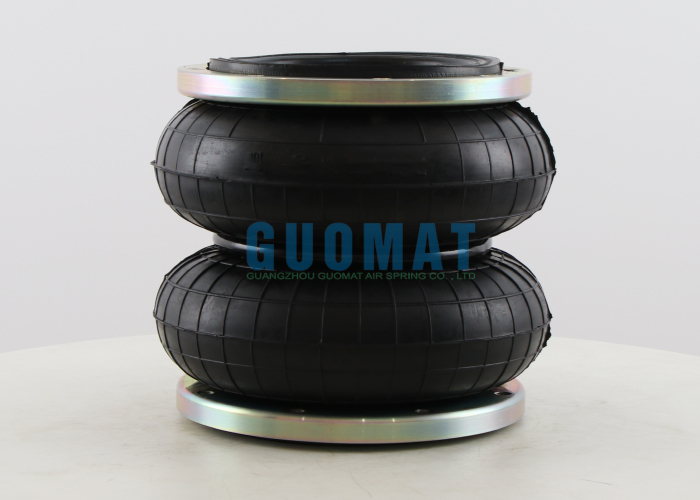

T272/N Industrial Bellows Actuator 272.2.190 GART Convoluted Air Spring 93740 CF Gomma

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	GUOMAT
Certification:	ISO/Ts16949:2009
Model Number:	2H250180

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$89.9-99.9/pc
Packaging Details:	Carton packaging or packaging according to customer requirements
Delivery Time:	5-8 Working Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	10,000 Per Week

Contact Now

Detailed Product Description

Type Name:	Convoluted Air Spring	Spring Material:	Natural Rubber
Quality:	100 % Tested	Warranty:	12 Months
GART No.:	T272/N 272.2.190	Color:	Black
Weight:	6.78KG	Connection Method:	Flange Connection
Highlight:	industrial bellows actuator air spring , GART convoluted air spring , industrial air spring with warranty

T272/N Industrial Bellows Actuator 272.2.190 GART Convoluted Air Spring 93740 CF Gomma

Product Information

GUOMAT Brand
GUOMAT Part Number: 2H250180
Material: Rubber+Steel
Warranty: 1 Year
Type: Double Convoluted Air Spring with Flange Ring
Delivery Time: 2-7 Working Days
Payment Methods: Bank Card, PayPal, Western Union
Shipping Methods: International Express, Air, Ocean, Railway, Truck

Cross Reference Number

GUOMAT Number: 2H250180

GART Number: T272/N

GART Number: T 272/N

GART Number: 272.2.190

MAGIRUS DEUTZ Number: 3422652

MAN Number: 81.43601.0023

TRAS CAR Number: 03003000090

ZORZI Number: 1006500

NOMEC Number: 99AMM0000024

CF GOMMA Number: 93740

AIRTECH Number: A2 250/K03

Technical Data

Specification	Value
Flange diameter	183mm
Distance between threaded holes	145mm
Threaded holes	M8
Number of threaded holes per side	8
Natural height	180mm
Maximum height	206mm
Minimum height	84mm

Air Spring Applications on Chassis Dynamometers

A chassis dynamometer, commonly known as a "rolling drum" or "drum test bench," is an indoor test device used to simulate vehicle road driving conditions. It is primarily used for vehicle performance testing, emissions testing, durability testing, and R&D. Air springs play a crucial role, particularly in passenger and commercial vehicle testing.

Accurate Road Simulation
Data-Driven: First, a prototype vehicle equipped with numerous sensors drives on a target road profile (such as rough asphalt, Belgian roads, or cobblestones), recording signals such as displacement and acceleration at the wheel center or suspension mounting points.

Laboratory Replication: On a chassis dynamometer, the wheels of the vehicle under test are placed on a drum. Air spring actuators are mounted at the four corners of the vehicle, supporting and connecting the vehicle's suspension system (typically via adapters to the wheel hubs).

Signal Reproduction: The control system uses the collected real-world road signals to send commands to the air spring actuators, causing them to move up and down precisely, thereby applying the exact same excitation forces to the vehicle's suspension as on a real road. This allows the vehicle's body to experience vibrations consistent with road travel, even when the vehicle is stationary.
Multi-Axis Excitation Capabilities
Advanced road simulators can perform not only vertical (Z) excitation, but also longitudinal (X) and lateral (Y) excitation. This is crucial for simulating full-vehicle response under conditions such as acceleration, braking, and cornering. Air spring systems utilize sophisticated multi-axis control algorithms to coordinate multiple actuators to achieve this complex, multi-dimensional motion.
Load and Height Adaptability
Load Support: Air springs can easily support vehicles of varying weights (from light passenger cars to heavy trucks) by adjusting the internal air pressure and providing the required support force.

Stance Maintenance: During testing, the system automatically adjusts the air pressure to maintain a preset, level "driving attitude," ensuring consistent and repeatable test conditions.
Improved Testing Efficiency and Safety
All-Weather and Repeatable: Laboratory testing is unrestricted by weather, traffic, or time constraints. The same road profile can be accurately repeated thousands of times, which is crucial for durability testing and reliability verification, significantly shortening R&D cycles.

Fail-safe: If any problem occurs during testing (such as vehicle failure or dynamometer malfunction), the system can be stopped immediately to ensure the safety of personnel and equipment, which is difficult to achieve in real-world road testing.

Emissions Testing: In emissions certification testing (such as the WLTC cycle), the combination of a chassis dynamometer and an air spring road simulator can replicate real-world driving vibrations while accurately collecting exhaust pollutants, ensuring test results are more realistic.
