1B5-520 Goodyear Suspension Rubber Bellows 1/4" Port Size Air Helper Springs Pneumatics

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B5520

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Warranty:	12 Months	Main Material:	Natural Rubber
Package:	Brown Carton Box	Other Name:	Steel Single Convoluted Air Bag
Goodyear:	1B5-520	Stroke Length:	4''
Application:	For Mineral Sample Pulverizers	Compressed Height:	1.8''
Highlight:	Goodyear suspension rubber bellows , 1/4 port size air helper springs , industrial air spring with warranty

1B5-520 Goodyear Suspension Rubber Bellows 1/4" Port Size Air Helper Springs Pneumatics

Product Description

Item	Industrial Air Spring	Brand	GUOMAT
Model	1B5520	Spring Type	Air Spring
Spring Material	Rubber+Steel	Type	Single Convoluted

Replace The Following Part Number

GUOMAT Number: 1B5520
Goodyear Number: 1B5-520
Goodyear Number: 1B 5-520
Goodyear Number: 1B5 520
Goodyear Number: 1B5-521
Goodyear Number: 1B 5-521
Goodyear Number: 1B5 521
Goodyear Number: 578-92-9-056
Goodyear Number: 578 92 9 056
Goodyear Number: 578929056
Enidine Lnc. Number: YI-1B5-520
Enidine Lnc. Number: YI 1B5 520
Enidine Lnc. Number: YI-1B5 520

Single Convoluted Air Spring Technical Data: 1B5-520

6 1/2" Maximum Diameter
4" Stroke Length
1.8" Compressed Height
1/4" Port Size
5'' Recommended Isolator Design Height [Max]
W/O Bumpers
1 3/4'' Blind Tap Spacing
NPT Air Inlet Type
3.4'' End Plate Diameter
3'' Stroke Length [Max]
3 1/2'' Recommended Isolator Design Height [Min]
1.4 LB Weight

Design Height (in)	Load(Ib)	Pressure(PSIG)	Spring Rate(Ib/in)	Natural Frequency
5.0	250	24	235	182 \| 3.03
	550	53	430	166 \| 2.77
	900	83	630	159 \| 2.65
	1000	93	700	157 \| 2.62
4.75	250	22	210	171 \| 2.85
	550	49	395	158 \| 2.63
	900	76	575	151 \| 2.52
	1000	85	635	150 \| 2.50
3.5	250	16	185	159 \| 2.65
	550	36	305	140 \| 2.33
	900	57	450	134 \| 2.23
	1000	65	500	133 \| 2.22
	1250	83	630	131 \| 2.18

Air Spring Applications in Industrial Washing Machines

When an industrial washing machine is operating, especially during the high-speed spin cycle, it generates enormous, unbalanced centrifugal forces, causing severe vibration. If left uncontrolled, this vibration can:

Damage the equipment and the building structure.
Generate loud noise.
Be transmitted to the floor or ground, impacting other equipment and even the building's safety.

In industrial washing machines, four or more air springs are typically installed between the base and foundation of the washing machine, completely suspending the entire washing tub and drive system.

When the spin cycle starts, the enormous unbalanced forces attempt to rock the washing machine, acting on the air springs.

Air springs absorb and cushion this energy through their own compression and expansion, with only a very small portion of the vibration being transmitted through the soft airbags.

Overall Advantages:

Adjustability: By varying the inflation pressure, the machine can adapt to varying loads (e.g., varying linen weights), maintaining optimal vibration isolation and leveling.
Long Life: Compared to metal springs, air springs have a longer fatigue life at the same stroke.
Excellent performance: It makes it possible to achieve high speed and high dehydration factor of industrial washing machines, thereby greatly improving dehydration efficiency and production capacity.

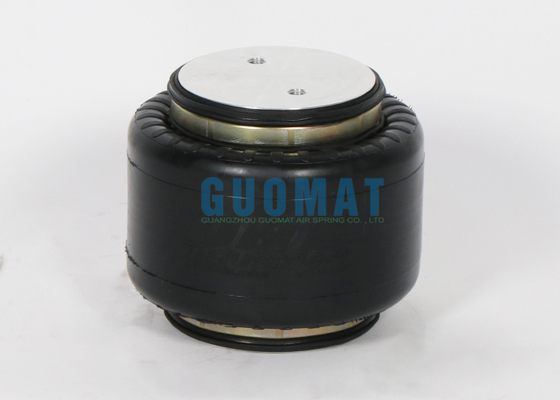

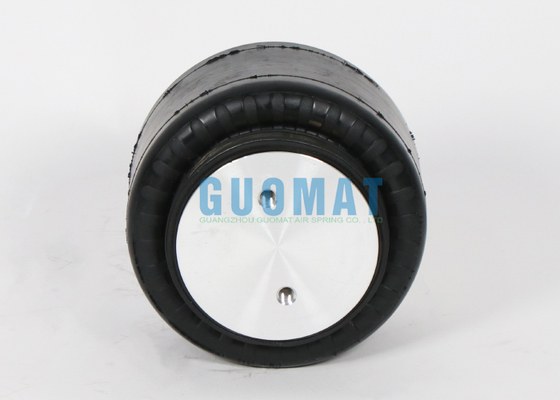

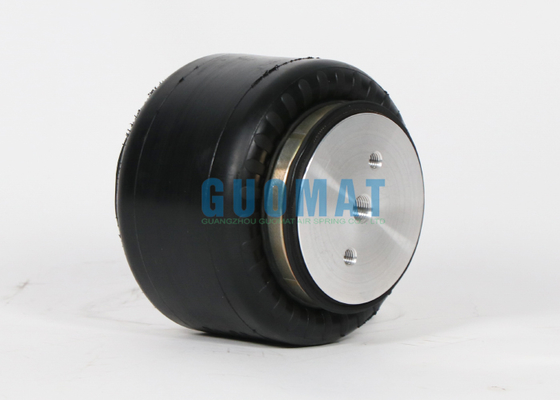

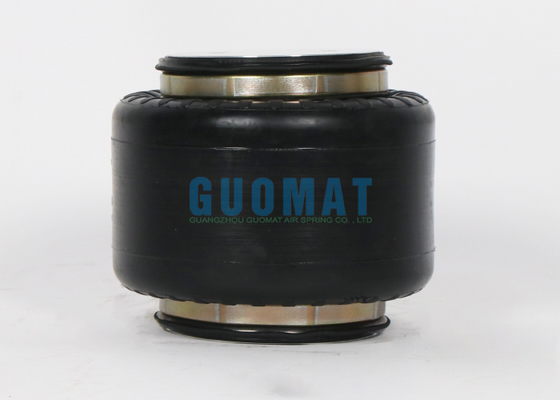

Product Pictures
