F-600-2 GUOMAT Rubber Air Spring Replace S-600-2R/SC-600-2R YOKOHAMA Rubber Air Bellows

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	F-600-2

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$119.9/pc-$159.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Spring Material:	Natural Rubber	Warranty:	12 Months Warranty
Color:	Black	Package:	Brown Carton Box
YOKOHAMA:	S-600-2R	Height:	102mm
Convolutions:	2	Other Name:	YOKOHAMA Air Spring
Highlight:	GUOMAT rubber air spring replacement , YOKOHAMA rubber air bellows , F-600-2 air spring replacement

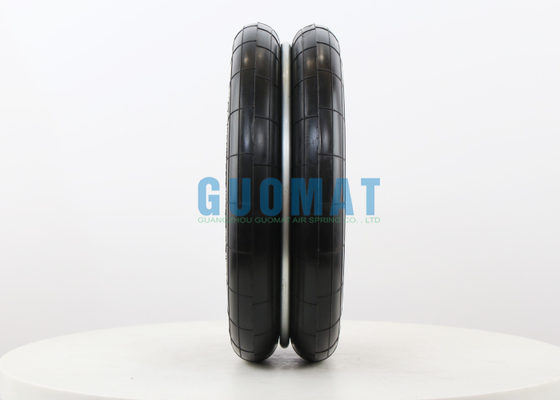

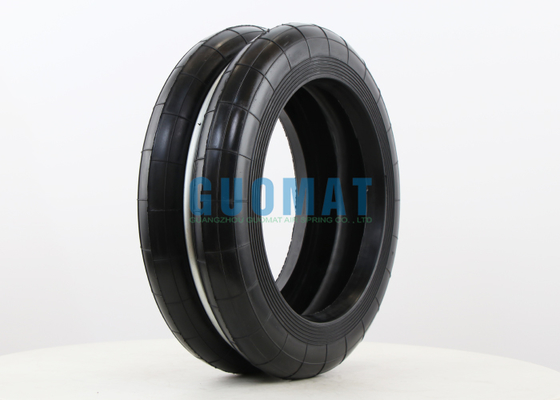

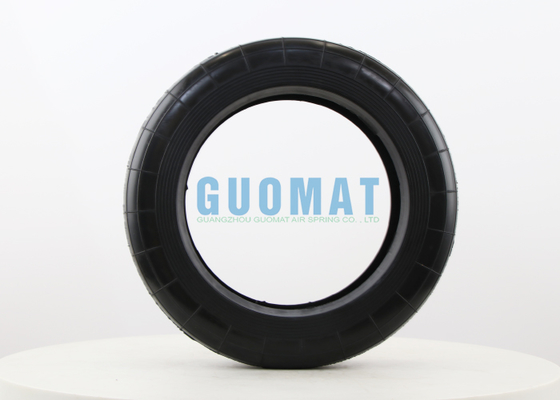

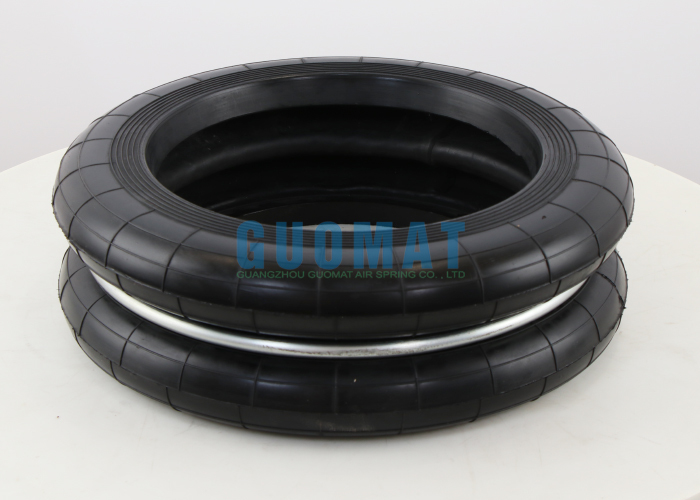

F-600-2 GUOMAT Rubber Air Spring Replace S-600-2R/SC-600-2R YOKOHAMA Rubber Air Bellows

Product Description

Item: Rubber Air Spring

Brand: GUOMAT

Model Number: F-600-2

Convolutions: 2

Color: Black

The Rubber Bellow Natural Height: 102mm

Max. Height: 172mm

Min.Height: 57mm

YOKOHAMA Air Spring Compatible Models

S6002
S 600 2
S-600-2

S6002R
S 600 2R
S-600-2R

SC6002R
SC 600 2R
SC-600-2R

Technical Specifications

Model Size	YOKOHAMA	Design Height(mm)	Max Height (mm)	Min Height (mm)	Common Maximum Travel (mm)	Compression Max Outside Diameter (mm)	Effective Area (cm²)	Volume(L)	Load(kN)
F-600-5	S-600-5	276	456	156	±113	660	2830	76.6	138.3
F-600-4	S-600-4	218	363	123	±90	660	2830	59.9	138.3
F-600-3	S-600-3	160	270	90	±68	660	2830	43.2	138.3
F-600-2	S-600-2	102	172	57	±45	660	2830	26.3	138.3
F-600-1	S-600-1	72	122	40	±30	700	2830	19.0	138.3

What is a Punch Press Air Spring?

A punch press air spring is an elastic element used inside a stamping die. It's essentially a sealed chamber filled with high-pressure gas.

Its core operating principle: It uses compressed, high-pressure gas to store energy and provide a controllable, powerful spring force.

Main Functions in a Punch Press Air Spring

Providing Pressing/Ejecting Force: During the stamping process, an air spring is installed in the upper or lower die. When the punch press slide drives the upper die downward, the air spring is compressed, increasing the gas pressure within it, thereby providing a continuous and powerful counteracting force on the press plate or stripper plate.
Balancing Die Weight: For large, heavy upper dies, air springs provide an upward support force, counterbalancing the die's own weight.
Providing Adjustable Spring Force: By adjusting the gas pressure, the spring force can be easily varied to accommodate sheet metal of varying thicknesses and materials.
Ensuring Smooth Movement: The force provided by air springs remains relatively constant throughout the entire stroke, resulting in smoother slide movement.
