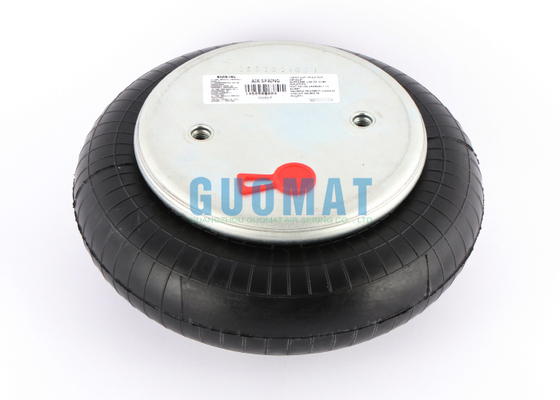

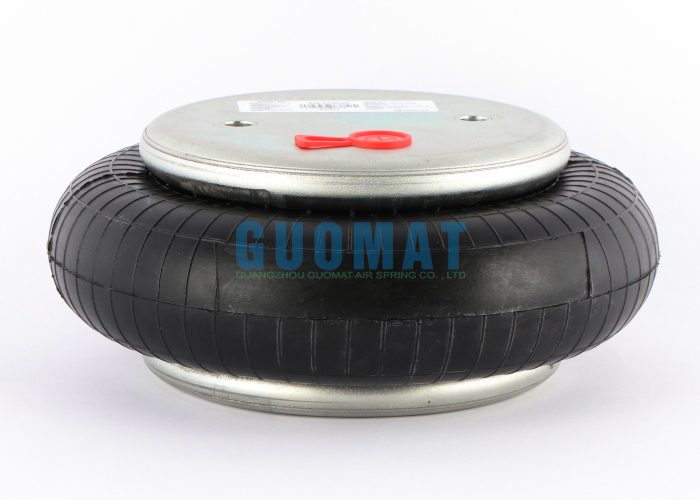

EB-145-60 FESTO Single Convoluted Air Spring G1/8 Air Fitting Industrial Air Balloon
Product Description
| Item |
Air Spring/Shock Absorber Spring/Air Bellows |
| Brand |
GUOMAT/Neutral |
| Model Number |
1B145-60 |
| OEM Number |
FESTO EB-145-60 |
| Material |
Rubber And Steel |
| Warranty |
1 Year |
| MOQ |
1 PCS If We Have Stock |
| Package |
- Bubble Bag And Brown Carton
- Customer Require Packaging
- Normal Exported Package
|
| Delivery Time |
2-8 Working Days |
| Payment |
T/T, L/C, PayPal, Western Union |
| After Service |
- Examination Before Shipment
- Follow Up The Customers' Feedback
|
| Main products we sell |
Air Spring, Convoluted Air Spring, Industrial Air Springs, Air Suspension Spring, Air Compressor, Air Valve, Bus Rubber Bellows, Truck & Trailer Air Bags, Cabin Air Shock, Electric Water Pump |
Technical Data
Size: 145
Required mounting diameter: 160 mm
Stroke: 60 mm
Maximum extended height: 110 mm
Maximum tilt angle: 20 deg
Maximum offset: 10 mm
Minimum installation height: 50 mm
Operating mode: Single-acting
Working pressure: 0 bar...8 bar
Ambient temperature: -40 °C...70 °C
Reset force: 120 N
Product weight: 900 g
Pneumatic connection: G1/8
Housing material: Steel
| Size |
Stroke(mm) |
Part No. Type |
| 145 |
60 |
36486 EB-145-60 |
| 165 |
65 |
36487 EB-165-65 |
| 215 |
80 |
36488 EB-215-80 |
| 250 |
85 |
36489 EB-250-85 |
| 325 |
95 |
193788 EB-325-95 |
| 385 |
115 |
193789 EB-385-115 |
About Rubber Air Spring
A rubber air spring is a flexible bellows device made of a composite of rubber and fiber materials. It does not directly provide rigid support or load bearing. Instead, it is filled with compressed gas from an external source (such as an air compressor), leveraging the gas pressure to achieve elastic deformation and energy transfer. Depending on the stroke length requirements of the application, this type of spring can be designed with a single to three-curve structure, and in special cases, with four, five, or even more. Multiple air springs can also be connected in series to meet more complex operating conditions.
This device exhibits typical nonlinear stiffness characteristics, with its elastic modulus adaptively adjusting with external load. This ensures that the system's natural frequency remains essentially stable under varying load conditions, ensuring consistent vibration isolation performance. Furthermore, rubber air springs excel at absorbing high-frequency vibration and isolating noise, and can withstand both axial and radial loads. Adjusting the internal air pressure allows for flexible adjustment of the spring's load capacity, adapting to a wide range of application scenarios.
Within the rated stroke range, adjusting the air pressure allows for precise control of the spring's stiffness, height, internal volume, and load capacity. These parameters respond smoothly and periodically to changes in external load, enabling flexible force transmission, precise stroke adjustment, and effective suppression of amplitude and vibration loads. Combined with an additional air chamber and integrated solenoid valves and automatic air pumps, automatic system control is possible.
Due to these performance advantages, rubber air springs are widely used in a wide range of applications requiring precise stroke control, vibration damping, and isolation, including vehicles, the automotive industry, papermaking machinery, lifting platforms, presses, vibrating conveying equipment, screening systems, pneumatic hammers, vibration test benches, and foundry equipment.
The Pictures of Air Spring/Air Actuator/Air Ballon
