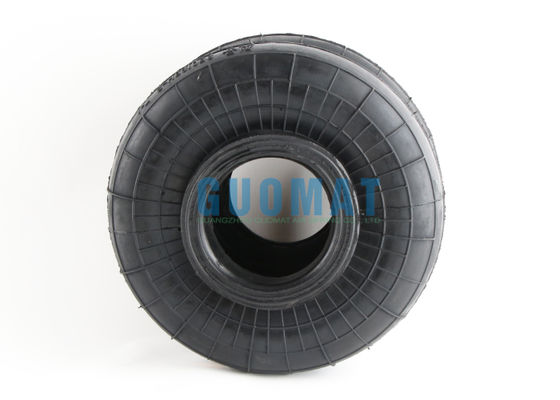

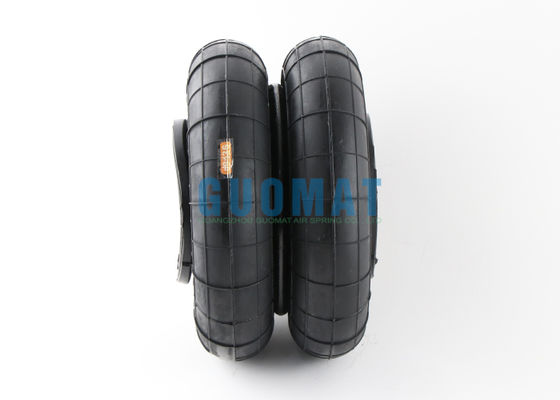

250185H-2 Double Convoluted Air Bellows 180mm Natural Height Rubber Air Spring

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	250185H-2

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$79.9-89.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Natural Rubber	Warranty:	1 Year Warranty
Sample:	Available	Operation:	Gas-Filled
Application:	Electronic Equipment/Large Drying Machines	Convolutions:	2
Natural Height:	180mm	Color:	Black
Highlight:	180mm natural height air spring , double convoluted rubber air bellow , industrial air spring with warranty

250185H-2 Double Convoluted Air Bellows 180mm Natural Height Rubber Air Spring

Product Specifications

Brand: GUOMAT
Model Number: 250185H-2
Convolutions: 2 (Double)
Type: Rubber Air Spring
Material: Rubber Bellows
Warranty: 1 Year Warranty

Technical Data

Natural Height: 180mm

Maximum Height: 206mm

Minimum Height: 84mm

Stroke: 122mm

Effective Diameter: 185mm

Maximum Outside Diameter: 270mm

Mounting Flange Data

Flange Ring Diameter: 183mm

Threaded Hole Center Distance: 145mm

Threaded Holes: 8-M10 Top

Threaded Holes: 8-M10 Bottom

Air Spring Technical Performance Parameter Table

Carrying Capacity	Inflation Pressure	MPa							Volume at 0.7MPa (dm3)
Carrying Capacity	Inflation Pressure	0.2	0.3	0.4	0.5	0.6	0.7	0.8	Volume at 0.7MPa (dm3)
84 (mm)	Installation	755	1125	1484	1868	2239	2610	2980	2.18
126 (mm)		668	1015	1360	1694	2041	2388	2746	3.71
168 (mm)		530	848	1144	1426	1735	2030	2327	5.06
180 (mm)		520	795	1073	1345	1627	1904	2195	5.28
206 (mm)		412	638	857	1089	1321	1554	1798	5.90
230 (mm)		312	494	676	857	1045	1243	1446	6.60
