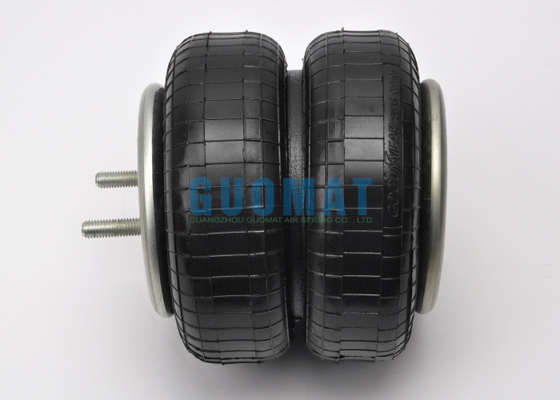

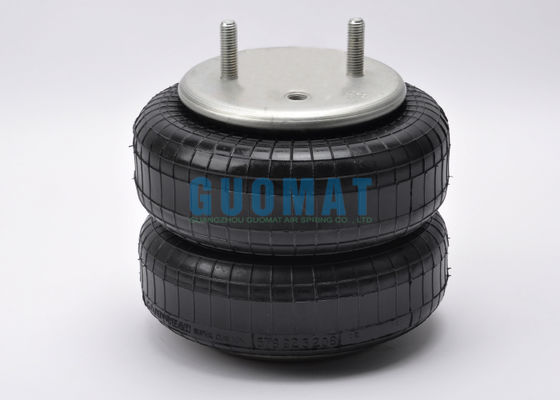

2B9-250 Goodyear Original Goodyear Air Spring 578-92-3-206 Industrial Rubber Air Bellows

Product Details:

Place of Origin:	Mexico
Brand Name:	Goodyear
Certification:	ISO/TS16949:2009
Model Number:	2B9-250

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$159.9-199.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Goodyear Air Spring	Spring Material:	Rubber + Steel
Warranty Period:	1 Year	Package:	Carton/Cartons
Rubber Type:	High-Quality	Goodyear Number:	2B9-250
Type:	Double Convoluted Type	Bellows Number:	578923206
Highlight:	Goodyear Air Spring industrial rubber , Goodyear Air Spring 578-92-3-206 , Goodyear Air Bellows with warranty

2B9-250 Goodyear Original Goodyear Air Spring 578-92-3-206 Industrial Rubber Air Bellows

Product Description
Product Type:Air Spring

Model Number: 2B9-250

Bellows Number: 578-92-3-206
Manufacturer Warranty:12 Months
Material:Natural Rubber
Color:Black
Package:Strong Carton
MOQ:1 pcs
Quality:High- Quality
Position:Industrial Machinery and Equipment

Manufacturer Part Number
FIRESTONE W01-358-6943 / W01 358 6943 / W013586943

CONTITECH FD 200-25 426 / FD200-25 426 / FD200-25426

CONTITECH 161332

GOODYEAR 2B9-250 / 2B 9-250 / 2B9 250

GOODYEAR 578923206 / 578 92 3 206 / 578-92-3-206

TRIANGLE 6332/4426

WATSON&CHALIN AS-0041

NEWAY/SAF 90557237

V-STEER II (LIFT BAG)

VAN RADEN

RIDEWELL 1003586943C

TUTHILL 6352

Technical Data

Top Plate Hole/Stud Qty: 2
Top Plate Dia: 6.4
Top Plate C to C Diameter: 3.5
Bottom Plate Hole Stud Qyt: 2
Bottom Plate Dia: 6.4
Bottom Plate C to C Diameter: 3.5
Min Height: 3.5
Max Height: 12.2

How to choose an air spring?
Since air springs can be divided into different types according to categories, how to choose air springs is also an important issue in the industrial industry. Before choosing an air spring, you must first understand the specific vibration frequency of the equipment and the specific needs of the equipment. When installing an air spring, you should consider whether to deal with active shock absorption or passive shock absorption, and fully consider the model parameters of the equipment before you can choose the right one. air spring. The air spring shock absorber plays an important role in the operation of the equipment. If the air spring is not used, the machine equipment will generate strong vibration during the operation, which will easily cause damage to the machine and people's health.So we have to choose the appropriate air spring according to these contents.

Double Convoluted Goodyear Air Spring

Bellows NO.	Part NO.	Top Cover NO.	Bottom Cover NO.
578-23-8-329	2B14-469	ASA-92-8-352	ASA-92-6-016
578-91-3-310	2B12-305	ASA-92-8-026	ASA-92-6-002
578-91-3-310	2B12-317	ASA-92-8-004	ASA-92-6-004
578-91-3-310	2B12-324	ASA-92-8-017	ASA-92-6-002
578-92-3-202	2B9-200	ASA-92-8-016	ASA-92-6-010
578-92-3-202	2B9-201	ASA-92-8-016	ASA-92-3-010
578-92-3-202	2B9-206	ASA-92-8-040	ASA-92-6-010
578-92-3-202	2B9-210	ASA-92-8-040	ASA-92-6-010
578-92-3-202	2B9-216	ASA-92-8-060	ASA-92-6-010
578-92-3-202	2B9-225	ASA-92-8-117	ASA-92-6-004
578-92-3-202	2B9-230	ASA-92-8-113	ASA-92-6-044
578-92-3-202	2B9-240	ASB-92-9-151	ASB-92-9-151
578-92-3-202	2B9-244	ASA-92-8-172	ASA-92-6-044
578-92-3-202	2B9-245	ASA-92-8-113	ASA-92-6-108
