| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 3B0263 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $79.9-89.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Product Name: | Industrial Air Spring | Warranty: | 12 Months |
|---|---|---|---|
| Material: | Rubber And Steel | Other Name: | Rubber Air Balloon |
| Pressure Ability: | 0.2-0.8 M Pa | Firestone: | W01-095-0263 |
| Contitech: | FT 530-35 849 | Weight: | 20.3KG |
| Highlight: | Rubber air spring replacement,Contitech air suspension spring,FT 530-35 air balloon |
||
Rubber Air Balloon W01-095-0263 Suspension Air Spring Replacement Contitech FT 530-35 849
Product Description
Item Name: Suspension Air Spring
Brand: GUOMAT
GUOMAT NO.: 3B0263
Material: Rubber and Galvanizing
Warranty: 1 Year
MOQ: 1 pcs
Car Model: Universal
Application: Car Air Suspension
Function: Lifting
Delivery Time: 3-7 Working Days
Payment: T/T,Western Union, Paypal
Shipment: FedEx,UPS,DHL,EMS...
Technical Data
| Top Cover Plate Diameter:287mm |
| Bottom Cover Plate Diameter:287mm |
| Gas Hole / Air inlet:M22X1.5 |
| Rubber Bellows MAX Diameter:405mm |
| Rubber Bellows Natural Diameter:350mm |
| The Natural Height: 330mm |
| Top Cover Plate Screw (Nut) Tooth:4XM8X1.25 |
| Bottom Cover Plate Screw (Nut) Tooth:4XM8X1.25 |
| Screw Center Distance of Top Cover Plate:158.8mm |
| Screw Center Distance of Bottom Cover Plate:158.8mm |
| Screw And Gas Hole Distance of Top Cover Plate:79.4mm |
OEM Number / Cross Reference Number
Firestone Number: W01-095-0263
Firestone Number: W01 095 0263
Firestone Number: W010950263
Firestone Style: 333
Contitech Number: FT530-35 849
Contitech Number: FT 530-35 849
Goodyear Number: 578328630
Goodyear Number: 578 3 2 8630
Goodyear Number: 578338335
Goodyear Number: 578 3 3 8335
Contitech Triple Convoluted Air Spring
| Assembly No. | Bellows No. | Order No. |
| FT 330-29 413 | FT 330-29 | 64560 |
| FT 330-29 430 | FT 330-29 | 64561 |
| FT 330-29 431 | FT 330-29 | 64562 |
| FT 330-29 432 | FT 330-29 | 64563 |
| FT 330-29 434 | FT 330-29 | 64285 |
| FT 330-29 466 | FT 330-29 | 64565 |
| FT 330-29 469 | FT 330-29 | 64566 |
| FT 330-29 498 | FT 330-29 | 6457 |
| FT 330-29 503 | FT 330-29 | 64568 |
| FT 330-29 520 | FT 330-29 | 64570 |
| FT 330-29 525 | FT 330-29 | 64571 |
| FT 330-29 546 | FT 330-29 | 64572 |
| FT 330-29 547 | FT 330-29 | 64573 |
| FT 330-29 548 | FT 330-29 | 64574 |
| FT 330-29 554 | FT 330-29 | 66522 |
| FT 330-29 703 | FT 330-29 | 64648 |
| FT 330-29 714 | FT 330-29 | 67904 |
| FT 330-29 722 | FT 330-29 | 64709 |
| FT 330-29 723 | FT 330-29 | 64710 |
| FT 330-29 773 | FT 330-29 | 65978 |
| FT 330-29 790 | FT 330-29 | 69747 |
| FT 330-29 793 | FT 330-29 | 70418 |
| FT 330-29 821 | FT 330-29 | 70123 |
| FT 330-29 827 | FT 330-29 | 70419 |
| FT 330-29 832 | FT 330-29 | 70420 |
| FT 330-29 874 | FT 330-29 | 69630 |
| FT 330-29 875 | FT 330-29 | 69641 |
| FT 330-29 909 | FT 330-29 | 602419 |
| FT 330-29 975 | FT 330-29 | 74321 |

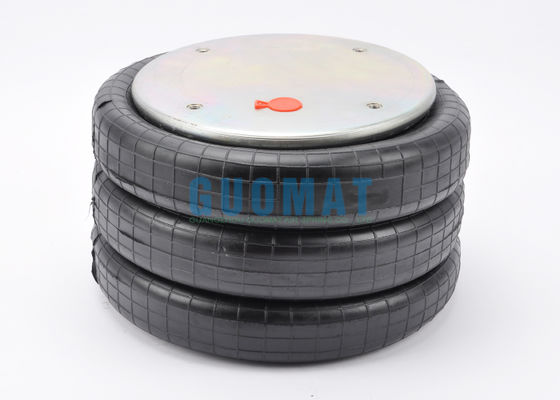

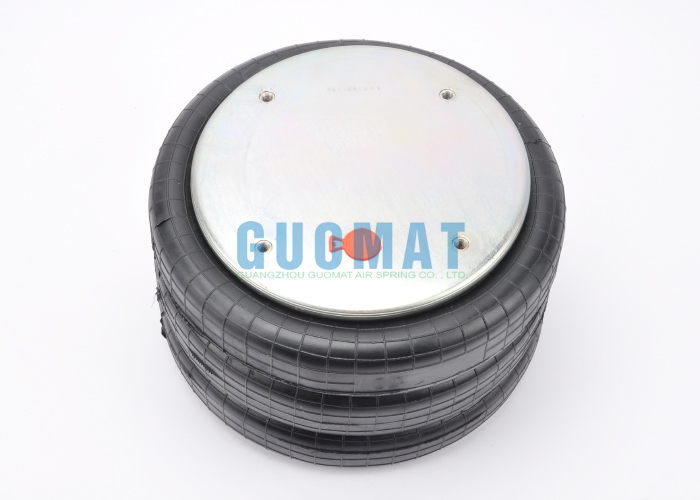

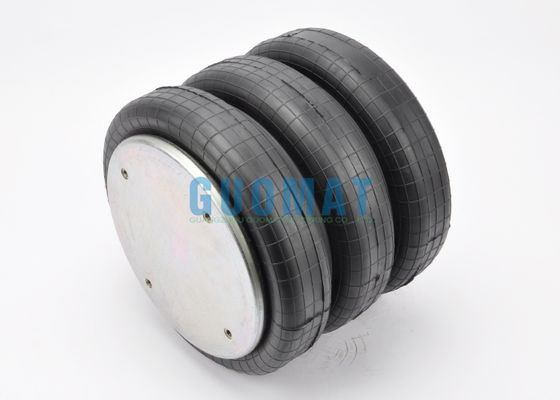

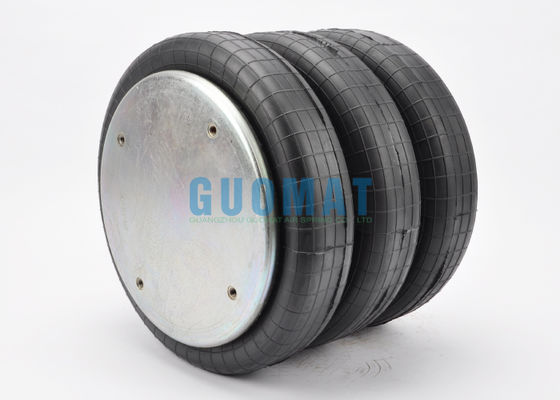

The Real Picture
![]()
