Replace W01-M58-7710 Firestone Air Spring 233C Style Convoluted Air Pillow With Flange

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	GUOMAT
Certification:	ISO/Ts16949:2009
Model Number:	2H330254

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$129.9-139.9/pc
Packaging Details:	Carton packaging or packaging according to customer requirements
Delivery Time:	5-8 Working Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	10,000 Per Week

Contact Now

Detailed Product Description

Type Name:	Convoluted Air Spring	Spring Material:	Natural Rubber
Quality:	100 % Tested	Warranty:	12 Months
Color:	Black	Firestone:	W01-M58-7710
Convolutions:	2	Height:	254mm
Highlight:	Firestone air spring replacement , W01-M58-7710 air pillow , 233C style convoluted air spring

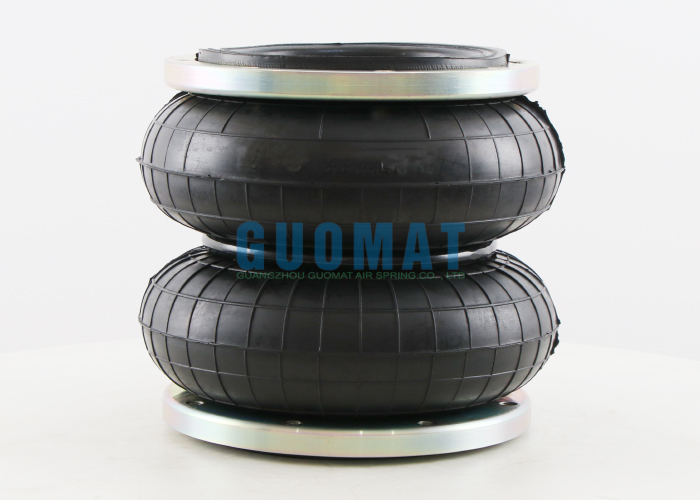

Replace W01-M58-7710 Firestone Air Spring 233C Style Convoluted Air Pillow With Flange

Product Information

GUOMAT Brand
GUOMAT Part Number: 2H330254
Material: Rubber+Steel
Warranty: 1 Year
Type: Double Convoluted Air Spring with Flange Ring
Delivery Time: 2-7 Working Days
Payment Methods: Bank Card, PayPal, Western Union
Shipping Methods: International Express, Air, Ocean, Railway, Truck

OE Manufacturer Number

Manufacturer: FIRESTONE

Part Number: W01-M58-7710

Manufacturer: FIRESTONE

Part Number: W01M587710

Manufacturer: FIRESTONE

Part Number: W01 M58 7710

Manufacturer: CARDI

Part Number: 58053300

Manufacturer: VIBERTI

Part Number: 128 118 102

Manufacturer: ICEVO

Part Number: 8194819

Manufacturer: KASSBOHRER

Part Number: 4.731.005.000

Technical Data

W01-M58-7710

MIN.HT: 200MM

OD: 358MM

SCREW SPECS: M8X1.0

QTY/SIDE: 12PCS

FD: 308MM

SCREW C/C: 286MM

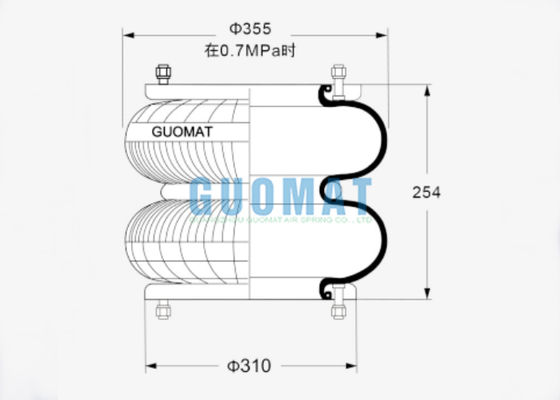

GUOMAT 2H330254

Maximum outer diameter: 355mm

Natural height: 254mm

Cover diameter: 310mm

Effective diameter: 230mm

Minimum compressed height: 88mm

Maximum height: 290mm

Stroke: 202mm

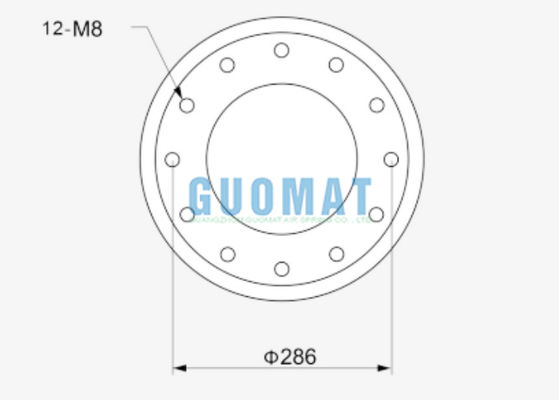

Screw: M8

Screw diameter center distance: 286mm

Carrying Capacity	Inflation Pressure		0.2	0.3	0.4	0.5	0.6	0.7	0.8	Volume at 0.7MPa
	Installtion		MPa	MPa	MPa	MPa	MPa	MPa	MPa	(dm3)
	90	(mm)	1703	2471	3312	4105	4921	5762	6555	4.56
	156	(mm)	1295	1938	2615	3293	3969	4633	5343	8.96
	222	(mm)	981	1495	2010	2525	3037	3573	4117	12.58
	254	(mm)	861	1317	1756	2222	2696	3166	3651	14.24
	295	(mm)	601	937	1279	1991	1991	2360	2749	15.52
	321	(mm)	395	653	909	1190	1471	1773	2098	16.56
Stiffness and frequency at design height	Vertical Stiffness	(Kg/cm)	128	181	232	283	332	389	438
	Natural Frequency	HZ	1.93	1.85	1.82	1.79	1.76	1.75	1.73
	Natural Frequency	com	116	111	109	107	106	105	104
