FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator

FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator

  • FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator
  • FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator
  • FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator
FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator
Product Details:
Place of Origin: GuangDong, China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 1B53011
Payment & Shipping Terms:
Minimum Order Quantity: 6PCS
Price: $49.9-59.9/pc
Packaging Details: Strong Carton Box Or As Customers Need
Delivery Time: 2-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Product Name: Air Spring/Airbag/Air Suspension Warranty: 1 Year
Material: Rubber + Steel Packing: Brown Carton
Condition: 100% Brand-new OEM: Contitech FS530-11
Weight: 5.9KG Color: Black
Highlight:

Contitech industrial air spring

,

51mm-175mm stroke air actuator

,

convolution air actuator with warranty

FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator

FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator is a high-performance air suspension component designed for industrial applications.

Product Details
  • Type: Single Convoluted Air Suspension Airbag
  • Model Number: 1B53011
  • Condition: Brand New
  • Material: Rubber + Steel
  • Warranty: 12 Months
  • Delivery Time: About 2-8 working days after receiving payment
Airbag Parameters
Cover Plate
Top Cover Plate Diameter 287mm
Bottom Cover Plate Diameter 287mm
Air Inlet
Options G1/4; G3/4; G1
Blind Nut
Screw Center Distance Of Top Cover Plate 158.8mm
Screw Center Distance Of Bottom Cover Plate 158.8mm
Screw And Gas Hole Diameter Of Top Cover Plate 79.4mm
Top Cover Plate Screw (Nut) Tooth 4XM8X1.25
Bottom Cover Plate Screw (Nut) Tooth 4XM8X1.25
Rubber Bellow
Rubber Bellow MAX Diameter 385mm
The Working Stroke MAX 175mm to MIN 51mm
Maximum Height 175mm
Minimum Height 51mm
Compression Height 124mm
OEM Numbers
  • Contitech FS530-11
  • Contitech FS 530-11
  • Contitech FS530-11 CI
  • Contitech FS 530-11 CI
Vibration Isolation - Dynamic Characteristic Values
Pressure P bar 3 4 5 6 7 8 Vol V(I)
Force(Load) KN 15.2 20.1 26.5 31.6 36.9 42.2 10
Spring Rate N/mm 397 500 608 710 813 915
Natural Frequenz f0 Hz 2.6 2.5 2.4 2.4 2.3 2.3
Pressure P bar 3 4 5 6 7 8 Vol V(I)
height H(mm) 150 14.3 19 25 30 35 40 10
130 17.8 23.7 30.5 36.3 42.7 49.1 9.4
110 20.6 27.4 34.8 41.6 49 56 8.4
90 22.8 30 38.1 46 53.9 61.6 7.1
70 24.3 32 41.2 48.8 57.4 65.5 5.3
We Proudly Offer the Highest Quality Replacement Air Springs that Exceed OEM Requirements.

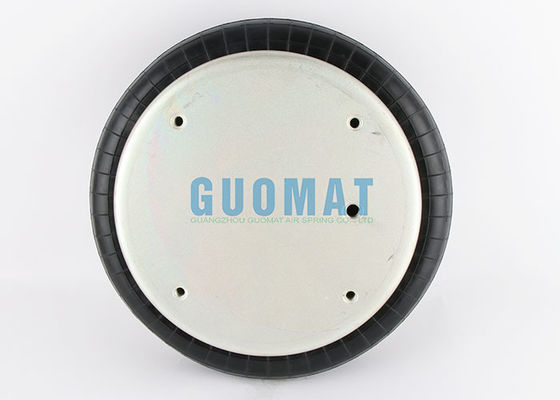

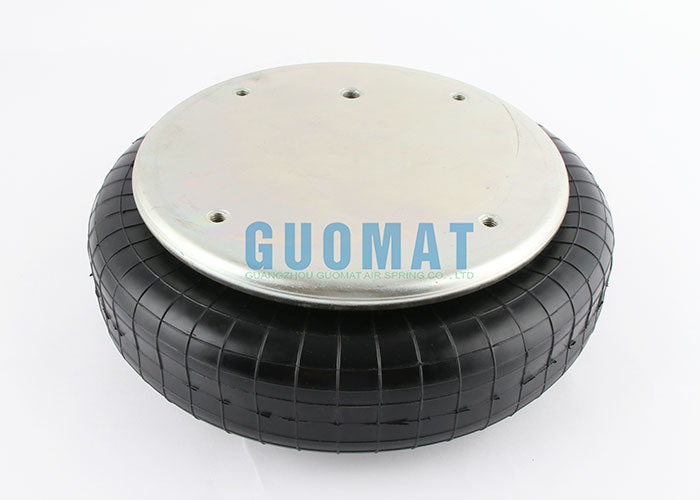

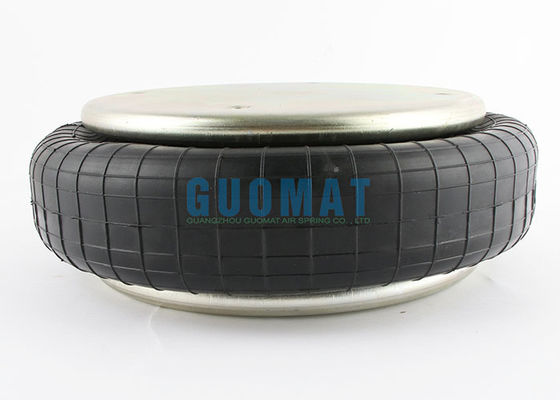

FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator 0 FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator 1
