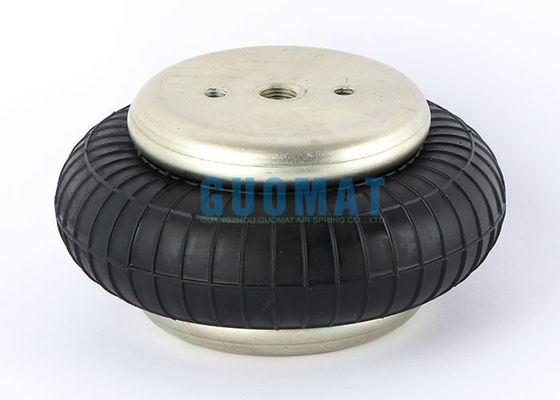

SP 1B 05 Phoenix Air Spring FS70-7 Contitech Rubber Air Shock 2681015000 For Soil Turning Equipment

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B7070

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$49.9-59.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Application:	Soil Turning Equipment	Warranty:	12 Months
Material:	Rubber + Steel	Sample:	Available
Function:	Shock Absorption	Festo:	EB-165-65
Air Fitting:	G1/4	B-osch:	822419002
Highlight:	Contitech rubber air spring , Phoenix air shock FS70-7 , industrial air spring for soil equipment

SP 1B 05 Phoenix Air Spring FS70-7 Contitech Rubber Air Shock 2681015000 For Soil Turning Equipment

Product Description

Type	Industrial Air Spring
Brand	GUOMAT
Model No.	1B7070

Refer Numbers

ContiTech: Fs 70-7 2681015000

ContiTech: FS 70-7 CI 2681015000

ContiTech: FS 70-7 1/4 M8

ContiTech: FS 70-7 G1/4 M8

ContiTech: FS 70-7 Cl G1/4

ContiTech: FS 70-7 CI G1/4 M8

ContiTech: FS 70-7 CI / FS70-7CI / FS707CI

ContiTech Bellow: FS 70-7 / FS70-7 / FS707

Firestone No.: w01-M58-6155 / WO1M58 6155 / WO1M586

Firestone Style: 131

Enidine: YM-FS 70-7-0160 / YMFS 70-7-0160 / YMFS70-7-

Enidine: YM-FS 70-7 CI G1/4 M8

Enidine: Yl-FS 70-7-731 / YFS 70-7-731 / YIFS70-7-731

Enidine: Yl-FS 70-7 CI1/4NPT 3/8-16UNC

Goodyear: 1B6-833 / 1B6833 / 1B6833

Goodyear FlexNo.: 579-913-510 / 579 913 510 / 579913510

Enidine: Yl-1B6-833 / Y11B6 833 / YI1B6833

Phoenix: SP1B05 / SP1B05

B-osch: 822419002

Festo: EB-165-65 / EB165 65 / EB16565

Weforma: WBE 200-E1 / WBE200-E1 / WBE200E1

Technical Data

Maximum height	115mm
Minimum height	50mm
Air hole	G1/4
Threaded hole	M8x1.25
Normal outer diameter	150mm
Maximum outer diameter	165mm
Distance between threaded holes	44.5
Cover diameter	105mm

Industrial Air Spring Applications in Soil-Tilling Equipment

Automatic Leveling and Depth Control: Air springs provide constant support force to working parts (such as coulters). When encountering uneven ground, they quickly expand and contract to compensate, maintaining a consistent tillage depth and ensuring effective tillage.
Shock Absorption and Cushioning: When equipment strikes rocks or hard soil, air springs effectively absorb impact energy, significantly reducing vibration transmitted to the frame, protecting the mechanical structure and extending service life.
Overload Protection: When encountering an insurmountable obstacle, the air springs compress, lifting the working part and preventing fracture, providing safety protection.
Improved Operator Comfort: Reduced vibration also means less vibration transmitted to the cab, improving the operator's working environment and reducing fatigue.
