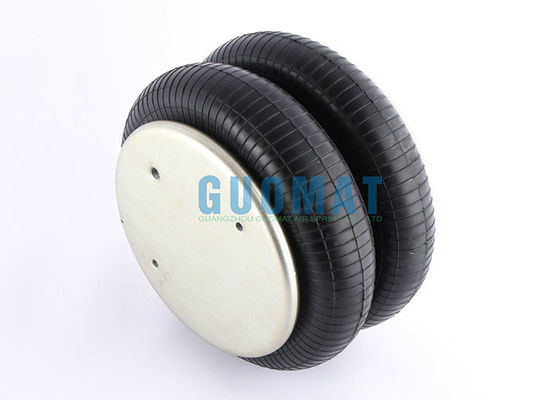

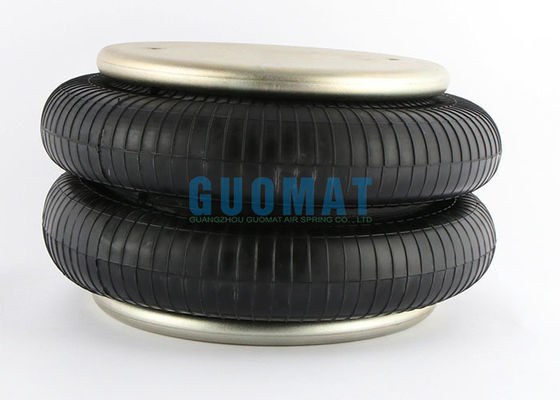

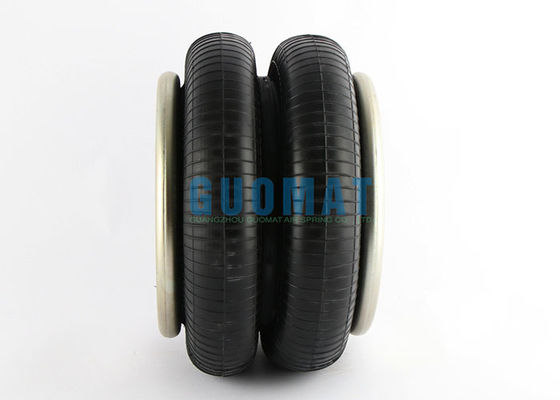

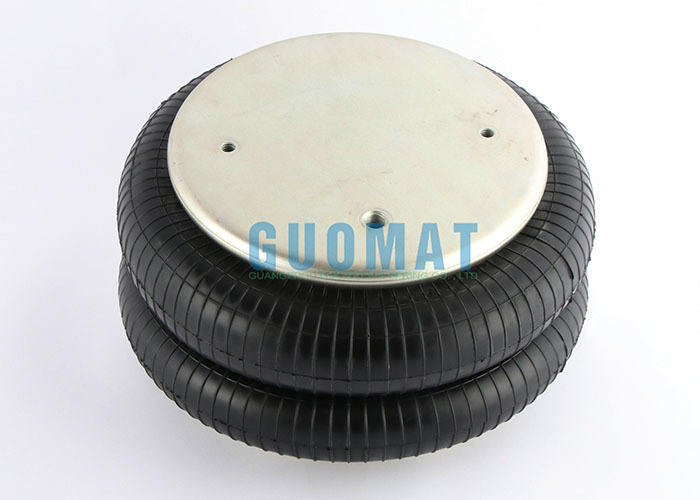

SP 2B 22R Double Convoluted Bellow Air Bags FD 330-22 Contitech Industrial Air Spring

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B6330M12-G3/4

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Natural Rubber+Steel	Product Warranty:	12 Months
Carrying Range:	50-700KG	Color:	Black
Convoluted Type:	Double Convoluted	Function:	Shock Absorption
Phoenix:	SP 2B 22R	Contitech:	FD 330-22
Highlight:	double convoluted air spring , industrial air spring bellow , Contitech FD 330-22 air bag

SP 2B 22R Double Convoluted Bellow Air Bags FD 330-22 Contitech Industrial Air Spring

Product Description

Product Name: Industrial Air Spring

GUOMAT Number: 2B6330M12-G3/4

Factory Warranty: 12 Months

Material: Rubber and Steel

Payment: L/C;T/T;Western Union;PayPal

Packing: Strong Carton Box or As Customers Need

Delivery Time: 2-8 working days after receive your payment

Shipping: By air; By sea; By express(DHL,UPS,Fedex,EMS...)

Technical Parameters

Top Cover Plate Diameter: 231mm

Bottom Cover Plate Diameter: 231mm

Gas Hole / Air inlet: G3/4

Rubber Bellows Natural Diameter: 300mm

The Natural Height: 181mm

Top Cover Plate Screw (Nut) Tooth: 2XM12

Bottom Cover Plate Screw (Nut) Tooth: 2XM12

Screw Center Distance of Top Cover Plate: 157mm

Center Distance Between Screw and Air Hole: 73mm

Screw Center Distance of Bottom Cover Plate: 157mm

OE Manufacture

Description	Air Hole	Center Distance Between Screw and Air Hole	OEM Number
Rubber bellow only			Firestone Style 22 Firestone No.W01-358-0226 Firestone 095.0037 Firestone 095.0082 Pirelli T22 Goodyear 556-23-8-210 Goodyear578-92-3-309 Phoenix 2B22R
Top/bottom plate M8 (Blind nuts)	G1	66mm	Contitech FD 330-22 Contitech 2682 060000 Weforma WBE 500-E1 Bosch 822419044
Top/bottom plate M8 (Blind nuts)	G1/2	66mm
Top/bottom plate M12 (Blind nuts)	H3/4	73mm	Phoenix SP2B22R
Top/bottom plate M10 (Blind nuts)	RP1/4	73mm	Dunlop(FR) 12''x2 S 12201
Top/bottom plate M8 (Blind nuts)	RP1/4	73mm	Contitech FD 330-22/60031 Phoenix SP2B22R Weforma WBE 500-E2 Bosch 822419064 Festo EB-325-215
Top/bottom plate M8 (Blind nuts)	G1/4	66mm	Weforma WBE 500-E2
Top/bottom plate M8 (Blind nuts)	M22X1.5	73mm	Firestone 22T3 095.0257 Goodyear 556 2 2 8442
