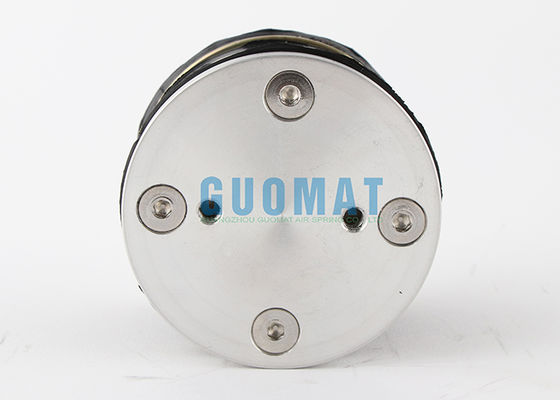

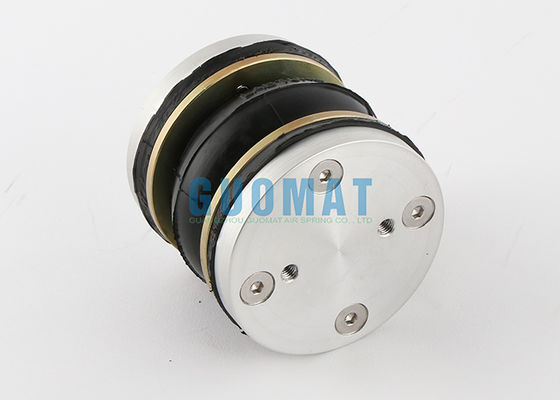

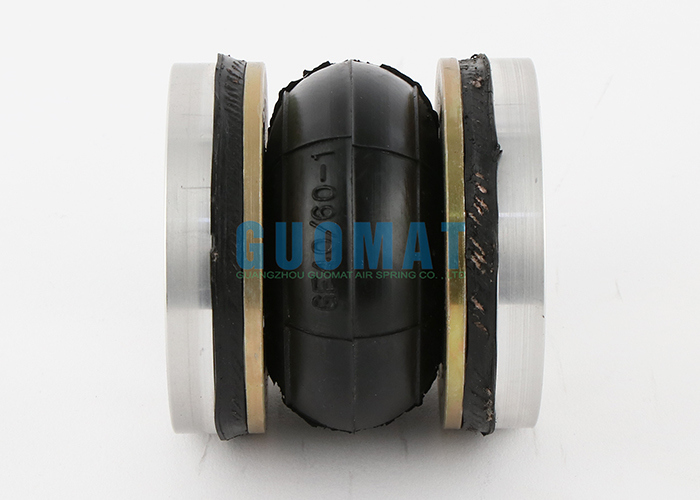

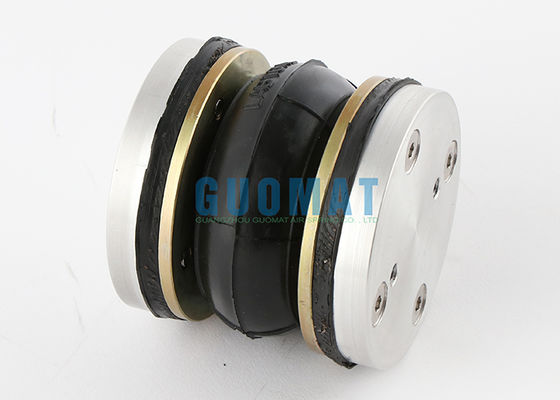

GF40/60-1 GUOMAT Single Convoluted Air Spring FS 22-3 DI CR Contitech Air Actuator

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	GF40/60-1

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Item Number:	GF40/60-1	Material:	Rubber And Steel
Style:	Single Convoluted Air Spring	Part:	Air Spring/Air Lift/Air Suspension
Sample:	Available \| Customized Request	OEM Number:	Contitech FS22-3
Type:	Gas-filled	Color:	Black
Highlight:	Contitech truck air spring , FD 120-17 dust removal equipment , industrial suspension air spring

GF40/60-1 GUOMAT Single Convoluted Air Spring FS 22-3 DI CR Contitech Air Actuator

Product Specification

Bottom Cover Plate
Bottom Plate Center To Center Diameter	60mm
Bottom Plate Diameter	80mm
Bottom Plate Hole Quantity	2
Bottom Plate Type	Steel
Top Cover Plate
Top Plate Center To Center Diameter	60mm
Top Plate Diameter	80mm
Top Plate Hole Quantity	3
Top Plate Type	Steel
Rubber Bellow
Bellow Maximum Diameter	80mm
Height	60mm
Spring Type	Single Convoluted
Air Hole/Air Inlet/Gas Hole/Gas Fitting
Air Inlet	G1/4
Nut/Blind Nuts Type	M6

OE Manufacturer Number

Contitech FS22-3

Contitech FS 22-3

Contitech FS22-3 DI

Contitech FS 22-3 DI

Contitech FS22-3 DI CR

Contitech FS 22-3 DI CR

Summary of the Application Advantages of GF40/60-1 Air Springs

Superior Vibration Isolation: Low natural frequency effectively isolates low- and mid-frequency vibrations, a feature unmatched by steel springs.

Height Adjustability: The height and level of the equipment can be easily adjusted by inflating and deflating the air spring to adapt to different working conditions and loads.

Variable Stiffness Characteristics: Its stiffness changes with the load, allowing the system's natural frequency to remain relatively stable under varying loads, resulting in better vibration isolation.

High Load Capacity: A single air spring can withstand loads ranging from hundreds of kilograms to tens of tons.

Long Lifespan and Simple Maintenance: Compared to traditional metal springs and rubber vibration dampers, it has a longer lifespan and lower noise when used correctly.

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
