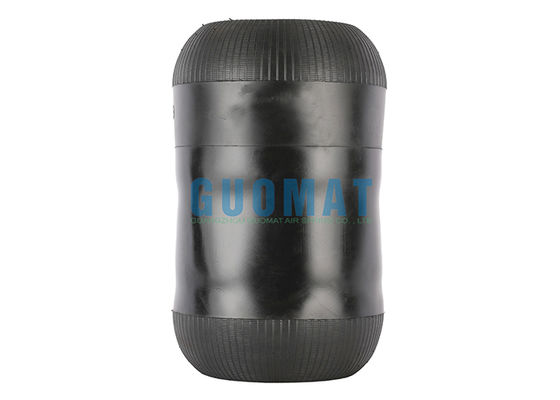

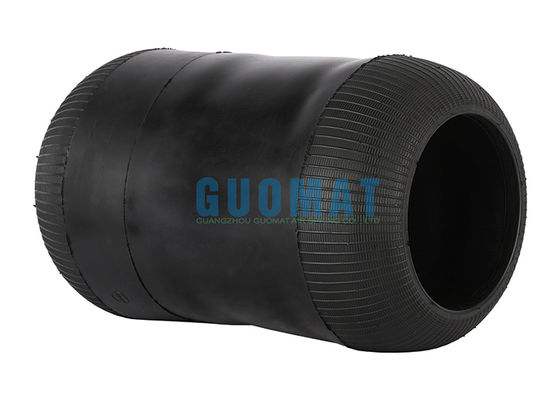

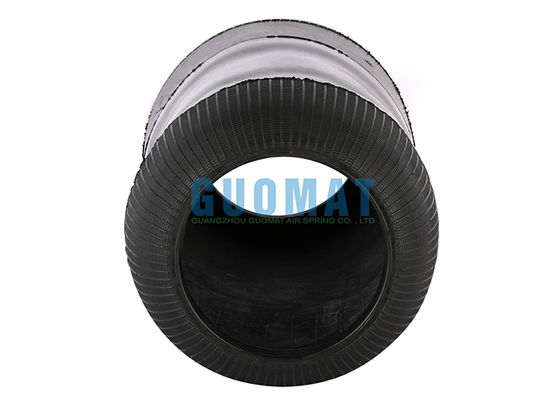

W01-095-0453 Firestone Bus Suspension Air Spring 1R4U-395-260 Rubber Air Bellows

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	0453N

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	$19-29/pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Main Material:	Natural Rubber	Warranty:	12 Months
Fitment Type:	Direct Replacement	Application:	For Bus
OEM No.:	W01-095-0453	Dunlop UK:	PNP31095
Height:	388mm	Weight:	1.85KG
Highlight:	Firestone bus air spring , Rubber air bellows suspension , Bus suspension air bellow

W01-095-0453 Firestone Bus Suspension Air Spring 1R4U-395-260 Rubber Air Bellows

Product Description
Model Name: Air Bellow, Air Bag
Material: High Quality Rubber
Warranty: 12 Months
MOQ: 10 Pieces
Type: Air Rubber Bellow
Function: Reduce Shock
Quality: 100% Tested
Air Type: Gas Filled
Dimension: OEM/original standard size

Cross Reference Information

FIRETSONE: W01-095-0453 / W01 095 0453 / W010950453
FIRETSONE: 1R4V395-260
DUNLOP UK: PNP 31095
DUNLOPUK: PNP 31095
AIRTECH: 31277
V OLVO: 3.111.277
V OLVO: 3.112.775.291

Technical Data

Weight:

1.85kg

Design height:

260mm

Deflection (Height min):

160mm

Deflection (Height max):

420mm

Measurement d max:

325mm

Space required:

350mm

Loading cap.at 5.0bar:

Loading cap.at 7.0bar:

37.2kN

GUOMAT ROLL AIR SPRING

GUOMAT	CONTITECH	FIRESTONE	GOODYEAR	PHOENIX
644N	644N	W01-095-0118	8017	1E21
661N	661N	W01-095-0021	8018	1E25
662N	662N	W01-095-0207	9007	1E32
673N	673N	W01-095-0198	9051	1F21A
701N	701N	W01-095-0205	9006	1E26-1
706N	706N
713N	713N
715N		W01-095-0087	8015	1F25
716N		W01-095-0145		1F26B-1
719N	719N	W01-095-0192	8118	1F32B
720N		W01-095-0195	9008	1F21
727N		W01-095-0191	8117	1F32A
728N		W01-095-0419		1F32A-2
737N		W01-095-0211		1F26
746N
757N		W01-095-0212		1F26C
762N		W01-095-0190	9010	1F32
768N		W01-095-0213
769N		W01-095-0204	8053	1E18
775N
782N		W01-095-0197	9013	1E21D
786N		W01-095-0436		1F14
