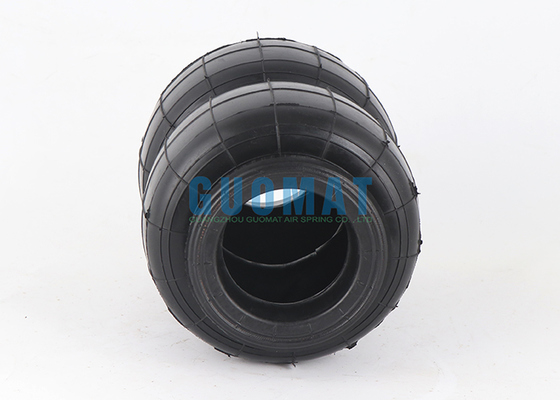

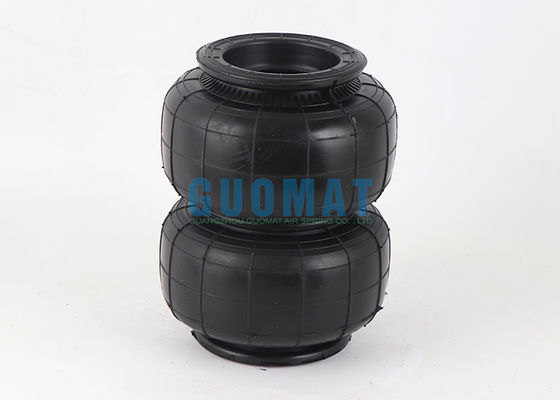

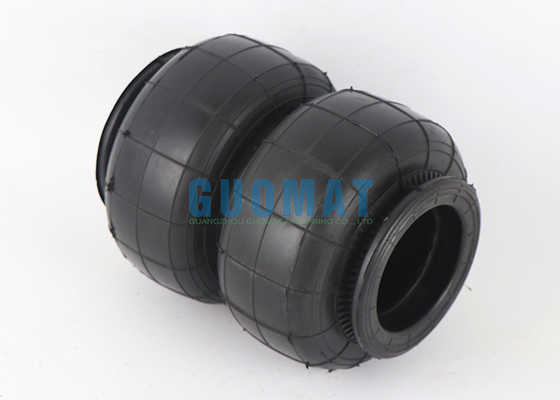

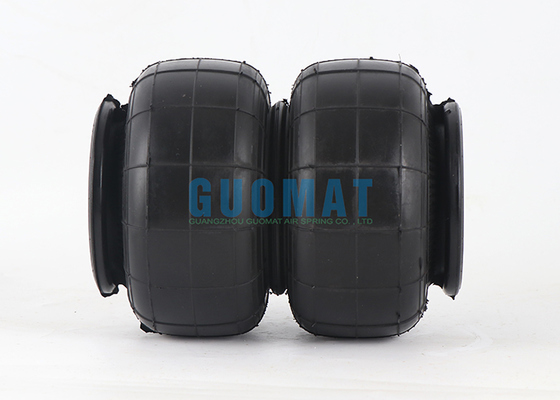

Natural Rubber W01-358-0138 Firestone Pneumatic Bellows Actuators Style 274

Product Details:

Place of Origin:	Guangzhou China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B0138

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD59.9-69.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Material:	Rubber	Type:	Gas-Filled
Quality:	100 % Tested	Fuction:	Reduce Shock
Transport Package:	Strong Cartons	Warranty:	12 Months
Firestone Style:	274	Convoluted:	Double
Highlight:	Firestone pneumatic bellows actuator , Natural rubber air spring , Style 274 bellows actuator

Natural Rubber W01-358-0138 Firestone Pneumatic Bellows Actuators Style 274

Product Description

Brand: GUOMAT
Model Number: 2B0138
Material: Natural Rubber
Warranty: 1 Year
Quality: 100% Tested
Sample: Available
Packing: Customized Packing

OE Manufacturer Number

Firestone Style: 274
Firestone Rubber Bellows: W01-358-0138 / WO1-358-0138
Firestone Rubber Bellows: W01 358 0138 / WO1 358 0138
Firestone Rubber Bellows: W013580138 / WO13580138

Firestone air spring assembly with the same rubber type:

Firestone Air Spring Number: W01-358-6910
Firestone Air Spring Number: W01 358 6910
Firestone Air Spring Number: W013586910
Firestone Air Spring Number: W01-358-6911
Firestone Air Spring Number: W01 358 6911
Firestone Air Spring Number: W013586911
Firestone Air Spring Number: W01-358-6900
Firestone Air Spring Number: W01 358 6900
Firestone Air Spring Number: W013586900
Firestone Air Spring Number: W01-358-6901
Firestone Air Spring Number: W01 358 6901
Firestone Air Spring Number: W013586901
Firestone Air Spring Number: W01-358-6923
Firestone Air Spring Number: W01 358 6923
Firestone Air Spring Number: W013586923

GUOMAT 2B0138 Air Bellow Technical Data

Natural Height	210mm
Natural Outer Diameter	224.63mm
Outer Diameter	153mm
Inner Diameter	115.5mm

Assembly Height(in.)	Volume@ 100PSIG(in3)	Pounds Force
9.0	392	392 \| 770 \| 1195 \| 1642 \| 2114
8.0	365	576 \| 1128 \| 1713 \| 2309 \| 2940
7.0	331	707 \| 1396 \| 2104 \| 2832 \| 3582
6.0	291	806 \| 1601 \| 2410 \| 3237 \| 4082
5.0	247	903 \| 1796 \| 2702 \| 3624 \| 4562
4.0	197	993 \| 1966 \| 2953 \| 3948 \| 4958

Common Faults and Maintenance

Common Faults:

Airbag Aging and Cracking: Prolonged exposure of the rubber material to ozone, ultraviolet radiation, and extreme temperatures can cause cracking and air leakage.
Height Valve Malfunction: A stuck valve core, damaged connecting rod, or air leakage can prevent the cab from maintaining a level position.
Air Line Leaks: Loose or damaged air hose connections can lead to insufficient system pressure.
Foreign Object Cuts: Pebbles or sharp objects on the road may puncture the airbag.

Maintenance Recommendations:

Regular Inspection: Visually inspect the airbag surface for cracks, cuts, and abnormal wear.
Keep Clean: Regularly clean the airbag and surrounding area to prevent the accumulation of corrosive substances.
Check the Height Valve: Ensure its connecting rod moves freely without interference.
Use High-Quality Air: Ensure the dryer and oil-water separator of the entire vehicle's air system are functioning properly.

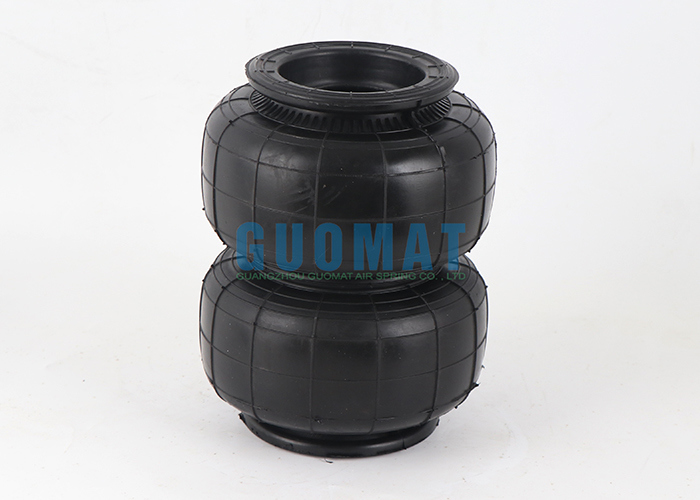

The Related Picture of W01-358-0138
