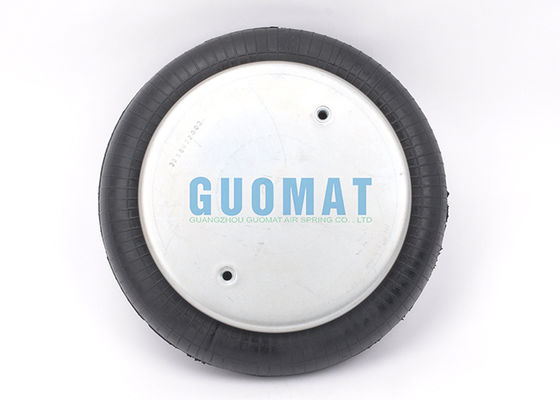

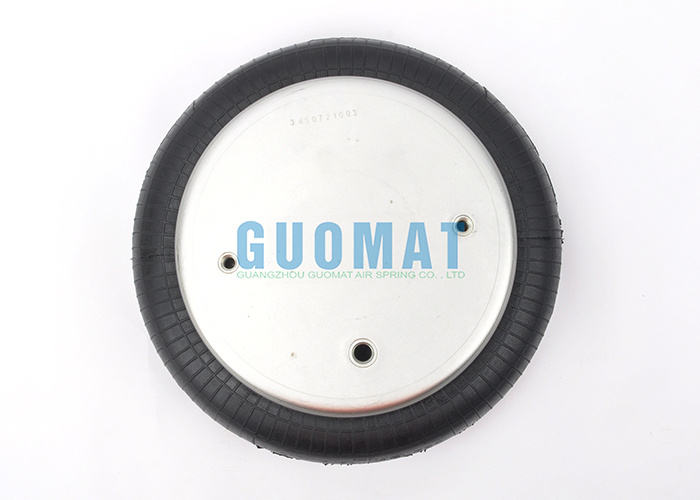

3/4NPT Single Convoluted Air Spring W01-358-7012 Firestone Industrial Air Rubber Bags

3/4NPT Single Convoluted Air Spring W01-358-7012 Firestone Industrial Air Rubber Bags

3/4NPT Single Convoluted Air Spring W01-358-7012 Firestone Industrial Air Rubber Bags
3/4NPT Single Convoluted Air Spring W01-358-7012 Firestone Industrial Air Rubber Bags
3/4NPT Single Convoluted Air Spring W01-358-7012 Firestone Industrial Air Rubber Bags
Product Details:
Place of Origin: GuangDong, China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 1B5330M8-G3/4
Payment & Shipping Terms:
Minimum Order Quantity: 6PCS
Price: $109.9-119.9/pc
Packaging Details: Strong Carton Box Or As Customers Need
Delivery Time: 2-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Product Name: Air Spring/Airbag/Air Suspension Warranty: 1 Year
Material: Rubber + Steel Packing: Brown Carton
Firetsone: W01-358-7012 Convolution: Single Convoluted Type
Color: Black Other Name: Rubber Air Balloon
Highlight:

3/4NPT air spring

,

Firestone industrial rubber bags

,

single convoluted air spring

3/4NPT Single Convoluted Air Spring W01-358-7012 Firestone Industrial Air Rubber Bags
3/4NPT Single Convoluted Air Spring W01-358-7012 Firestone Industrial Air Rubber Bags
Product Details
  • GUOMAT NO.: 1B5330M8-G3/4
  • Name: Single Convoluted Industrial air spring
  • Warranty: 1 Year
  • Material: Rubber bellows and steel cover plate
  • Certification: ISO/TS16949:2009
  • Packing: Brown arton with (air spring), packed according to customer's requirements
  • Scope of application: Shock absorption of industrial equipment
  • Payment: T/T, PayPal, Western Union
  • Shipment: Ship by air, by sea, by truck or by express
Rubber Air Bellows Technical Data
Top cover plate diameter: 231mm
Air hole: G3/4
Threaded hole of top cover plate: 2XM8X1.25
Center distance between threaded holes: 157.5mm
Center distance from threaded hole to air hole: 69.5mm
Bottom cover plate diameter: 231mm
Threaded hole of bottom cover plate: 2XM8X1.25
Center distance between threaded holes: 157.5mm
Maximum outer diameter: 325mm
Minimum compression height: 55mm
Maximum height: 160mm
OEM Number
FIRETSONE Number:
  • Style 19
  • W01-358-7012 / WO1-358-7012
  • W01 358 7012 / WO1 358 7012
  • W013587012 / WO13587012
CONTITECH Number:
  • FS 330-11 CI 3/4 NPT OS B
  • FS 330-11 CI 3/4 NPT
  • FS330-11 CI 3/4 NPT
  • 79114
  • FS330-11CI3/4NPTOSB
GOODYEAR Number:
  • 1B12-300
  • 1B12 300
  • 1B12300
  • 1B12-313
  • 1B12 313
  • 1B12313
  • GOODYEAR Bellows Number: 578-91-3-301
  • GOODYEAR Bellows Number: 578 91 3 301
  • GOODYEAR Bellows Number: 578913301
Other Numbers:
  • Triangle Part Number: 4474
  • Triangle Bellows Number: 6374
  • Holland (Neway) Number: 905-57-226
Assembly Height(in.) Volume@ 100PSIG(in3) Pounds Force
5.0 394 780 | 1690 | 2640 | 3730 | 4870
4.0 327 1300 | 2610 | 4060 | 5500 | 7050
3.0 244 1580 | 3280 | 5000 | 6720 | 8440
We Proudly Offer the Highest Quality Replacement Air Springs that Exceed OEM Requirements.
