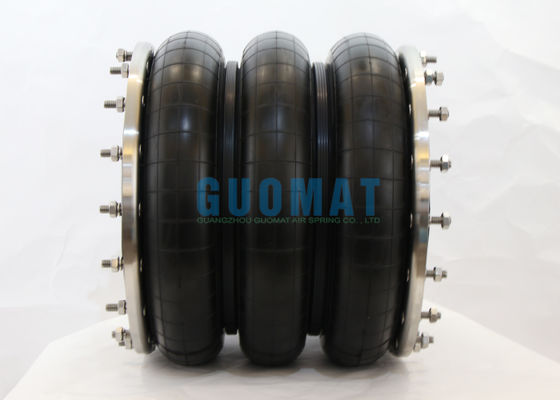

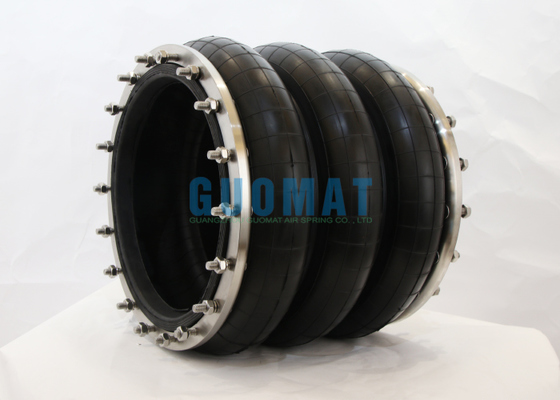

Durable Rubber W01-358-7761 Firestone Flange Air Spring Style 312 Air Bellows For Industrial Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2H7761

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$199.9-$229.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Transport Package:	Cartons	Trademark:	GUOMAT
Function:	Reduce Vibration	OEM No.:	Firestone W01-358-7761
Connection Method:	Bolt Connection	Style:	312
Stroke:	4.5''-18''	Other Name:	Rubber Air Balloon
Highlight:	Firestone flange air spring , industrial machine air bellows , durable rubber air spring

Durable Rubber W01-358-7761 Firestone Flange Air Spring Style 312 Air Bellows For Industrial Machine

Durable Rubber W01-358-7761 Firestone Flange Air Spring Style 312 Air Bellows For Industrial Machine

Product Introduction

Brand:

GUOMAT

Model Number:

2H7761

Material:

Rubber and Steel

Warranty:

1 Year

Convolutions:

Double Convoluted

Packing:

Standard Brown Cardboard Box Packaging

Trade Terms:

FOB, EXW, CIF

OE Manufacturer Number

Firestone Style Number: 312

Firestone OEM Number: W01-358-7761 / WO1-358-7761

Firestone OEM Number: W01 358 7761 / WO1 358 7761

Firestone OEM Number: W013587761 / WO13587761

Other Firestone Assembly Numbers with the Same Style Number:

Rubber Bellows Only

W01-358-7915 / W01 358 7915 / W013587915

WO1-358-7915 / WO1 358 7915 / WO13587915

Ribbed Neck Aluminum Bead Rings (Unequal Spacing) 17/8 b,n,w

W01-358-7760 / W01 358 7760 / W013587760

WO1-358-7760 / WO1 358 7760 / WO13587760

Rolled Plate Assembly 1/2 Blind Nuts, 3/4 NPT

W01-358-7286 / W01 358 7286 / W013587286

WO1-358-7286 / WO1 358 7286 / WO13587286

Technical Data

Flange diameter:	15.12 inches
Bolts:	18pcs x 3/8-24
Center distance between bolts:	13.81 inches
Maximum outer diameter:	18.2 inches
Design height:	13.0 inches
Maximum height:	18 inches
Minimum height:	4.5 inches

Assembly

Height(in.)	Volume@100PSIG(in3)	Pound Force	@20PSIG	@40PSIG	@60PSIG	@80PSIG
14.0	2342	2300	4640	7230	9820	12420
12.0	2061	2760	5510	8560	11510	14450
10.0	1744	3130	6260	9620	12870	16060
8.0	1400	3340	6940	10370	13820	17440
6.0	1021	3790	7580	11510	15350	19280

Can Flange Air Springs be Used on RVs?

Absolutely! Flange air springs are not only used on RVs, but are also a very popular and widely used upgrade solution.

Here are its main benefits for RVs:

Install flange air springs alongside the existing leaf spring suspension. They don't replace the original springs, but rather act as an "assistant," sharing the load and allowing you to adjust the support.
Some high-end or customized RV chassis use full air suspension systems, which include flange air springs as a core component.

Adjusting vehicle height and maintaining level: When an RV is connected to a trailer or has uneven loads, the vehicle body is prone to sagging or tilting. By inflating the air springs, the vehicle body can be easily raised and leveled, which is crucial for parking at campsites and ensuring the proper functioning of appliances such as refrigerators.

Significantly improved driving stability and safety: Increased suspension support effectively reduces significant body roll and nose dive, making the large RV more stable and safer at high speeds and when cornering. Maintaining a level headlight position also means the headlights are angled correctly, ensuring safety.

Improved ride comfort: Air springs better absorb and cushion road bumps, providing a smoother and more comfortable ride compared to the "hard impact" of leaf springs.

Protected vehicle structure: By providing additional support, the load on the chassis, axles, and tires is reduced, helping to extend the lifespan of these critical components.
