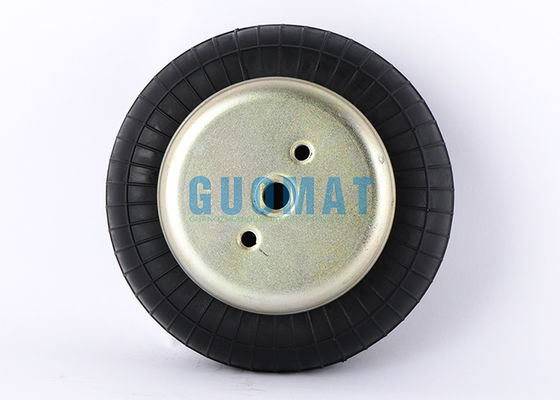

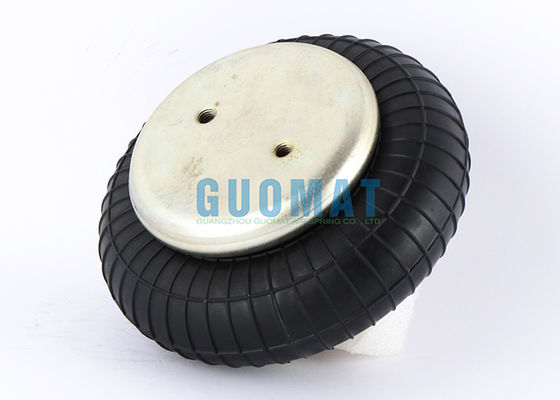

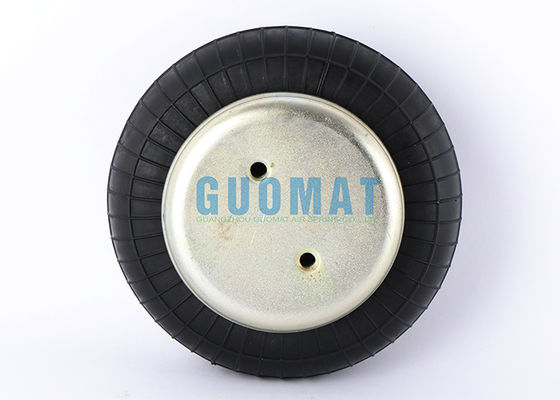

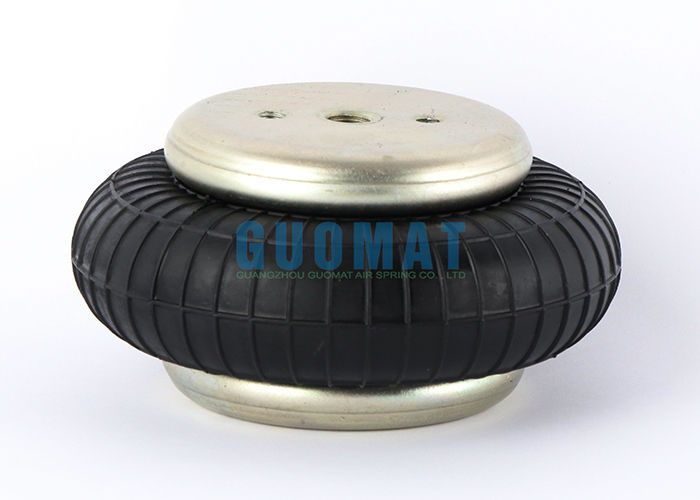

Firestone W01-M58-6155 Industrial Bellows Air Actuator 1/4 BSP Convoluted Air Spring

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B7070

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$49.9-59.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Air Spring/Air Bellow/Airbag	Material:	Rubber And Steel
Warranty:	12 Months	Function:	Reduce Shock
Rubber Type:	Natural Rubber	Replace Number:	Firestone W01-M58-6155
Convolutions:	Single Convoluted	Weight:	1.5KG
Highlight:	Firestone industrial bellows air actuator , 1/4 BSP convoluted air spring , rubber air spring with warranty

Firestone W01-M58-6155 Industrial Bellows Air Actuator 1/4 BSP Convoluted Air Spring

Product Specifications

Product Name	Rubber Air Spring
Brand	GUOMAT
GUOMAT Number	1B7070
Working Temperature	-40℃ to +70℃
Failure Testing	≥3 millions

OE Manufacturer Numbers

FIRESTONE: Style 131
FIRESTONE: W01-M58-6155
FIRESTONE: W01 M58 6155
FIRESTONE: W01M586155
FIRESTONE: WO1-M58-6155
FIRESTONE: WO1 M58 6155
FIRESTONE: WO1M586155
CONTITECH: FS70-7
CONTITECH: FS 70-7
CONTITECH: FS70-7 2681015000
CONTITECH: FS 70-7 2681015000
CONTITECH: FS70-7 C12681015000
CONTITECH: FS 70-7 C12681015000
CONTITECH: FS 70-7 1/4 M8
CONTITECH: FS 70-7 G1/4 M8
CONTITECH: FS 70-7 CI G1/4
CONTITECH: FS 70-7 Cl G1/4 M8
CONTITECH: FS 70-7 CI / FS70-7C1 / FS707C1
Enidine: YM-FS 70-7-0160/YMFS 70-7-0160/YMFS70-7-0160
Enidine: YM-FS 70-7 CI G1/4 M8
Enidine: Yl-FS 70-7-731/YIFS 70-7-731/YIFS70-7-731
Enidine: Yl-FS 70-7 CI1/4NPT 3/8-16UNC
Goodyear: 1B6-833/1B6833/1B6833
Goodyear Flex No.: 579-913-510/579 913 510/579913510
Phoenix: SP1 B 05/SP1B05
Bosch: 822419002
Festo: EB-165-65/EB 165 65/EB16565
Weforma: WBE 200-E1/WBE200-E1/WBE200E1
Vigor: 1B 5002/1B5002
Vigor Bellow: 1B70-7/1B707/1B707VKNTECH:1B 7070/1B7070
VKNTECH Bellow: 1B70-7/1B707/1B707
EAA: 1E70-7/1E707/1E707
EAA Bellow: 1E70-7/1E707/1E707
HONGLI: JBF100/96-1/JBF100 961/JBF100961
CHENGUANG: 150086J-1/150086J1/150086J1

Technical Specifications

Max. Height: 114mm

Min. Height: 51mm

Design Height: 90mm

Air Inlet: 1/4BSP

Threaded Hole: M8X1.25

Max. Outer Diameter: 165mm

Cover Plate Diameter: 114mm

Center Distance Between Threaded Holes: 44mm

Performance Data

Assembly Height (mm)	Volume @ 7BAR (cu cm)	EFF Area@7 BAR(cm*2)	kN Force
			@3BAR	@4BAR	@5BAR	@6BAR	@7BAR
110	982	78	1.96	2.83	3.65	4.63	5.48
90	880	93	2.50	3.51	4.48	5.57	6.54
80	774	105	2.90	4.01	5.10	6.30	7.38
70	652	115	3.23	4.44	5.61	6.91	8.08
60	529	124	3.51	4.79	6.05	7.41	8.65
