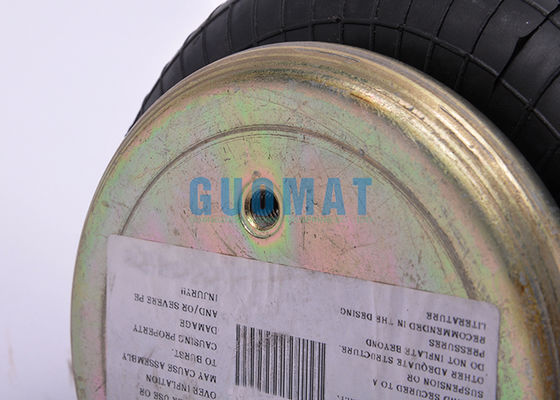

Style 160 Single Convoluted Rubber Air Bags W01-358-7751 Firestone Air Spring For Lifting

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B7751

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$49.9-59.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Industrial Air Shock Absorber	Material:	Rubber And Steel
Warranty:	12 Months	Function:	Reduce Shock
Rubber Type:	Natural Rubber	Firestone:	W01-358-7751
Air Fitting:	1/4 NPT	Stroke:	2.1''-7''
Highlight:	Firestone rubber air spring , single convoluted air bag , lifting air spring W01-358-7751

Style 160 Single Convoluted Rubber Air Bags W01-358-7751 Firestone Air Spring For Lifting

Style 160 Single Convoluted Rubber Air Bags W01-358-7751 Firestone Air Spring For Lifting

Product Specifications

Product Name: Rubber Air Spring

Brand: GUOMAT

GUOMAT Number: 1B7751

Working Temperature: -40℃ to +70℃

Failure Testing: ≥3 millions

MOQ: 4PCS

Material: Rubber+Steel

Warranty: 1 Year

1B7751 Can Replace Firestone W01-358-7751

FIRESTONE Style Number: 160
FIRESTONE Air Spring Number: W013587751 / WO13587751
FIRESTONE Air Spring Number: W01 358 7751 / WO1 358 7751
FIRESTONE Air Spring Number: W01-358-7751 / WO1-358-7751

Technical Data

Specification	Value
Air connection	1/4 NPT
Threaded holes	2 x 3/8-16
Center distance between threaded holes	7.75 inches
Cover diameter	4.5 inches
Maximum outer diameter	7.2 inches
Maximum height	7 inches
Minimum height	2.1 inches
Design height	5.5 inches

Assembly Height(in.)	Volume@ 100PSIG(in3)	Pounds Force
6	137	240 \| 560 \| 900 \| 1250 \| 1620
5	118	340 \| 710 \| 1100 \| 1500 \| 1920
4	97	400 \| 810 \| 1240 \| 1670 \| 2110
3	73	440 \| 870 \| 1360 \| 1870 \| 2390

Firestone Style 160 Rubber Air Spring

W01-358-7751 - Blind nuts, 1/4NPT
W01-358-7752 - Blind nuts, 3/4NPT
W01-358-7592 - Socket head aluminum bead rings (bolts, nuts, washers not included - use 1/4 cap screws)
