W01-M58-6974 Firestone Rubber Air Spring Style 119 For Equipment Leveling System

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1H6974

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$199.9-$229.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Name:	Rubber Air Spring	Transport Package:	Cartons
Trademark:	GUOMAT	Function:	Reduce Vibration
Firestone:	W01-M58-6974	Firestone Style:	119
Convolution:	Single Convoluted Type	MOQ:	4PCS
Highlight:	Firestone rubber air spring , equipment leveling air spring , industrial air spring Style 119

W01-M58-6974 Firestone Rubber Air Spring Style 119 For Equipment Leveling System

Product Introduction

Brand:

GUOMAT

Model Number:

1H6974

Material:

Rubber and Steel

Warranty:

1 Year

Convolutions:

Single Convoluted

Packing:

Standard Brown Cardboard Box Packaging

Trade Terms:

FOB, EXW, CIF

Product Identification Numbers

GUOMAT Number: 1H6974

FIRSTONE STYLE 119

FIRESTONE Number: W01-M58-6974 / WO1-M58-6974

FIRESTONE Number: W01 M58 6974 / WO1 M58 6974

FIRESTONE Number: W01M586974 / WO1M586974

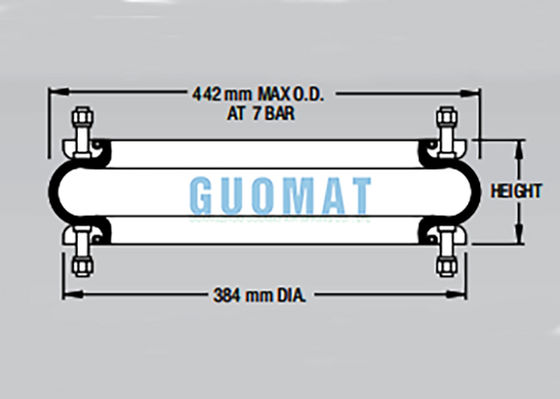

Technical Data

Specification	Value
Flange Diameter	384mm
Maximum Outer Diameter (At 7 BAR)	442mm

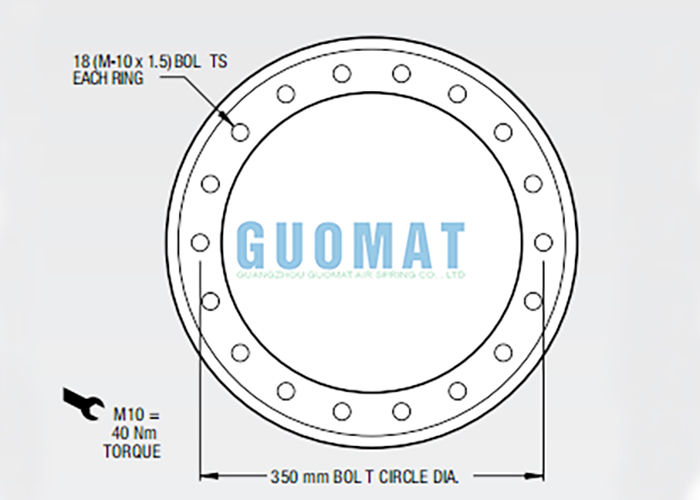

Bolts	18pcsxM10Z1.5
Center Distance Between Bolts	350mm
Maximum Height	178mm
Minimum Height	51mm
Design Height	125mm
Convolutions	1

Force Table

Assembly Height(mm)	Volume@7 BAR (cu cm)	EFF Area@7 BAR(cm sq)	kN @3BAR	kN @4BAR	kN @5BAR	kN @6BAR	kN @7BAR
140	14081	847	23.26	32.31	40.96	50.59	59.29
130	13097	922	25.78	35.46	44.84	55.17	64.52
120	12133	982	27.78	37.99	47.98	58.85	68.74
110	11058	1033	29.48	40.18	50.67	62.00	72.34
100	10008	1075	30.83	41.97	52.85	64.53	75.23
90	8840	1110	31.99	43.53	54.73	66.70	77.72
80	7704	1139	32.96	44.81	56.25	68.45	79.72
70	6445	1162	33.79	45.85	57.48	69.86	81.34

Firestone Style 119 Variants

W01-M58-6974 / W01 M58 697/ W01M586974
Ribbed neck aluminum bead rings (equal spacing),45mm bolts,nuts,washers

W01-358-0119 / W01 358 0119 / W013580119
Rubber bellows only

W01-358-7477 / W01 358 7477 / W013587477
Rilled plate assembly,1/2 blind nuts,3/4NPT

Core Advantages of Air Springs

Extra-long service life: Industrial air springs can withstand up to 5 million reciprocating cycles.
Maintenance-free and high reliability: With no piston rods or sliding seals inside, these springs effectively avoid common problems in traditional cylinders, such as seal damage and connecting rod bending, even in harsh environments with dust and debris, achieving maintenance-free operation.
Excellent vibration isolation: When used as a vibration isolator, the system's natural frequency can be as low as 1 Hz, effectively protecting vibrating mechanical components and isolating vibrations transmitted through the structure.
Flexible load-bearing capacity: Possesses a certain eccentric load-bearing capacity, allowing it to withstand eccentric loads within certain limits without the need for a complex linkage system.
