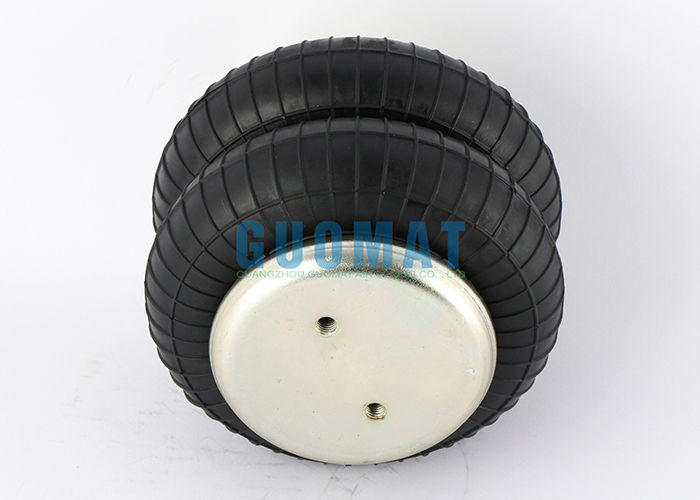

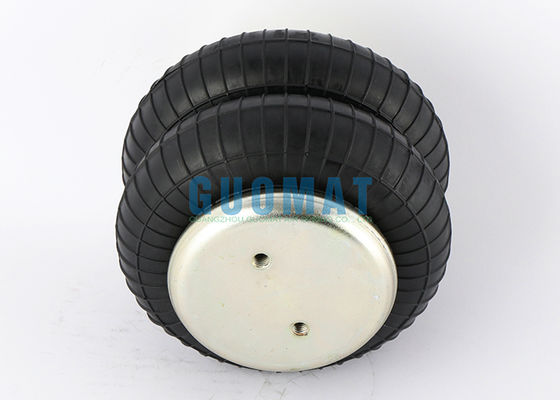

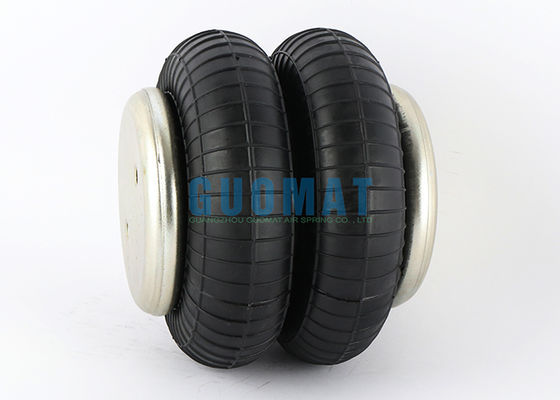

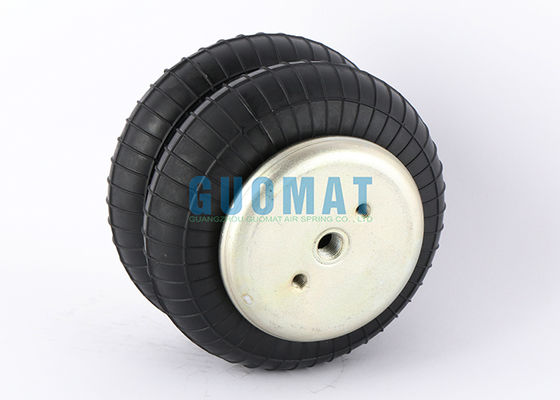

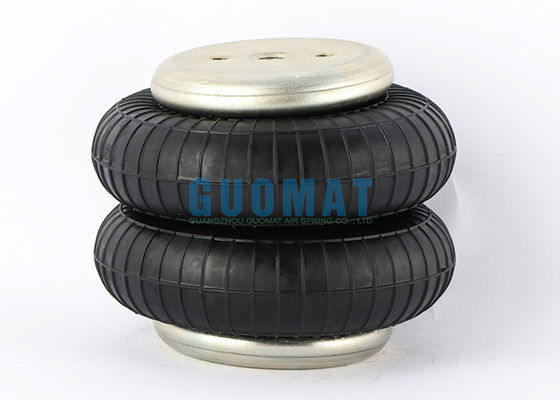

W01-M58-6160 Firestone Industrial Air Actuator 1/4 BSP Convoluted Type Air Spring

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B6160

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$59.9-$69.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Name:	Rubber Air Spring	Transport Package:	Cartons
Trademark:	GUOMAT	Function:	Reduce Vibration
Convolution:	Single Convoluted Type	MOQ:	4PCS
Firestone:	W01-M58-6160	Style:	Style 25
Highlight:	Firestone Industrial Air Actuator , 1/4 BSP Air Spring , Convoluted Type Air Spring

W01-M58-6160 Firestone Industrial Air Actuator 1/4 BSP Convoluted Type Air Spring

Product Introduction

Project	Description
Brand	GUOMAT
Model	2B6160
Material	Premium rubber and reinforced steel: Rubber components offer excellent flexibility and fatigue resistance; metal components are rust-proofed for long service life.
Structure Type	Double Convoluted
Warranty	1 year: We provide a solid guarantee for product quality.
Packaging	Standard brown cardboard box: Ensures good protection of the product during transportation; neat packaging.
Minimum Order Quantity	4 pieces

OE Manufacturer Number

Firestone Style Number: Style 25
Firestone Number: W01-M58-6160
Firestone Number: W01 M58 6160
Firestone Number: W01M586160
Firestone Number: WO1-M58-6160
Firestone Number: WO1 M58 6160
Firestone Number: WO1M586160
Blind nuts, 1/4 BSP
Firestone W01-M58-6160 / W01 M58 6160 / W01M586160
Socket head aluminum bead rings (bolts, nuts, washers not included-use M6 cap screws)
Firestone W01-358-0030 / W01 358 0030 / W013580030
Rubber bellows only (no girdle hoop)
Firestone W01-358-0025 / W01 358 0025 / W013580025

Force Table

Assembly Height(mm)	Volume@7 BAR (cu cm)	EFF Area@7 BAR(cm sq)	kN @3BAR	kN @4BAR	kN @5BAR	kN @6BAR	kN @7BAR
140	14081	847	23.26	32.31	40.96	50.59	59.29
130	13097	922	25.78	35.46	44.84	55.17	64.52
120	12133	982	27.78	37.99	47.98	58.85	68.74
110	11058	1033	29.48	40.18	50.67	62.00	72.34
100	10008	1075	30.83	41.97	52.85	64.53	75.23
90	8840	1110	31.99	43.53	54.73	66.70	77.72
80	7704	1139	32.96	44.81	56.25	68.45	79.72
70	6445	1162	33.79	45.85	57.48	69.86	81.34

Why Choose GUOMAT? -- A Partner Beyond the Product

When you choose GUOMAT, you're choosing more than just an air spring; you're choosing a reliable partner committed to your business success. We understand that in a highly competitive market, you need more than just products; you need the quality, service, and trust behind them. Here are the irreplaceable values you'll gain from partnering with us:

Vertically Integrated Manufacturing: Superior Quality and Cost Advantage
Independent Production and Control: We have a complete production line from rubber compounding, cord cutting, metal end cap processing to vulcanization. This means we implement direct and rigorous control over every link in the supply chain, eliminating potential quality issues at the source.
Maximized Cost Efficiency: By eliminating intermediaries, we can directly pass on the cost savings to you, ensuring that GUOMAT products offer quality exceeding industry standards while maintaining highly competitive market prices, creating greater profit margins for you.
Engineer-Driven Product Development
Professional R&D Team: Our technical team is led by engineers with over 15 years of experience in rubber products and automotive suspension systems. We don't just replicate specifications; we deeply understand the mechanical properties and operating conditions required for the products.
Continuous Optimization and Innovation: We continuously invest in R&D, optimizing rubber formulations (ozone resistance, aging resistance, wide temperature range adaptability) and structural design (cord angle, durability) to ensure our products can meet the most demanding application challenges, resulting in longer lifespans and more stable performance.
Rigorous Quality Control System Down to Every Detail
Triple Quality Inspection Process: From raw material inspection upon arrival to online process control on the production line, and 100% airtightness testing and visual inspection of finished products, we have built a comprehensive quality firewall.
Real-World Simulation Testing: We regularly conduct fatigue life tests (simulating millions of reciprocating motions), burst pressure tests, and environmental aging tests on our products to ensure that every air spring leaving the factory can withstand real-world testing.
Service System Focused on Foreign Trade, Understanding Your Needs
Seamless Communication Experience: Our foreign trade team is proficient in international trade processes and regulations, providing professional and timely English technical support and business communication to ensure accurate information and avoid errors caused by misunderstandings.
Flexible Trading and Logistics Solutions: We offer various trade terms including FOB, EXW, and CIF, and can flexibly arrange sea freight, air freight, or express delivery according to your needs, meeting your various logistics and timeliness requirements from trial orders to large-volume purchases.
Globally Proven Reliability and Commitment
1-Year Warranty: We confidently offer a 1-year quality guarantee for the GUOMAT 2B6160 air spring, stemming from our absolute confidence in the product's reliability. We promise a rapid response and resolution for any non-human-caused quality issues.
Mature Export Experience: Our products have been stably exported to many countries and regions in Europe, North America, the Middle East, and Southeast Asia. We are familiar with the standards and requirements of different markets, ensuring complete documentation and certifications, and smooth customs clearance.
