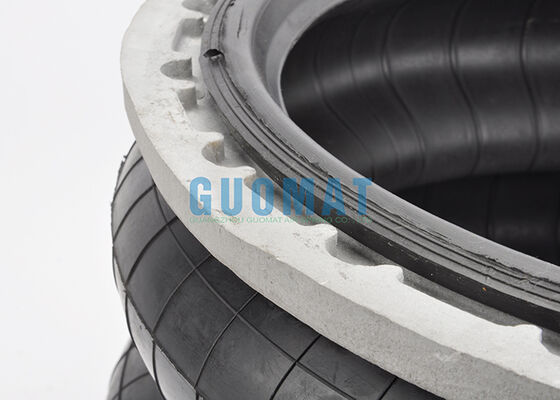

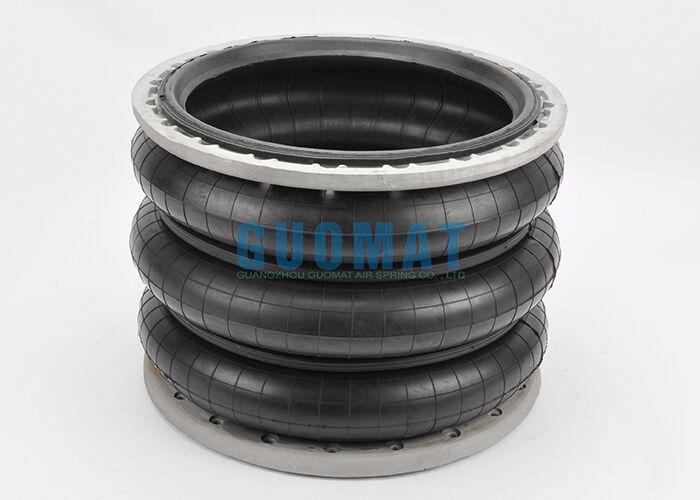

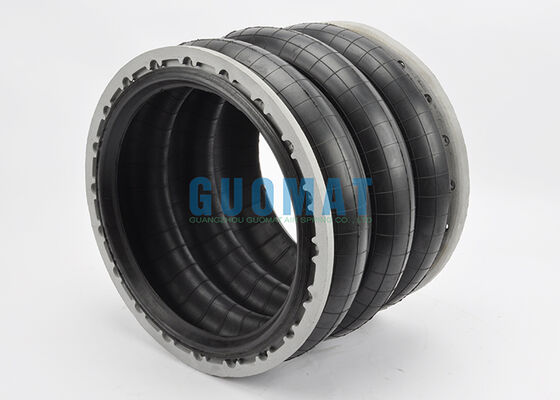

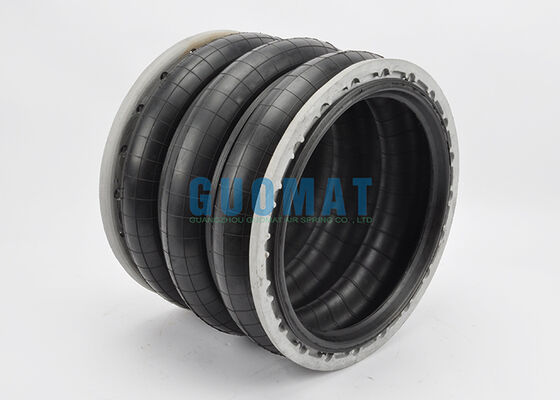

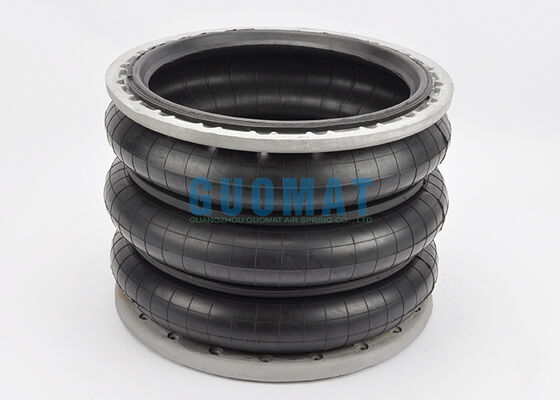

Firestone W01-M58-6980 Rubber Air Spring Kit M10 Bolts Industrial Vibration Isolation

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	3H6980

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$299.9-$399.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Name:	Flange Air Spring	Transport Package:	Cartons
Trademark:	GUOMAT	Firestone:	W01-M58-6980
Sample:	Available	Material:	Imported Natural Rubber
Operation:	Gas-filled	Service Offered:	OEM
Highlight:	Firestone rubber air spring kit , industrial vibration isolation air spring , M10 bolts air spring kit

Firestone W01-M58-6980 Rubber Air Spring Kit M10 Bolts Industrial Vibration Isolation

Product Introduction
Brand: GUOMAT
Model Number: 3H6980
Material: Rubber and Steel
Warranty: 12 Months
Convolutions: Triple Convoluted Type
MOQ: 4 PCS
Operation: Gas-filled
Package: Standard Packing Or Customized
Type Of Goods: Air Spring/Air Bags/Air Balloon

OEM Number / Cross Reference Number

FIRESTONE STYLE	323 STYLE
FIRESTONE NUMBERS	W01-M58-6980 / W01M586980 / W01 M58 6980
FIRESTONE NUMBERS	WO1-M58-6980 / WO1M586980 / WO1 M58 6980

Ribbed neck aluminum bead rings (equal spacing),45 mm bolts, nuts, washers
FIRESTINE: W01-M58-6980
FIRESTINE: W01 M58 6980
FIRESTINE: W01M586980

Rolled plate assembly, 1/2 blind nuts, 3/4 NPT
FIRESTINE: W01-358-7274
FIRESTINE: W01 358 7274
FIRESTINE: W013587274

Rubber bellows only
FIRESTINE: W01-358-7921
FIRESTINE: W01 358 7921
FIRESTINE: W013587921

Dimensional Data Parameters

Max.Height: 457mm

Min. Height: 117mm

Convolutions: 3

Flange Diameter: 451mm

Bolts: 24pcsXM10X1.5

Center Distance Between Bolts: 419mm

Dynamic Characteristics at 330mm Design Height

Gauge Pressure(BAR)	Load(kN)	Spring Rate(kN/m)	Natural Frequency Hz
3	35.44	282	1.41
4	48.94	359	1.35
5	61.63	439	1.33
6	75.25	519	1.31
7	87.73	591	1.29

Force Table

Assembly Height (mm)	Volume@7 BAR(cu cm)	EFF Area@7 BAR(cmsq)	kN Force @3BAR	kN Force @4BAR	kN Force @5BAR	kN Force @6BAR	kN Force @7BAR
390	58273	1014	27.34	38.66	49.98	60.53	70.98
350	53588	1185	33.11	46.04	58.01	71.01	82.92
310	48222	1314	37.50	51.49	64.81	79.00	90.98
270	42438	1416	40.88	55.72	70.14	85.30	99.14
230	36340	1503	43.49	59.18	74.48	90.52	105.18
190	29824	1585	45.86	62.40	78.51	95.46	110.96
150	22961	1676	48.67	66.06	83.04	100.93	117.33
