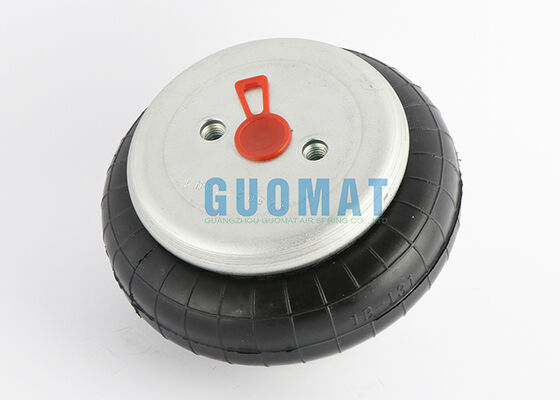

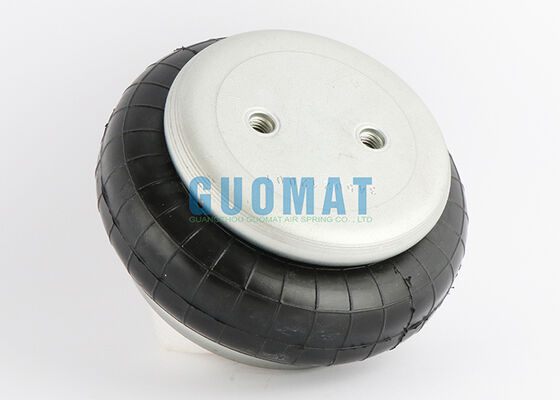

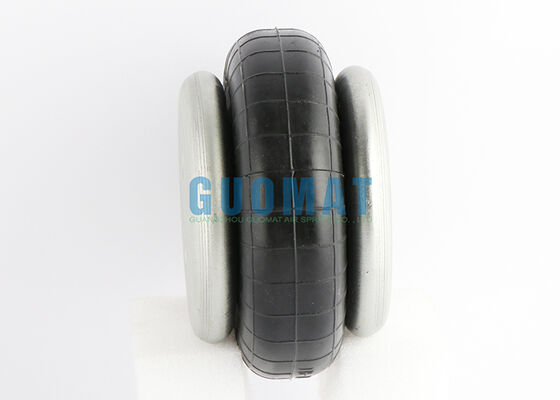

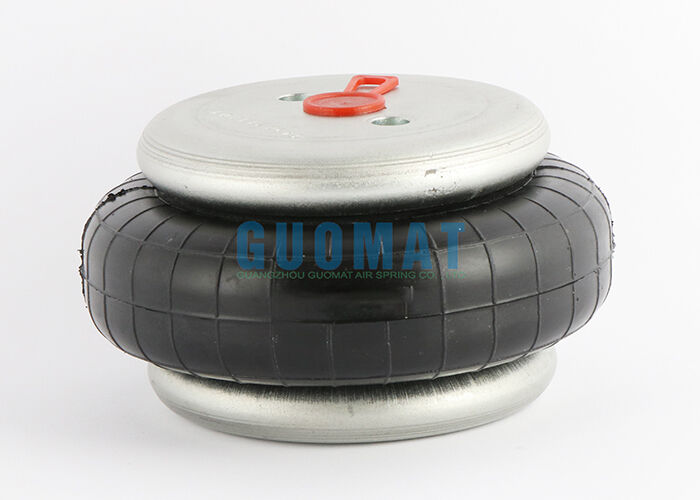

Natural Rubber W01-358-7742 Firestone Suspension Air Bag 3/4 NPT Air Help Spring

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B7742

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$49.9-59.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Quality:	100% Tested	Spring Material:	Steel+Rubber
Warranty:	1 Year	Shock Absorber Type::	Gas-Filled
Brand:	GUOMAT	OEM No.:	Firestone W01-358-7742
Air Fitting:	3/4 NPT	Connection Method:	Blind Nuts
Highlight:	Firestone suspension air spring , natural rubber air spring , 3/4 NPT air bag

Natural Rubber W01-358-7742 Firestone Suspension Air Bag 3/4 NPT Air Help Spring

Product Specifications

Item	Value
Model Number	1B7742
Type	Air Spring
Warranty	12 Months
Truck Model	Heavy Duty Truck
Color	Black
Place of Origin	Guangzhou, China
Certification	ISO/TS16949:2009
Material	Rubber+Steel
Packing	Neutral Packing
MOQ	1 Pcs
Quality	High-Quality
Position	Auto/Truck Parts
Application	Auto Suspension Systems

OEM Replacement Numbers

Firestone Style: Style 131
Firestone Number: W01-358-7742
Firestone Number: W01 358 7742
Firestone Number: W013587742
Firestone Number: WO1-358-7742
Firestone Number: WO1 358 7742
Firestone Number: WO13587742

Compatible Parts

Blind Nuts, 1/4NPT: W01-358-7731 / W01 358 7731 / W013587731 / WO1-358-7731 / WO1 358 7731 / WO13587731
Blind Nuts, 3/4NPT: W01-358-7742 / W01 358 7742 / W013587742 / WO1-358-7742 / WO1 358 7742 / WO13587742
Socket Head Aluminum Bead Rings: W01-358-0127 / W01 358 0127 / W013580127 / WO1-358-0127 / WO1 358 0127 / WO13580127
3/4 NPT Upper Plate, Blind Nuts Lower Plate: W01-358-7729 / W01 358 7729 / W013587729 / WO1-358-7729 / WO1 358 7729 / WO13587729
Rubber Bellows Only: W01-358-0131 / W01 358 0131 / W013580131 / WO1-358-0131 / WO1 358 0131 / WO13580131

Technical Specifications

Top Cover Diameter: 4.5 inches (114.3 mm)

Air Hole Specification: 3/4 NPT

Threaded Holes: 2 x 3/8-16 specification

Center Distance: 175 inches

Maximum Outer Diameter: 6.5 inches @ 100 PSIG

Height Specifications:

Maximum Height: 4.5 inches
Minimum Height: 2.0 inches
Natural State Height: 3.5 inches

These parameters provide a key basis for product installation adaptation, accessory matching and performance evaluation, ensuring accurate equipment assembly, stable operation, and effectively avoiding usage issues caused by inconsistent specifications.

Force Table
