Natural Rubber W01-358-7451 Firestone Single Convolution Type Air Spring / Air Bellows Bag

Natural Rubber W01-358-7451 Firestone Single Convolution Type Air Spring / Air Bellows Bag

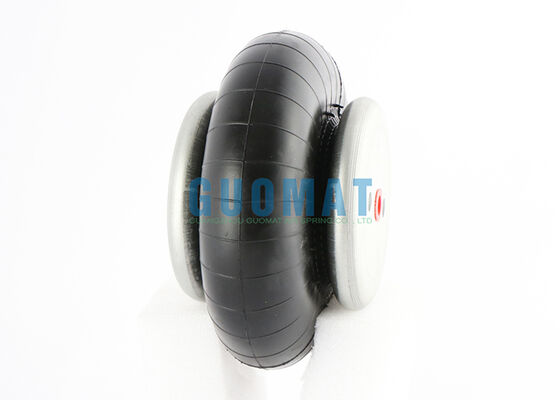

  • Natural Rubber W01-358-7451 Firestone Single Convolution Type Air Spring / Air Bellows Bag

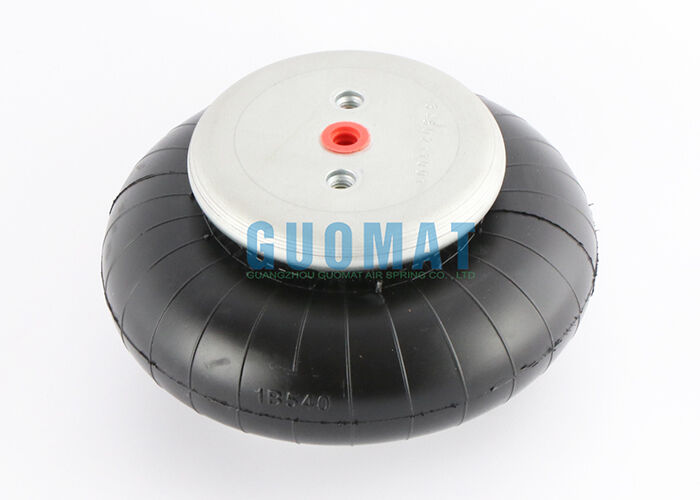

  • Natural Rubber W01-358-7451 Firestone Single Convolution Type Air Spring / Air Bellows Bag

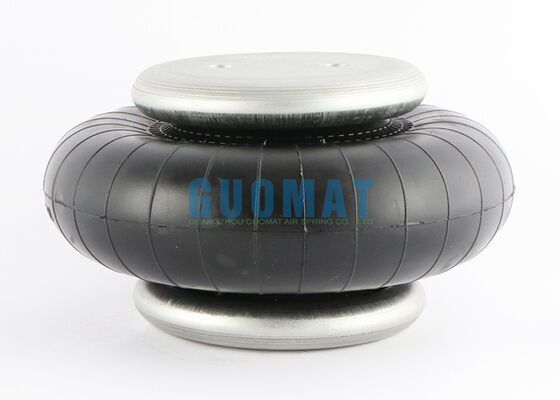

  • Natural Rubber W01-358-7451 Firestone Single Convolution Type Air Spring / Air Bellows Bag

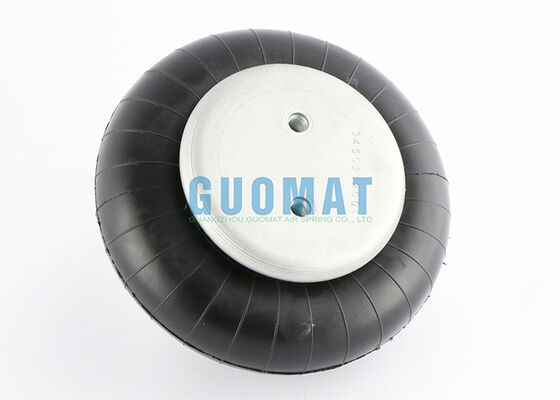

  • Natural Rubber W01-358-7451 Firestone Single Convolution Type Air Spring / Air Bellows Bag
Natural Rubber W01-358-7451 Firestone Single Convolution Type Air Spring / Air Bellows Bag
Product Details:
Place of Origin: GuangDong, China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 1B7451
Payment & Shipping Terms:
Minimum Order Quantity: 6PCS
Price: $49.9-59.9/pc
Packaging Details: Strong Carton Box Or As Customers Need
Delivery Time: 2-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Product Name: Air Spring/Airbag/Air Suspension Warranty: 1 Year
Material: Rubber + Steel Packing: Brown Carton
Color: Black Firestone: W01-358-7451
Convolution: 1 Condition: New
Highlight:

Firestone natural rubber air spring

,

single convolution air bellows bag

,

industrial air spring with warranty

Natural Rubber W01-358-7451 Firestone Single Convolution Type Air Spring / Air Bellows Bag
Natural Rubber W01-358-7451 Firestone Single Convolution Type Air Spring / Air Bellows Bag
Product Details
Type: Single Convoluted Air Suspension Airbag
Brand: GUOMAT
Model: 1B7451
Condition: Brand New
Material: Rubber + Steel
Warranty: 12 Months
Delivery Time: About 2 - 8 Working Days After Receiving Your Payment
Technical Data
Top cover plate diameter: 4.50 inch
Air fitting: 1/4NPF
Threaded hole on top cover plate: 2pcs 3/8-16UNC
Center distance between top cover plate threaded holes: 1.75 inch
Center distance between bottom cover plate threaded holes: 1.75 inch
Bottom cover plate diameter: 4.50 inch
Threaded hole on bottom cover plate: 2pcs 3/8-16UNC
The rubber bellows max.outer diamater: 8.1inch
Max.height: 6 inch
Min.height: 2.1 inch
Performance Data
Assembly Height(in.) Volume @100PSIG(in3) Pounds Force @20PSIG @40PSIG @60PSIG @80PSIG @100PSIG
4.0 117 390 810 1240 1700 2160
3.0 91 490 1010 1540 2090 2650
Dynamic Characteristics at 4.5 in. Design Height
Gage Pressure(PSIG) Load (Ibs.) Spring Rate(Ibs./in.) CPM HZ
40 650 554 173 2.88
60 1010 795 167 2.77
80 1390 1046 162 2.71
100 1790 1294 160 2.66
OEM Number / Cross Reference Number
  • FIRESTONE W01-358-7451
  • FIRESTONE W01 358 7451
  • FIRESTONE W013587451
  • FIRESTONE WO1-358-7451
  • FIRESTONE WO1 358 7451
  • FIRESTONE WO13587451
Compatible Parts
Blind nuts,1/4NPT
  • W01-358-7451 / W01 358 7451 / W013587451
  • WO1-358-7451 / WO1 358 7451 / WO13587451
Blind nuts,3/4NPT
  • W01-358-7484 / W01 358 7484 / W013587484
  • WO1-358-7484 / WO1 358 7484 / WO13587484
Socket head aluminum bead rings (bolts, nuts, washers not included-use 1/4 cap screws)
  • W01-358-0112 / W01 358 0112 / W013580112
  • WO1-358-0112 / WO1 358 0112 / WO13580112
Rubber Bellows Only
  • W01-358-0100 / W01 358 0100 / W013580100
  • WO1-358-0100 / WO1 358 0100 / WO13580100
Natural Rubber W01-358-7451 Firestone Single Convolution Type Air Spring / Air Bellows Bag 0 Natural Rubber W01-358-7451 Firestone Single Convolution Type Air Spring / Air Bellows Bag 1

Tag:

air helper springs,

air suspension parts,

convoluted air spring
