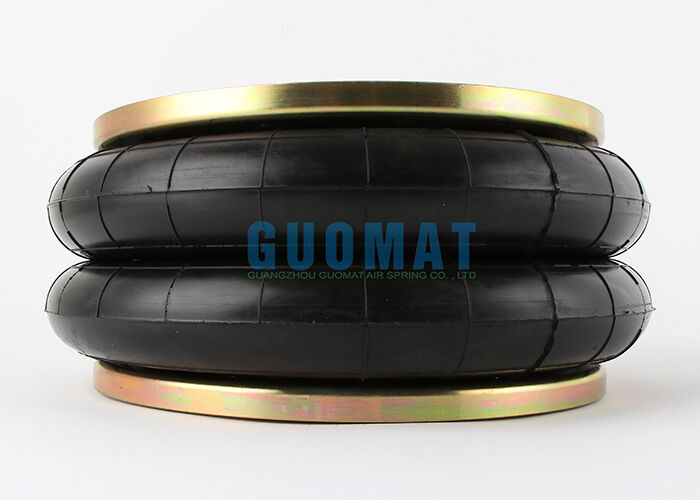

Customize GUOMAT 2H12X2P05 Flange Air Spring W01-R58-4044 Firestone Air Bellows 12X2 Air Rubber

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	GUOMAT
Certification:	ISO/Ts16949:2009
Model Number:	2H12X2P05

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$129.9-139.9/pc
Packaging Details:	Carton packaging or packaging according to customer requirements
Delivery Time:	5-8 Working Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	10,000 Per Week

Contact Now

Detailed Product Description

Type Name:	Flange Air Spring	Spring Material:	Natural Rubber
Quality:	100 % Tested	Warranty:	12 Months
Color:	Black	Firestone:	W01-R58-4044
Convolutions:	2	Rubber Nellows:	12X2
Highlight:	Firestone air spring 12x2 flange , industrial air bellow with warranty , GUOMAT rubber air spring W01-R58-4044

Customize GUOMAT 2H12X2P05 Flange Air Spring W01-R58-4044 Firestone Air Bellows 12X2 Air Rubber

Product Information

GUOMAT Brand
GUOMAT Part Number: 2H12X2P05
Material: Rubber+Steel
Warranty: 1 Year
Type: Double Convoluted Air Spring with Flange Ring
Delivery Time: 2-7 Working Days
Payment Methods: Bank Card, PayPal, Western Union
Shipping Methods: International Express, Air, Ocean, Railway, Truck

OEM Number / Cross Reference Number

Firestone Bellows Number: 12X2
Firestone Bellows Number 12''X2
Firestone Bellows Number: W01-R58-4044
Firestone Bellows Number: W01 R58 4044
Firestone Bellows Number: W01R584044

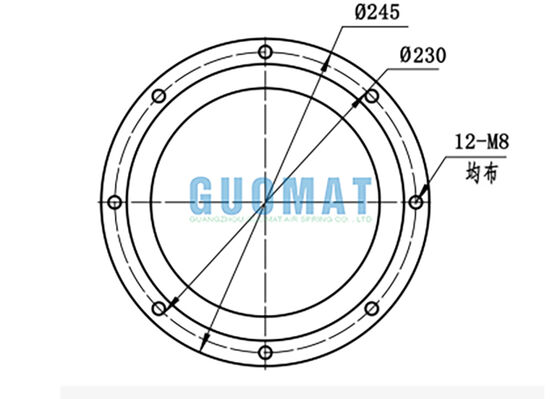

Technical Data

Outer diameter	304mm
Inner diameter	177mm
Minimum height	68mm
Flange diameter	245mm
Threaded hole diameter	230mm
Threaded holes	12pcsXM8

Firestone Rubber Bellows Specifications

Rubber Number	Firestone Number	Min.Height(mm)	Outer Dia.(mm)	Inner Dia.(mm)
4 1/2x1	W01-R58-4043	33	114	51
4 1/2x2	W01-R58-4076	53	114	110
6x2	W01-R58-4036	127	153	76
8x1	W01-R58-4085	50	203	99
8x2	W01-R58-4045	72	203	99
10x2	W01-R58-4048	165	254	126
10x3	W01-R58-4047	100	254	123
12x2	W01-R58-4044	68	304	177
12x3	W01-R58-4046	100	304	179
