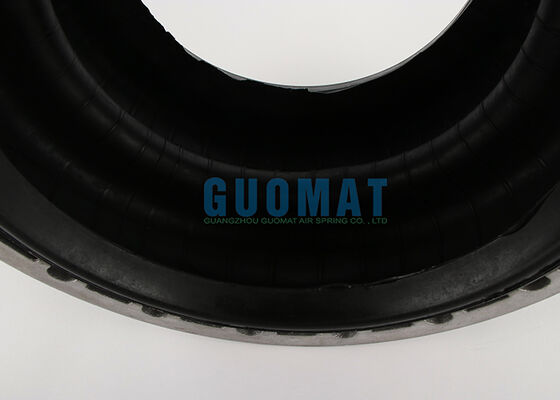

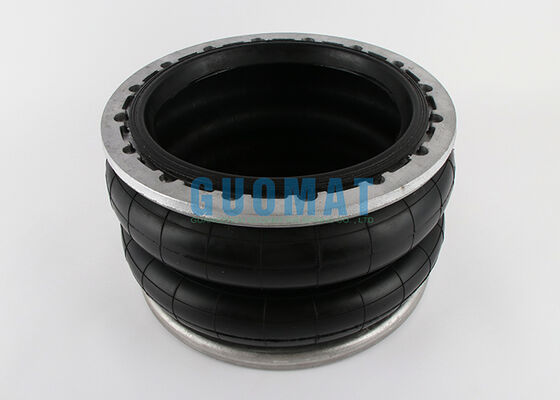

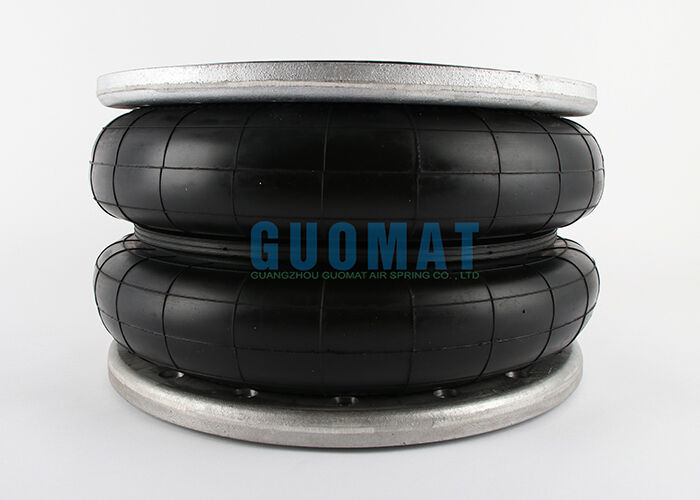

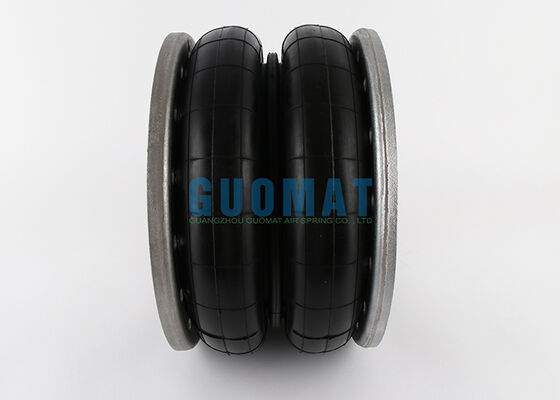

High Fatigue Resistance Air Spring W01-358-7191 Firestone Flange Connection Industrial Air Shock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2H320240

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$199.9-$229.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Name:	Industrial Air Spring	Transport Package:	Cartons
Trademark:	GUOMAT	Function:	Reduce Vibration
Connection Method:	Bolt Connection	Cross Number:	Firestone W01-358-7191
Firestone Style:	28	Material:	Rubber+Steel
Highlight:	Firestone industrial air spring , flange connection air shock , high fatigue resistance air spring

High Fatigue Resistance Air Spring W01-358-7191 Firestone Flange Connection Industrial Air Shock

Product Overview

Brand: GUOMAT

Model Number: 2H7191

Material: Rubber and Steel

Warranty: 1 Year

Convolutions: Double Convoluted

MOQ: 4pcs

Packing: Standard Brown Cardboard Box Packaging

Trade Terms: FOB, EXW, CIF

OEM Compatibility

Firestone W01-358-7191
Firestone W01 358 7191
Firestone W013587191
Firestone WO1-358-7191
Firestone WO1 358 7191
Firestone WO13587191
Firestone Style 28

Technical Specifications

Flange & Bolt Configuration

Flange Diameter: 15.12 inches

Center Distance Between Bolts: 13.81 inches

Bolts: 18 pieces x 3/8-24 UNF

Physical Dimensions & Range of Motion

Maximum Outer Diameter: 17.4 inches

Design Height: 9.5 inches

Operating Stroke: 3.4 inches to 12.0 inches

Performance Data

Assembly Height (in.)	Volume@100PSIG (in³)	Pounds Force @20PSIG	Pounds Force @40PSIG	Pounds Force @60PSIG	Pounds Force @80PSIG	Pounds Force @100PSIG
10.0	1658	2090	4150	6410	8780	11100
9.0	1529	2500	5000	7550	10290	13010
8.0	1384	2840	5700	8530	11530	14550
7.0	1224	3110	6250	9340	12580	15790
6.0	1053	3330	6650	9940	13380	16760
5.0	870	3590	7130	10690	14380	18010
4.0	679	3820	7570	11360	15270	19130

Firestone Assembly Numbers

Firestone Style 28:
Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers
W01-358-7191 / W01 358 7191 / W013587191

Ribbed neck aluminum bead rings (unequal spacing) 17/8 b,n,w
W01-358-7194 / W01 358 7194 / W013587194

Ribbed neck aluminum bead rings (equal spacing) 11/4 b,n,w
W01-358-7192 / W01 358 7192 / W013587192

Rolled plate assembly*, 1/2 blind nut 3/4NPT
W01-358-7271 / W01 358 7271 / W013587271

Rubber bellows only
W01-358-7925 / W01 358 7925 / W013587925

Firestone Style 201:
Ribbed neck aluminum bead rings (equal spacing)
W01-358-7244 / W01 358 7244 / W013587244

Rubber bellows only
W01-139-0201 / W01 139 0201 / W01390201
