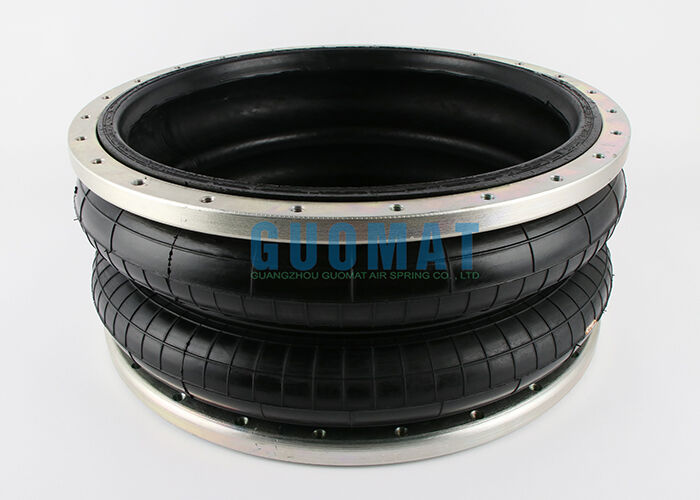

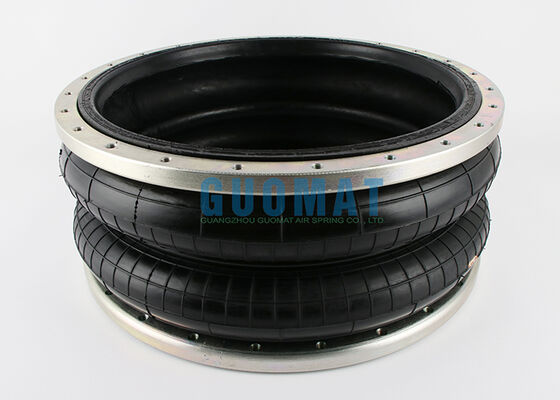

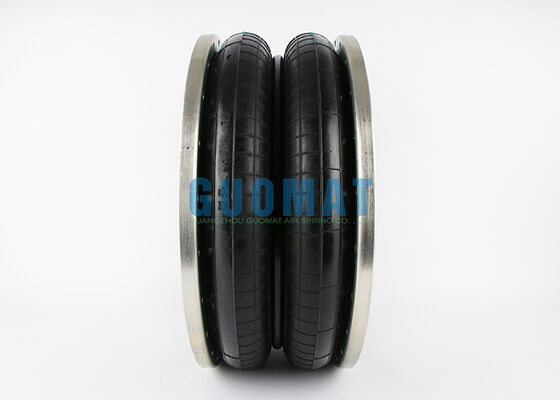

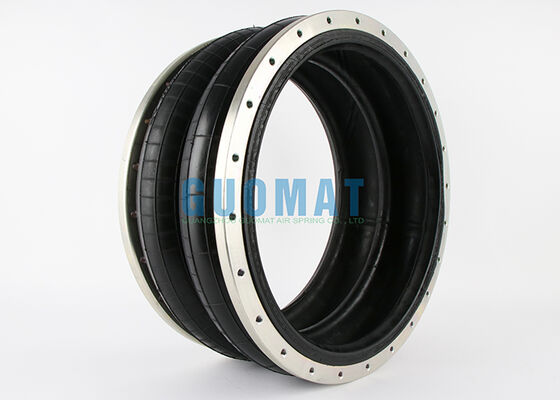

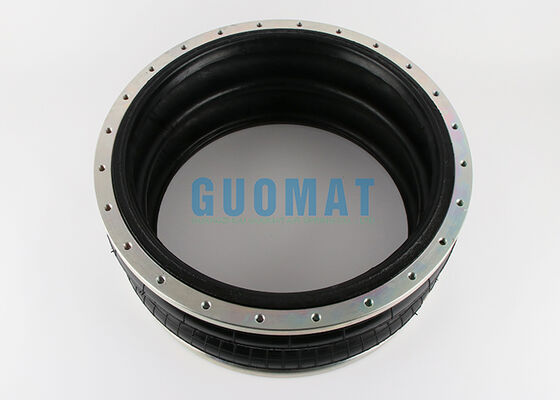

W01-358-7203 Industrial Air Actuator Firestone Style 29 Rubber Bellows Air Spring

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2H520217

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$199.9-$299.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Function:	Reduce Vibration	MOQ:	4PCS
Type:	Flange Connection Type	OEM:	Firestone W01-358-7203
Color:	Black	Shape:	Double Convoluted Air Spring
Warranty:	12 Months	Quality:	Good Quality
Highlight:	Industrial air spring rubber bellows , Firestone style 29 air actuator , Industrial air spring with warranty

W01-358-7203 Industrial Air Actuator Firestone Style 29 Rubber Bellows Air Spring

Product Overview

Specification	Details
Brand	GUOMAT
Model	2H520217
Material	Premium rubber and reinforced steel: Rubber components offer excellent flexibility and fatigue resistance; metal components are rust-proofed for long service life.
Structure Type	Double Convoluted
Warranty	1 year: We provide a solid guarantee for product quality.
Packaging	Standard brown cardboard box: Ensures good protection of the product during transportation; neat packaging.
Minimum Order Quantity	4 pieces

Replacement Firestone Part Numbers

Manufacturer: FIRESTONE | Style Number: 29

W01-358-7203

W01 358 7203

W013587203

Mounting & Dimensional Specifications

Mounting Interface

Flange Diameter: 20.36 inches - defines the overall width of the sealing and contact surface.
Bolt Pattern (Bolt Circle Diameter): 19.00 inches - specifies the circular arrangement of the mounting bolts for alignment.
Bolting Configuration: 24 units of 3/8-24 UNF threaded fasteners - indicates the quantity and standard thread type for secure attachment.

Envelope & Operational Range

Maximum Housing Diameter: 22.7 inches - the greatest outer width, important for spatial clearance during installation.
Nominal Installed Height: 9.5 inches - the reference height under standard assembly conditions.
Usable Stroke Range: 3.3 to 13.0 inches - the approved vertical displacement between fully compressed and fully extended positions.

Installation Procedure

Step	Key Operation	Technical Points & Illustration Notes
1. Positioning	Place the air spring between the upper die holder and the press frame top plate at the designated mounting location.	Alignment Requirement: The central axis of the spring must align with the press ram centerline, with a permissible deviation ≤ 0.2°. Diagram should indicate measurement points.
2. Bolt Pre-tightening	Insert bolts (e.g., 24 pieces of Grade 8.8 or higher) through the spring flange holes (e.g., 24×φ9.5mm) and into the frame's threaded holes. Tighten in stages.	Tightening Sequence: Follow a cross-diagonal pattern in two stages (first 50% torque, then 100% final torque). Torque value must comply with bolt specification (e.g., for 3/8-24 UNF, suggested torque is 28-32 N*m).
3. Pneumatic Connection	Connect the factory air supply line to the spring's inlet port via a filter regulator. Recommend using PT thread sealing.	Pressure Setting: Initial pressure should be set at 50% of the nominal working pressure (e.g., if working pressure is 8 bar, start at 4 bar), then fine-tune according to load.
4. Stroke Calibration	Jog the press manually and measure the actual extension/compression range of the spring.	Stroke Protection: Ensure the spring's stroke always remains within the specified range (e.g., 3.3-13 inches). This can be achieved by adjusting the frame's limit bolts.
5. Seal Verification	Pressurize the spring to 1.2 times the working pressure and hold for 15 minutes.	Leak Test Method: Apply soap solution to the flange mating surface. Check for continuous bubble formation. Allowable pressure drop ≤ 0.1 bar/minute.
6. Load Testing	Perform continuous stamping using standard test plates and monitor the spring's dynamic response.	Performance Criterion: The spring should maintain linear compression during operation without abnormal vibration or deviation. A laser displacement sensor can be used for monitoring.
