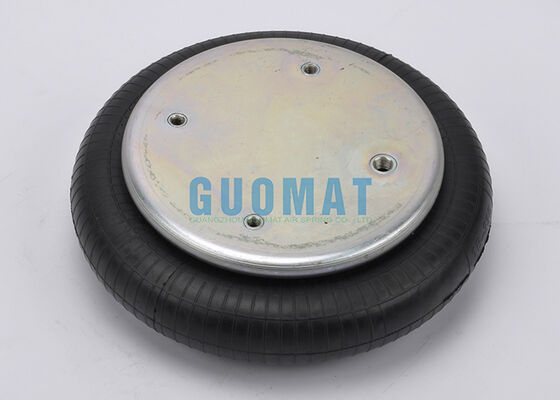

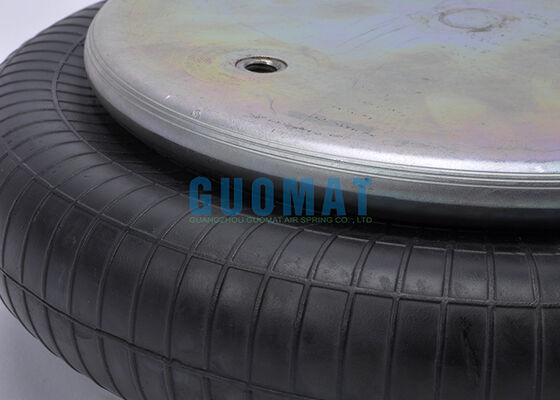

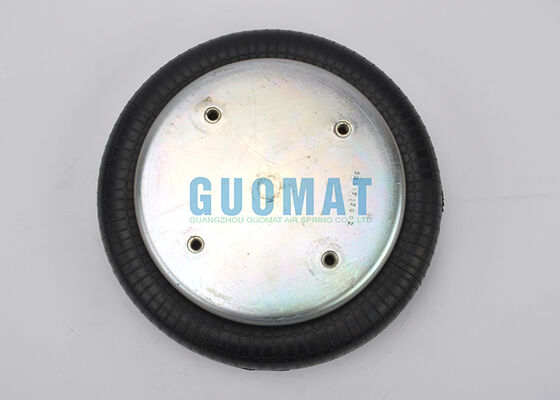

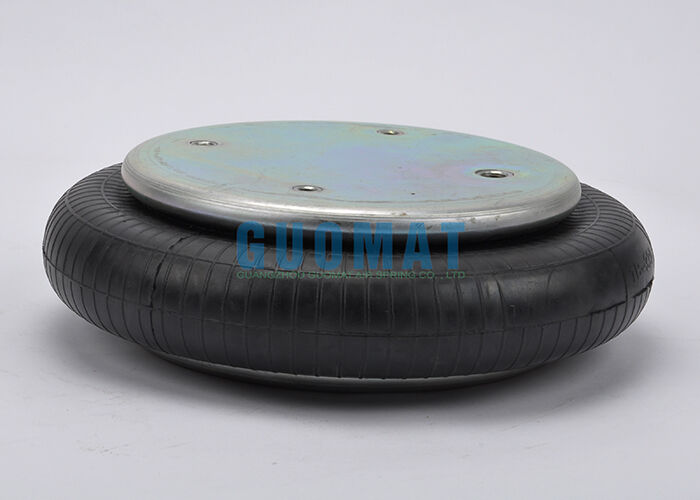

1B14-350 Goodyear Single Bellow Air Spring FS 530-14 442 Contitech Air Ride Suspension
Industrial air springs are flexible elastic elements that use compressed air as the elastic medium, mainly composed of a rubber air bladder, end caps, and connecting parts. By adjusting the internal air pressure, they can automatically change their height and stiffness under different loads, achieving functions such as shock absorption, load bearing, vibration isolation, and height adjustment.
Compared to traditional steel springs, industrial air springs have advantages such as a wider load range, better vibration absorption, greater adjustability, and smoother operation, and are widely used in industrial fields such as lifting platforms, conveying equipment, mechanical vibration damping, vehicle suspension, and automated equipment.
Product Details
- Brand: GUOMAT
- Model Name: Industrial Air Spring
- Model Number: 1B7103
- Warranty: 1 Year
- Material: Rubber and Steel
Manufacturer Numbers
Goodyear Bellows Numbers: 578913351, 578 91 3 351, 578-91-3-351
Goodyear Part Numbers: 1B14-350, 1B 14-350
Contitech Bellows Number: 64523
Contitech Part Numbers: FS530-14 442, FS 530-14 442
Firestone Bellows Number: 7103
Firestone Part Numbers: W013587103, W01 358 7103, W01-358-7103
| AUTOMANN |
ABSP1B34A-7103 |
| PEERLESS |
0550-00015 |
| TRIANGLE |
4442 |
| TRP |
AS71030 |
Technical Data
Top Plate Hole/Stud Qty:
4
Top Plate Dia:
11.3
Top Plate C to C Diameter:
6.25
Bottom Plate Hole Stud Qty:
4
Bottom Plate Dia:
11.3
Bottom Plate C to C Diameter:
6.25
Bottom Plate Alignment:
Parallel
Bumper:
No
Min Height:
2.3
Max Height:
7.2
Applications of Industrial Air Springs in Jacks
Air spring jacks are a new type of lifting device that utilizes compressed air filled into an industrial air spring, causing it to elastically deform and output a stable lifting force. By controlling the inlet air pressure, smooth, continuous, and adjustable lifting height and load output can be achieved, making them particularly suitable for working conditions requiring high lifting stability and synchronization.
Smooth Lifting with Minimal Impact
Air springs are flexible elastic elements, eliminating mechanical impact during lifting. They are particularly suitable for lifting precision equipment, leveling heavy equipment, and adjusting equipment in automated production lines.
High Load Capacity and High Safety
Industrial air springs can support loads ranging from hundreds of kilograms to tens of tons per unit. The internal gas pressure is uniform, minimizing localized stress concentration. Under overload or abnormal conditions, the air automatically buffers the load, making them safer than traditional hydraulic or mechanical jacks.
Excellent Synchronous Lifting Performance
When multiple air springs are supplied with air simultaneously, the following can be achieved: multi-point synchronous lifting and overall equipment leveling.
Simple Structure, Low Maintenance Cost
No risk of hydraulic oil leakage with even simpler structure. Daily maintenance only requires checking air tightness and rubber aging.
Technical Drawings
