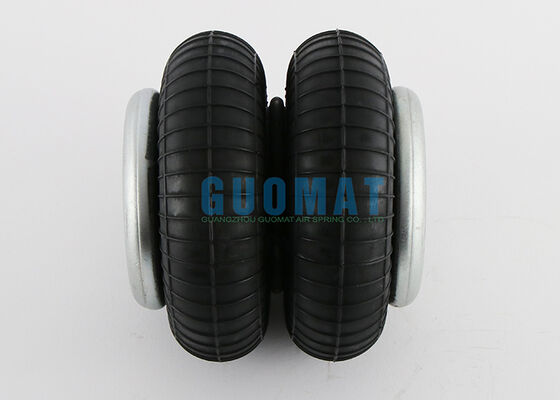

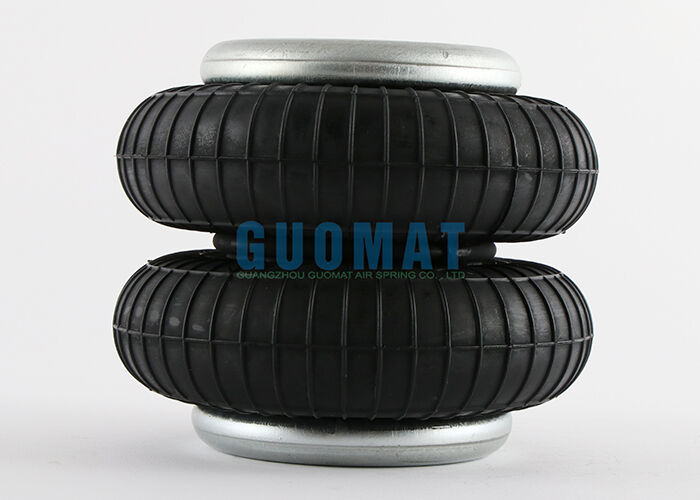

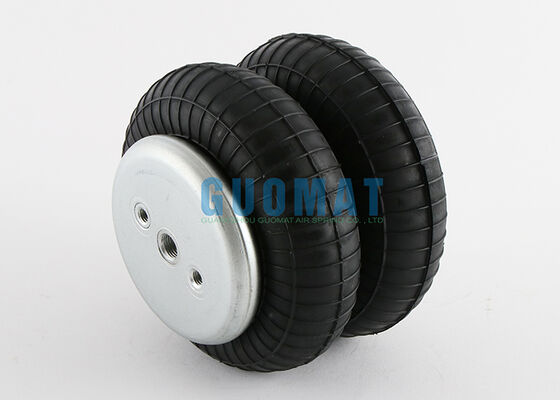

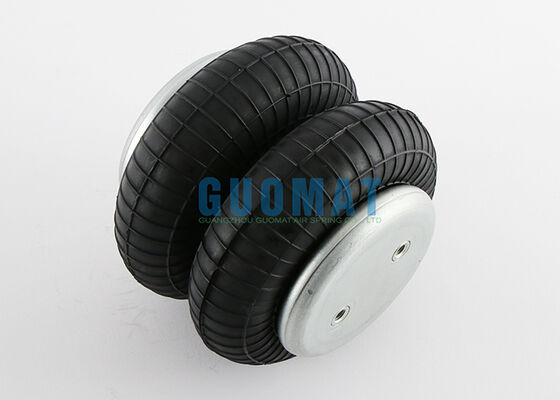

W01-358-7327 Firestone Rubber Air Spring Style 26 Air Suspension For Comfort Ride

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B12020

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Trademark:	GUOAMT	OEM Number:	W01-358-7327
Vibration Frequency:	2.7 HZ	Keywords:	Air Suspension Shock Absorber
Contitech:	FD 120-20 509	Goodyear:	2B8-550
Warranty:	12 Months	Material:	Rubber And Steel
Highlight:	Firestone rubber air spring , air suspension for comfort ride , style 26 air spring

W01-358-7327 Firestone Rubber Air Spring Style 26 Air Suspension For Comfort Ride

Product Overview

Air springs are highly durable, precisely designed, and cost-effective, making them ideal for various drive and vibration isolation applications. GUOMAT air suspensions incorporate a time-tested design, natural rubber flexible components, and corrosion-resistant end fittings, delivering outstanding quality and performance.

Product OEM Numbers

Firestone W01-358-7325
Firestone 26
Contitech FD 120-20 509
Goodyear 2B8-550
Goodyear 2B8-153
Goodyear 579-92-3-530
Triange 6392/4509

Manufacturer	Part Number
American Carrier	8003-006
E.R.F	1398567
Mack	227QS-32
Mack	57QK1113
Sauer	P10-754
SAF Holland	57007325
Ridewe	1003587325C
Watson&Chalin	AS-0030
Hendrickson	S-14395/NA1821
Terberg	21065660

Technical Parameters

Component	Specification
Nut / Blind Nut	Top Cover Plate Screw (Nut) Tooth: 2 pcs 3/8-16UNC
Screw Center Distance of Top Cover Plate	70 mm
Bottom Cover Plate Screw (Nut) Tooth	2 pcs 3/8-16UNC
Screw Center Distance of Bottom Cover Plate	70 mm
Gas Hole / Air inlet / Air Fitting	Gas Hole / Air inlet : 1/4NPTF
Cover Plate	Top Cover Plate Diameter: 135 mm
Bottom Cover Plate	Bottom Cover Plate Diameter: 135 mm
Rubber Bellows	Rubber Bellows Natural Diameter: 185 mm Natural Height: 196 mm

High-Quality Pneumatic Vibration Damping Solutions

GUOMAT rubber air springs are high-performance vibration damping components that use compressed air as the elastic medium. They are constructed from high-quality natural rubber, aging-resistant synthetic rubber, and high-strength fiber reinforcement layers, exhibiting excellent load-bearing capacity, flexible structure, and superior fatigue resistance. Their core function is to absorb vibrations and shocks from vehicles or equipment during operation, providing smooth and reliable support for various transportation and industrial applications.

Key Features

Superior Performance: High elasticity and low vibration transmission with automatic height adjustment capability
Long Lifespan Design: Normal service life is 2-4 times that of traditional leaf springs
High Adaptability: Suitable for various harsh road conditions and complex operating environments

Applications

Commercial Vehicles: Truck suspension, trailer suspension, lift shafts, cab damping, seat damping
Buses and Coaches: Enhanced ride comfort and reduced structural stress
RVs & Converted Vehicles: Adjustable suspension height and smoother handling
Industrial Machinery: Vibration isolation for equipment such as vibrating machines, punch presses, lifting platforms, automated equipment, fans, and compressors
Structural Applications: Bridge and building vibration isolation to reduce structural resonance
