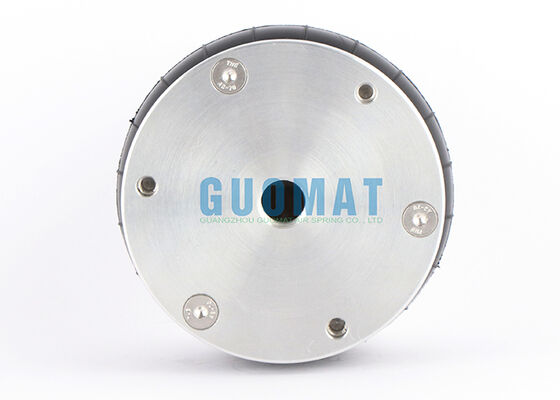

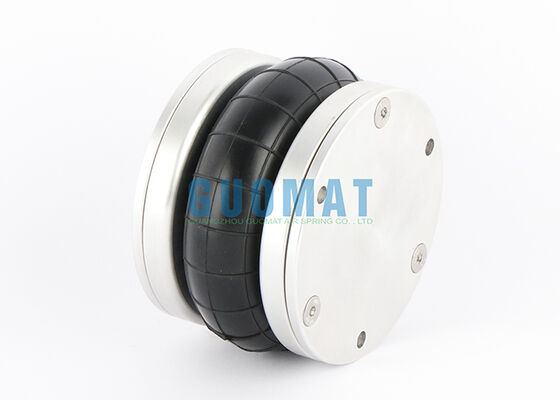

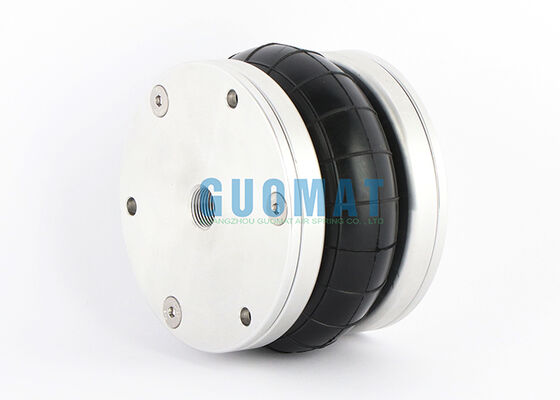

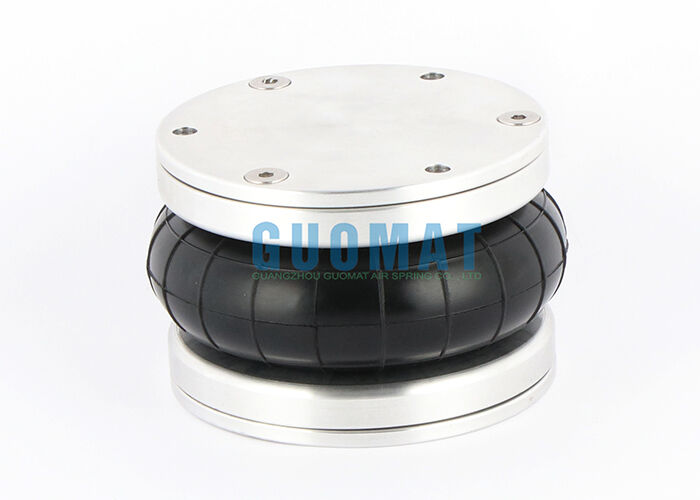

41/2''X1 Single Convoluted Type Air Spring FS 44-5 DI Contitech Air Bags For Stamping Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/Ts16949:2009
Model Number:	1B4.5X1T

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$119.9-$139.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Spring Material:	Rubber And Steel	Bellow Structure:	Double Cylinder
Pressure Ability:	0.2-0.8 M PA	After-sales Service:	12 Months
Type:	Gas-Filled	Bellows Number:	41/2''x1
Contitech:	FS 44-5	Other Name:	Pneumatic Vibration Isolator
Highlight:	Contitech air spring for stamping machine , Single convoluted air spring FS 44-5 , Industrial air spring with warranty

41/2''X1 Single Convoluted Type Air Spring FS 44-5 DI Contitech Air Bags For Stamping Machine

Brand: GUOMAT
Model Name: 1B4.5X1T
Material: Rubber Bellows+Aluminum Cover Plate
Warranty: 12 Months from Delivery Date

An industrial air spring is a vibration isolation and load-support component that uses compressed air as the elastic medium. Made of reinforced rubber with multi-ply fabric construction, it effectively absorbs shock and reduces noise. With adjustable load capacity and height, it offers excellent isolation performance, long service life, and low maintenance, and is widely used in press machines, bending machines, automation equipment, and industrial machinery.

Cross Reference / Equivalent Part Numbers

Continental ContiTech ®

FS 44-5 - 70205
FS 44-5 DI CR - 70205
FS 44-5 G3/8 M6
FS 44-5 DI CR G3/8
FS 44-5 DI CR G3/8 M6
FS 44-5 DI G3/8 CR
FS 44-5 DI CR / FS44-5 DI CR / FS445 DI CR
ContiTech Bellow: FS 44-5 / FS44-5 / FS445

Firestone ®

W01-R58-4050
W01R58 4050
W01R584050
Firestone Style: 4½" × 1 / 4½" × 1 / 4½" × 1

Dunlop ®

FR: 4½" × 1 - SP2334
Dunlop UK (Pneuride): PNP 30559 0106 / PNP305590106

Norgren ®

M/31041
M 31041
M31041

Parker ®

9109400

Nominal Size

4½" × 1 convolution
4½" × 1 / 4½" × 1 / 4½" × 1

Technical Data

The cover plate diameter is 110mm, the center distance between the threaded holes is 93mm, and the vent specification is G3/8. The natural outer diameter is 120mm, and the natural height is 78mm.

1 Convolution Air Spring Comparison

GUOMAT	FIRESTONE	CONTITECH	DUNLOP PN	DUNLOP SP	NORGREN
1B2.75x1T		FS 22-3 DI	2 3/4''X1	SP2906
1B4.5X1T	W01-R58-4050	FS 44-5 DI	41/2''X1	SP2334	PM/31041
1B6X1T	W01-R58-4078	FS 76-7 DI	6''X1	SP2913	PM/31061
1B6X1T	W01-R58-4052	FS 76-7 DI	6''X1	SP1536	M/31061
1B8X1T	W01-R58-4054	FS 138-8 DS	8''X1	SP1537	M/31081
1B10X1T	W01-R58-4057	FS 210-10 DS	10''X1	SP2523	M/31101
1B12X1T	W01-R58-4060	FS 412-10 DS	12''X1	SP1540	M/31121
1B14.5X1T	W01-R58-4063	FS 614-13 DS	141/2''X1	SP1543	M/31141
1B16X1T	W01-R58-4066	FS 816-15 DS	16''X1		M/31161
