Natural Rubber Bellows 3B12-319 Goodyear Industrial Air Spring 578-93-3-100 Triple Convoluted

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	3B8032

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$69.9-79.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Industrial Air Spring	Spring Material:	Rubber + Steel
Product Warranty:	12 Months	Condition:	Brand-New
Application:	Paper Machine	Goodyear:	3B12-319/578-93-3-100
MOQ:	6PCS	Bellows Type:	Triple
Highlight:	Goodyear industrial air spring , natural rubber bellows air spring , triple convoluted air spring

Natural Rubber Bellows 3B12-319 Goodyear Industrial Air Spring 578-93-3-100 Triple Convoluted

Product Overview

The GUOMAT 3B8032 industrial air spring is a high-efficiency vibration damping and load regulation solution for industrial equipment, widely used in machinery, transportation equipment, and lifting platforms. It effectively absorbs shocks and vibrations during equipment operation by providing excellent damping and vibration isolation performance, ensuring equipment stability and a long service life. The GUOMAT 3B8032 air spring uses high-strength rubber and reinforced fiber construction, offering strong load-bearing capacity and durability.

Product Specifications

Brand: GUOMAT
Model: 3B8032
Working Pressure Range: 2-7 BAR
Mounting Type: Bolted Connection
Material: Rubber and Iron
Temperature Range: -30~+70℃
Warranty: 1 Year
Applicable Industries: Industrial equipment, transportation equipment, lifting platforms, etc.

Cross Reference Numbers

Manufacturer	Part Numbers
GOODYEAR	3B12-319 / 3B 12-319 / 3B12 319 578-93-3-100 / 578 93 3 100 / 578933100
CONTITECH	64560 FT330-29 413 / FT 330-29 413
FIRESTONE	8032 W01-358-8032 / W01 358 8032 / W013588032
AUTOMANN	ABSP3B22R-8032
HENDRICKSON	B-12405 S-12405
TRIANGLE	4413
TRP	AS80320
WATSON & CHALIN	AS-0048

Technical Data

Item	Specification
Top Plate	2 holes/studs, 9-inch diameter, 5.5-inch center distance
Bottom Plate	2 holes/studs, 9-inch diameter, 6.2-inch center distance, 90° to top plate
Internal Bumper	Included
Operating Height	4.5 in (Min.) to 18.0 in (Max.)
Total Stroke	13.5 in (Calculated)

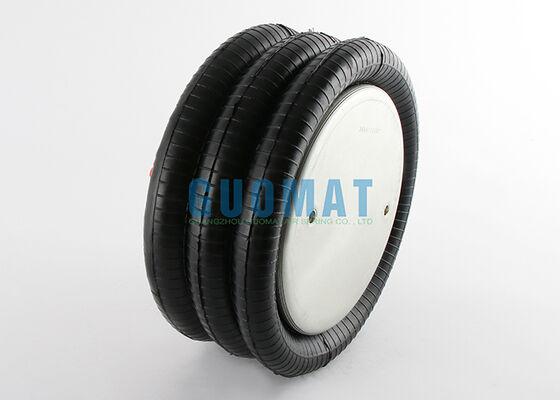

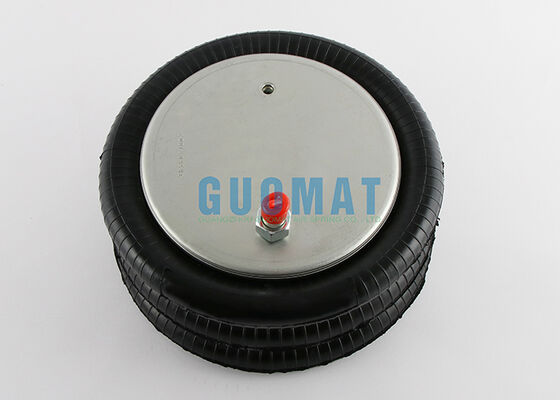

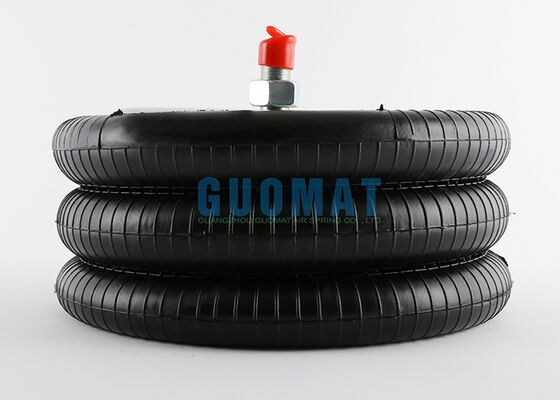

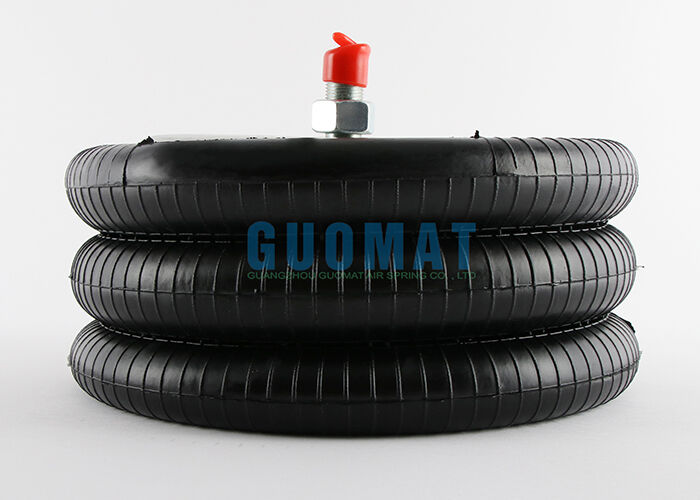

Product Images

Applications in Papermaking Equipment

In papermaking equipment, air springs are primarily used to provide vibration damping, load regulation, and height control to ensure the stability and efficient operation of the equipment. Because papermaking equipment typically involves high-speed operation, heavy loads, and frequent impacts, the application of air springs is particularly important.

Vibration Damping and Isolation

Papermaking equipment, such as paper machines, presses, and dryers, generates significant vibrations and impacts during high-speed operation. Air springs absorb these vibrations, reducing their transmission to other components and infrastructure, minimizing equipment wear, and ensuring a stable production environment.

Improved Production Accuracy

Air springs can automatically adjust pressure according to different load changes, ensuring smooth and consistent operation of the equipment. This is crucial for pressure regulation and paper flatness in paper machines, ensuring the quality of the final product.

Load Regulation

During the papermaking process, especially in the pressing and drying stages, the load on the equipment constantly changes. Air springs automatically adjust according to the load, maintaining equipment stability and ensuring that the equipment's operational accuracy and stability remain unaffected under various working conditions.

Extended Equipment Lifespan

Air springs effectively dampen vibrations, reducing the impact and friction of machine vibrations on various components, thus helping to extend the equipment's lifespan. Especially in the environment of long-term high-load operation of papermaking equipment, air springs can significantly reduce maintenance frequency and downtime.

Improved Operational Safety

Due to the vibration damping function of air springs, the vibration and noise experienced by the operator are reduced, contributing to improved operational safety and comfort, especially during long-term operation.
