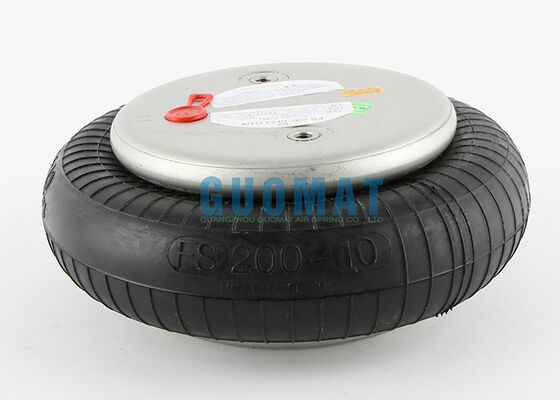

Contitech FS200-10 Industrial Air Spring W01-M58-6374 Firestone Bellows Air Lift Shock
The Contitech FS200-10 Industrial Air Spring is a high-performance single convoluted air suspension airbag designed for superior shock absorption, stable load-bearing capacity, and precise height adjustment in demanding industrial and vehicle applications.
Product Specifications
Type: Single Convoluted Air Suspension Airbag
Brand: Contitech
Model Number: FS200-10
Condition: Brand New
Material: Rubber + Steel
Warranty: 12 Months
Delivery Time: 2-8 working days
Manufacturer Part Numbers
Original ContiTech: Fs 200-10 60030
Original ContiTech: FS 200-10 1/4 M8
Original ContiTech: Fs 200-10 G1/4 M8
Original ContiTech: Fs 200-10 Cl G1/4
Original ContiTech: FS 200-10 CI G1/4 M8
Original ContiTech: FS 200-10 CI/FS200-10C1/FS20010C1
Original ContiTech Bellow: FS 200-10/FS200-10/FS20010
Firestone No.: W01-M58-6375/W01 M58 6375/WO1M586375
Firestone Style: 115Bosch: 822419009
Weforma: WBE 400-E2/WBE400-E2/WBE400E2
Weforma: WBE 410-E1/WBE410-E1/WBE410E1
Airtech: 111006
Airtech Ref: 1B-220/1B 220/1B220
Guomat: 1B20010
Applications
The FS200-10 ContiTech air spring is widely used in vehicle and industrial suspension systems where reliable shock absorption, stable load-bearing capacity, and height adjustment are required. Its robust design ensures optimal performance across various operating conditions.
Vehicle Applications: Commonly installed in trucks, trailers, and specialized vehicles, this air spring uses compressed air to effectively absorb road impacts and vibrations, enhancing ride comfort while maintaining vehicle height stability under varying load conditions.
Industrial Applications: Used for equipment vibration isolation, support, and height adjustment in industrial platforms, machine bases, and automated production lines. It protects equipment precision while reducing noise and improving operational stability.
The FS200-10 is particularly suitable for applications with frequent load changes or height adjustments, ensuring consistent performance across different operating conditions while extending service life and reducing maintenance costs.
Technical Specifications
| Height H (mm) |
3 bar |
4 bar |
5 bar |
6 bar |
7 bar |
8 bar |
Vol.V(I) |
| 120 | 4.48 | 6.23 | 8.21 | 10.4 | 12.1 | 13.8 | 2.8 |
| 110 | 5.46 | 7.47 | 9.63 | 11.9 | 13.9 | 15.7 | 2.6 |
| 100 | 6.33 | 8.55 | 11 | 13.4 | 15.5 | 17.5 | 2.4 |
| 90 | 7 | 9.41 | 12.1 | 14.6 | 17 | 19.1 | 2.2 |
| 80 | 7.55 | 10.2 | 13 | 15.7 | 18.2 | 20.6 | 1.9 |
| 70 | 8.09 | 10.9 | 13.6 | 16.5 | 19.3 | 21.9 | 1.6 |
| 60 | 8.5 | 11.3 | 14.2 | 17.1 | 20.1 | 23 | 1.3 |
