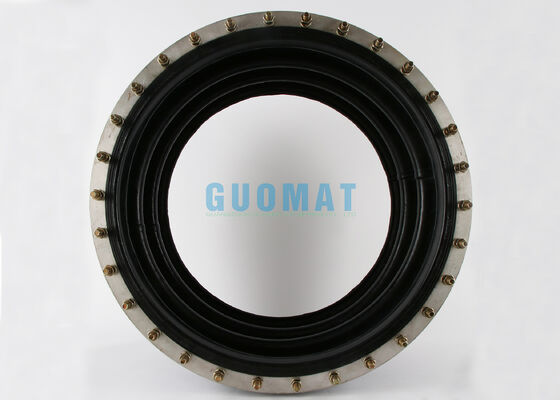

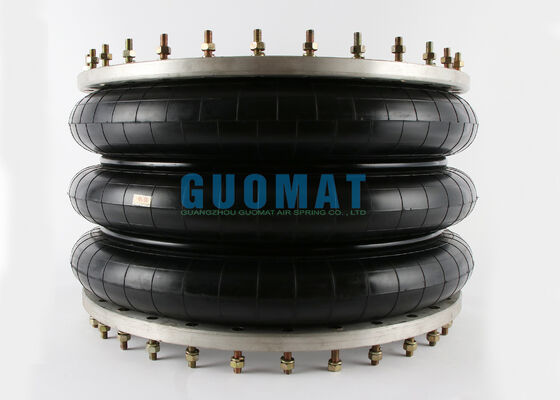

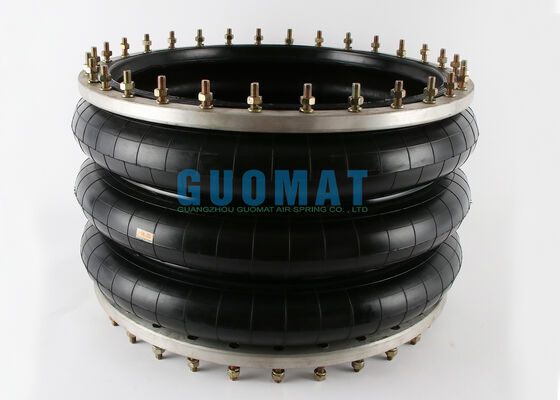

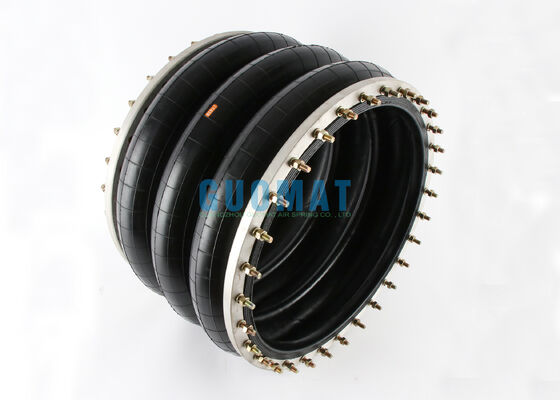

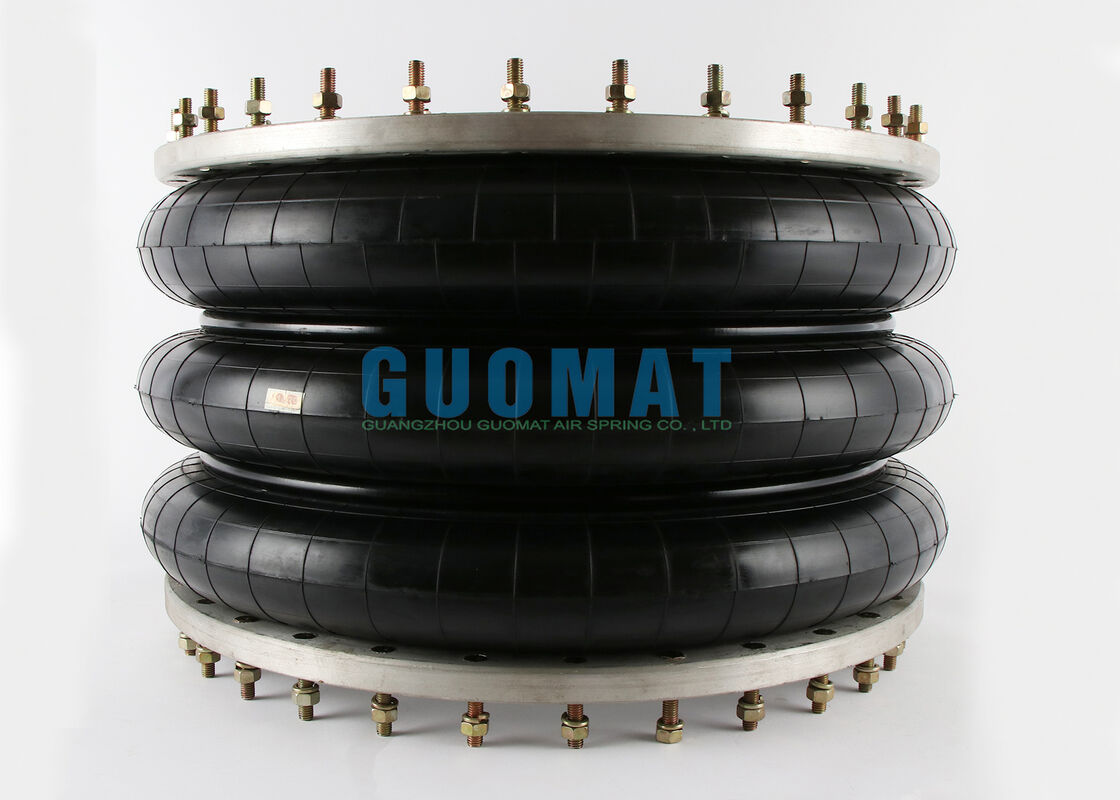

W01-358-9603 Firestone Flange Air Spring 348-3 Style Triple Convoluted Industrial Air Shock

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	3H6903

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$599.9-799.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Rubber + Steel	Warranty:	12 Months
Bellows Type:	Triple Convoluted	Sample:	Available
Operation:	Gas-filled	Air Inlet:	1/4NPT
Firestone:	W01-358-6903/348-3	Bolt:	403/8-24
Highlight:	Firestone flange air spring , industrial air shock triple convoluted , 348-3 style air spring

W01-358-9603 Firestone Flange Air Spring 348-3 Style Triple Convoluted Industrial Air Shock

W01-358-9603 Firestone Flange Air Spring 348-3 Style Triple Convoluted Industrial Air Shock

Product Information

Item	Air Spring/Shock Absorber Spring/Air Bellows
Brand	GUOMAT
Model No.	3H6903
Material	Rubber And Steel
Warranty	1 Year
MOQ	1 PCS If We Have Stock
Package	(1) Bubble Bag And Brown Carton (2) Customer Require Packaging (3) Normal Exported Package
Delivery Time	2-8 Working Days
Payment	T/T, L/C, PayPal, Western Union

Cross-Reference Part Numbers

FIRETSONE W01-358-9603
FIRETSONE W01 358 9603
FIRETSONE W013589603
FIRETSONE Style 348-3

Technical Specifications

Flange diameter: 35.04 inches

Center distance between bolts: 32.68 inches

Maximum outer diameter: 37.4 inches

Maximum height: 23 inches

Minimum height: 5.5 inches

Performance Data

Assembly Height (in.)	Volume @ 100PSIG (in³)	Pounds Force
		@20PSIG	@40PSIG	@60PSIG	@80PSIG	@100PSIG
18.0	15946	14080	27430	43790	57710	74670
16.0	14340	15190	30370	46420	62810	80190
14.0	12634	16230	32380	49170	66610	84820
12.0	10843	17330	33880	51470	69410	89150
10.0	8984	18290	35370	53580	71930	93030
8.0	7075	19070	36970	55590	74740	96470
6.0	5102	19760	38620	57550	77790	99680
