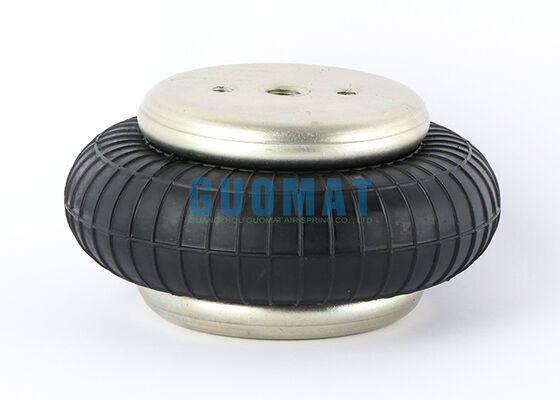

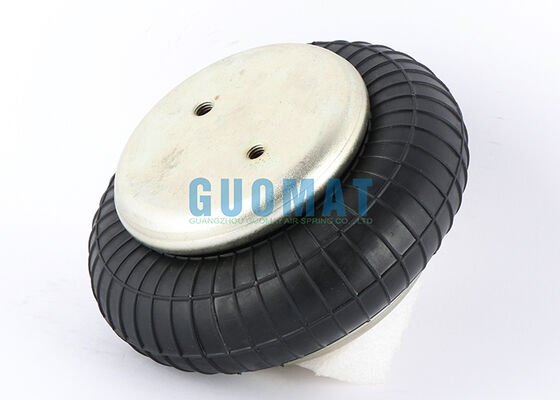

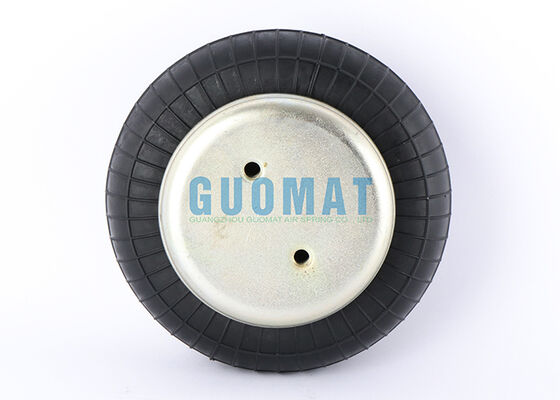

1B7070 GUOMAT Single Convoluted Air Bellows FS70-7 Contitech 2681015000 Industrial Air Spring

1B7070 GUOMAT Single Convoluted Air Bellows FS70-7 Contitech 2681015000 Industrial Air Spring

Product Details:
Place of Origin: GuangDong, China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 1B7070
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: $49.9-59.9/pc
Packaging Details: Strong Carton Box Or As Customers Need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Type: Industrial Air Spring/Rubber Air Bellow Material: Rubber+Steel
Warranty: 12 Months Warranty Operation: Gas-filled
Usage: Industrial Equipment Contitech: FS70-7/2681015000
Brand: GUOMAT
Highlight:

GUOMAT single convoluted air bellow

,

Contitech industrial air spring

,

FS70-7 air spring with warranty

1B7070 GUOMAT Single Convoluted Air Bellows FS70-7 Contitech 2681015000 Industrial Air Spring
GUOMAT Air Spring is a high-performance industrial air spring that uses compressed air as its working medium to achieve excellent load-bearing support and vibration damping functions.
Brand: GUOMAT
Model Number: 1B7070
Compatible Replacement Models:
Contitech: FS70-7, FS 70-7, 2681015000
Phoenix: SP1B05, SP 1B 05
B-osch: 822419002
Festo: EB-165-65
Weforma: WBE200-E1, WBE 200-E1
Technical Specifications
Top cover diameter: 105mm
Air connection specification: G1/4
Threaded hole on top cover: 2xM8x1.25
Center distance between threaded holes on top cover: 44.5mm
Bottom cover diameter: 105mm
Threaded hole of bottom cover: 2xM8x1.25
Center distance between bottom cover threaded holes: 44.5mm
Maximum outer diameter: 165mm
Natural outer diameter: 150mm
Stroke range: 50mm minimum - 115mm maximum
Pressure vs. Height Performance Data
Height H (mm) 3 bar 4 bar 5 bar 6 bar 7 bar 8 bar VoI.V(I)
100 2.23 3.09 3.96 4.82 5.74 6.58 1
90 2.66 3.61 4.57 5.55 6.54 7.5 0.9
80 3.05 4.06 5.12 6.17 7.25 8.28 0.8
70 3.38 4.45 5.59 6.7 7.87 8.95 0.69
60 3.63 4.8 6 7.19 8.4 9.51 0.57
1B7070 GUOMAT Single Convoluted Air Bellows FS70-7 Contitech 2681015000 Industrial Air Spring 0
