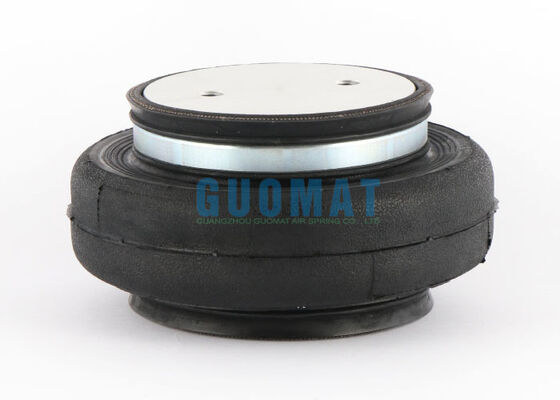

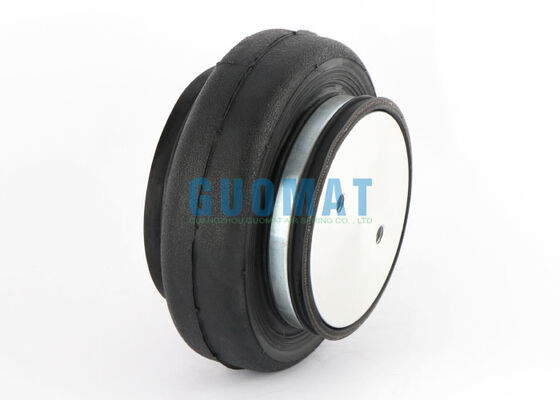

1K130070 GUOMAT Air Spring Replacement 1B5 579-913-500 Goodyear Air Bellow

Product Details:

Place of Origin:	United Kingdom
Brand Name:	Norgren
Certification:	ISO/TS16949:2009
Model Number:	1K130070

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD49.9-59.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

N.W.:	2 Kg	Pressure Ability:	0.2-0.8 M PA
Usage:	Industrial	Load Type:	Compression
Shape:	Convoluted	GUOMAT:	1K130070
Color:	Black	Type Name:	Convoluted Air Spring
Highlight:	GUOMAT air spring replacement , Goodyear air bellow 1B5 , industrial air spring with warranty

1K130070 GUOMAT Air Spring Replacement 1B5 579-913-500 Goodyear Air Bellow

GUOMAT gas springs offer adjustable elasticity, a wider stroke range, and more stable dynamic performance, making them widely used in industries such as automation and packaging machinery.

Product Specifications

Brand: GUOMAT
Model Number: 1K130070
OEM Manufacturer: Goodyear
OEM Numbers: 1B5, 578-913-500, 578 913 500, 578913500

Technical Data

Design height: 70mm
Maximum height: 90mm
Minimum height: 55mm
Maximum outer diameter at 0.7Mpa: 150mm
Cover plate diameter: 85mm
Air connection: G1/4
Threaded hole: M8
Center distance between threaded holes: 44.5mm

Performance Specifications

Carrying Capacity	Inflation Pressure 0.2 MPa	0.3 MPa	0.4 MPa	0.5 MPa	0.6 MPa	0.7 MPa	0.8 MPa	Volume at 0.7MPa (dm³)
50 mm	157	219	286	376	450	523	611	0.24
60 mm	122	122	252	328	404	472	545	0.37
70 mm	107	170	238	304	377	439	501	0.46
80 mm	100	153	203	264	323	378	432	0.52
90 mm	73	112	160	209	260	300	334	0.58
100 mm	11	45	79	113	148	169	190	0.62

Stiffness and frequency at design height	Vertical Stiffness Kg/cm	60	89	119	148	181	189	208
Natural Frequency Hz	1.23	1.19	1.17	1.15	1.14	1.08	1.06
cpm	74	71	70	69	68	65	64

GUOMAT Air Spring Performance Characteristics

High-Efficiency Vibration Reduction and Buffering: Utilizes the compressibility of gas to provide smooth force feedback under stress, effectively absorbing impact energy, reducing vibration propagation, and improving equipment lifespan and positioning accuracy.
Wide Load Range: Different load-bearing capacities can be designed to adapt to various load conditions, from light to heavy, based on changes in air pressure and structure.
Adjustable Stroke: Optimal support and elasticity characteristics can be achieved within different working stroke ranges by adjusting the internal gas pressure, improving equipment flexibility and adaptability.
Fast Response Speed: Gas springs have a fast response, quickly adjusting the support force under dynamic load changes.
High Durability: Using wear-resistant and heat-resistant rubber, reinforced composite materials, and high-quality seals, they are resistant to aging and fatigue, exhibiting stable performance in high-frequency operating environments.
Convenient Installation and Maintenance: Modular design and standardized interfaces make installation simpler, on-site commissioning easier, and subsequent maintenance more convenient.
