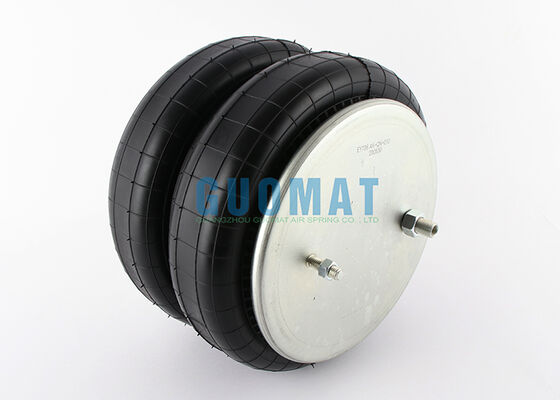

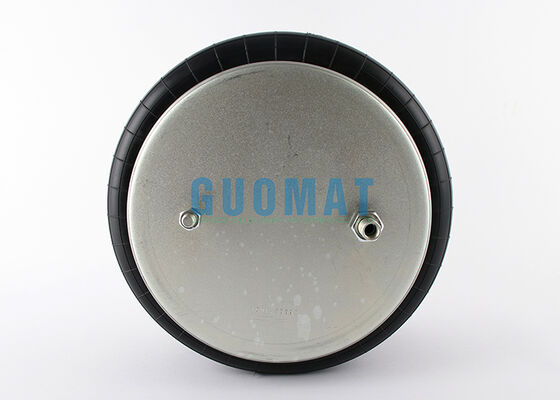

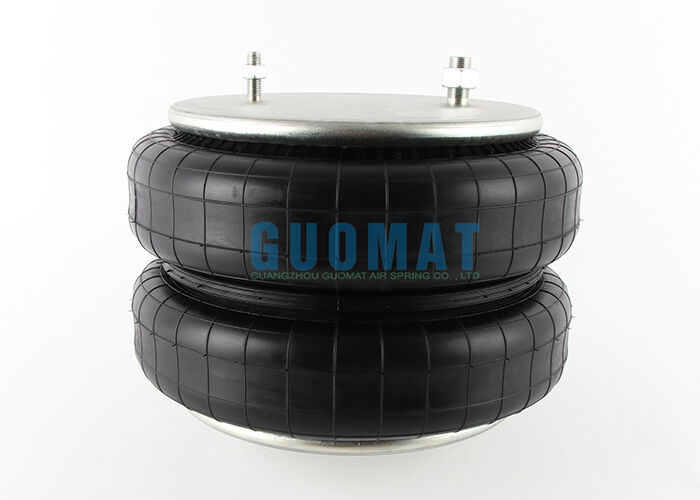

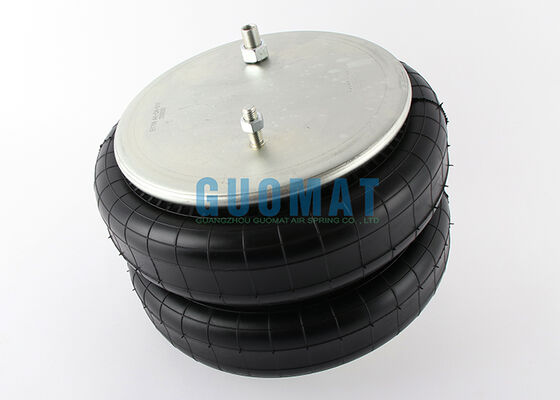

2B9-265 Goodyear Double Convoluted Air Spring 578-92-3-206 Rubber Air Bellows Spring

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B9265

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD59.9-69.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Name:	Industrial Air Spring	Brand:	GUOMAT
Quality:	100 % Tested	Fuction:	Reduce Shock
Warranty:	12 Months	Spring Type:	Air Spring
Convolutions:	2	Goodyear:	2B9-265/578-92-3-206
Highlight:	Goodyear double convoluted air spring , Rubber air bellow spring , Industrial air spring with warranty

2B9-265 Goodyear Double Convoluted Air Spring 578-92-3-206 Rubber Air Bellows Spring

Product Information

Brand: GUOMAT

Model: 2B9265

Manufacturer	Part Numbers
Goodyear	2B9-265, 2B 9-265, 578-92-3-206, 578923206, 578 92 3 206
Contitech	64512, FD200-19 448, FD 200-19 448
Firestone	W01-358-6941, W01 358 6941, W013586941

AUTOMANN	ABSP2B12R-6941
TRP	AS69410

Technical Specifications

Screw center distance of top cover plate: 3.38

Screw center distance of bottom cover plate: 3.50

Top plate diameter (width): 6.40

Diameter of bottom cover (width): 6.40

Maximum height: 12.2

Minimum height: 3.8

Working stroke: minimum 3.8 to maximum 12.2

Cross Reference Numbers

Cross Reference	OE Manufacturer/Part No.
Firestone Style 20 Firestone No. W01-358-6941 FleetPride AS6941 Goodyear 2B9-280 Goodyear 2B9-265 Goodyear Flex No. 578923211 Goodyear Flex No. 578923206 Taurus 6325 Triangle AS-4448 TRP AS69410 Automann SP2B12R-6941	Granning 7631 Histeer 10302 Link 1103-0002 Loadguard SC2124 SAF Holland 57006941 Suspensions.Inc. 200118

Advantages in Industrial Lifting Platforms

In modern industrial production, lifting platforms face higher demands for stability, safety, and smooth operation. Industrial air springs, as core support and shock-absorbing components of lifting platforms, are being widely adopted by an increasing number of manufacturing enterprises and automation systems.

Using compressed air as the elastic medium, industrial air springs can automatically adjust the support force according to load changes, ensuring stable operation of the lifting platform under both light and heavy load conditions. Whether it's frequent lifting, heavy material handling, or high-precision equipment docking, air springs effectively prevent platform swaying and impact, significantly improving overall operational safety.

Compared to traditional rigid support structures, air springs offer superior shock absorption and cushioning performance. During platform start-up, stopping, and lifting, they can significantly absorb impact energy, reduce vibration transmission, protect the platform structure and supporting equipment, extend equipment lifespan, and reduce maintenance and repair costs.

Furthermore, industrial air springs also possess excellent height adjustment and automatic leveling capabilities. When the platform load is unevenly distributed, the air spring can quickly adjust the air pressure to keep the platform level, improving operational accuracy. It is particularly suitable for automated production lines, warehousing and logistics systems, and precision equipment handling scenarios.

With its high load-bearing capacity, stable operation, flexible installation, and low maintenance costs, industrial air springs have become the ideal choice for upgrading and optimizing industrial lifting platforms, providing enterprises with more efficient, safer, and more reliable production solutions.
