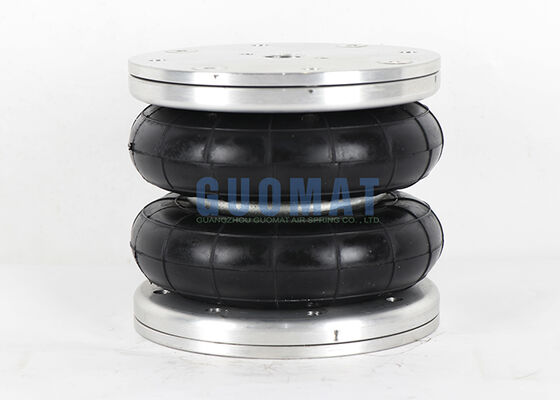

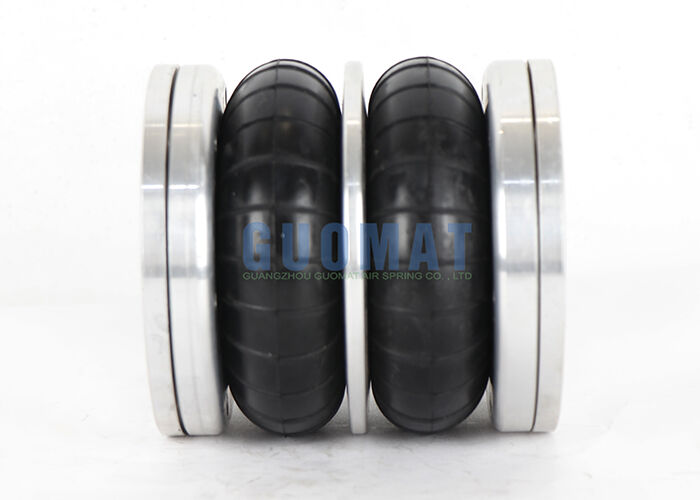

2¾" x 2 Rubber Bellows Air Bags FD 22-4 DI CR Contitech Air Spring Replacement

Product Details:

Place of Origin:	Germany
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B2.75X2

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD139.9-159.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Part:	Air Spring	Fuction:	Reduce Shock
Specification:	Rubber	Type:	Gas-Filled
Application:	Vibratory Conveyors	Dunlop:	2¾" X 2
Contitech:	FD 22-4 DI	Color:	Black
Highlight:	2¾ inch rubber bellows air spring , Contitech air spring replacement , FD 22-4 DI CR air bag

2¾" x 2 Rubber Bellows Air Bags FD 22-4 DI CR Contitech Air Spring Replacement

Product Overview

An industrial air spring is a shock-absorbing and load-bearing element that uses compressed air as the elastic medium. It mainly consists of a high-strength rubber air bladder, end caps, and connecting parts. By adjusting the internal air pressure, it can support, buffer, and adjust the height of the load.

Brand: GUOMAT
Model Number: 2B2.75X2
Material: Rubber and Steel
Warranty: 1 Year

Compatible Part Numbers

Continental ContiTech: FD 22-4 Dl G1/4 CR	Continental ContiTech: FD 22-4 DI G1/4 CR M6
Continental ContiTech: FD 22-4 DI CR G1/4	Continental ContiTech: FD 22-4 DI CR G1/4 M6
Continental ContiTech: FD 22-4 DI CR 69342	Continental ContiTech Bellow: FD 22-4/FD 22 4/FS224
Firestone No.: WO1-R58-4080/W01R58 4080/W01R584080	Firestone Style: 2¾4"x2/234"x2/234x2
Dunlop FR: 2¾"x2 SP2907	Dunlop FR: 2¾"x2 SP2042
Norgren: PM/31022/PM 31022/PM31022	Nominal 0(inch) xconvolutions: 23"x2/234"x2/234x2
Festo: EB-80-45/EB 80 45/EB8045	Parker: 2.3/4x2 9109009

Product Dimensions

Maximum Diameter	78mm
Space Required	95mm
Minimum Height	65mm
Maximum Height	115mm
Total Stroke	50mm
Static Height	92mm
Effective Area at Static Height	25.5cm²
Bellows Weight	0.26kg

Applications in Forging Equipment

In forging equipment (such as forging hammers, hot forging presses, and free forging equipment), air springs are typically installed in the slide return system, die buffer system, or equipment base to absorb impact energy and stabilize equipment operation.

Main Application Locations

Forging Hammer Return and Buffer System: Utilizing the compressibility of air springs, the hammer head returns smoothly, reducing the impact of metal collisions.
Die Buffering and Protection: Installed in the upper and lower dies or support structures, air springs buffer the high impact load during forging, extending die life.
Equipment Base Vibration Reduction: Effectively isolates the strong vibrations generated during forging, reducing the impact on the plant foundation.
Pressure Balancing and Stroke Control: By adjusting the air pressure, pressure and stroke matching can be achieved under different forging conditions.
