2B9-280 Goodyear Vibration Isolator Air Spring 578-92-3-211 Industrial Rubber Air Bellows

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B9280

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	US$59.9-69.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Pressure Ability:	0.2-0.8 M PA	Structure:	Double Convoluted
Quality:	100% Tested	Material:	Natural Rubber
Goodyear:	2B9-280/578-92-3-211	Firestone:	W01-358-6941
Other Name:	Pneumatic Air Bag	Applications:	Injection Molding Machine
Highlight:	Goodyear air spring vibration isolator , industrial rubber air bellows , Goodyear air spring with warranty

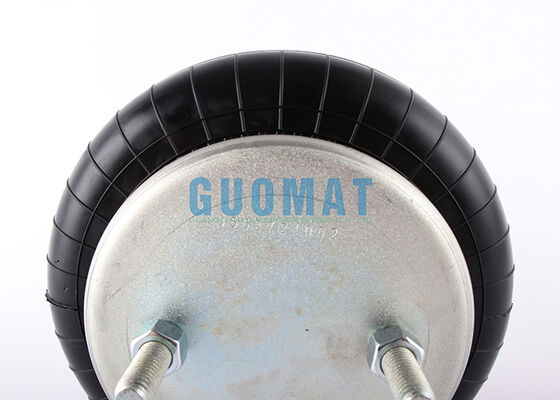

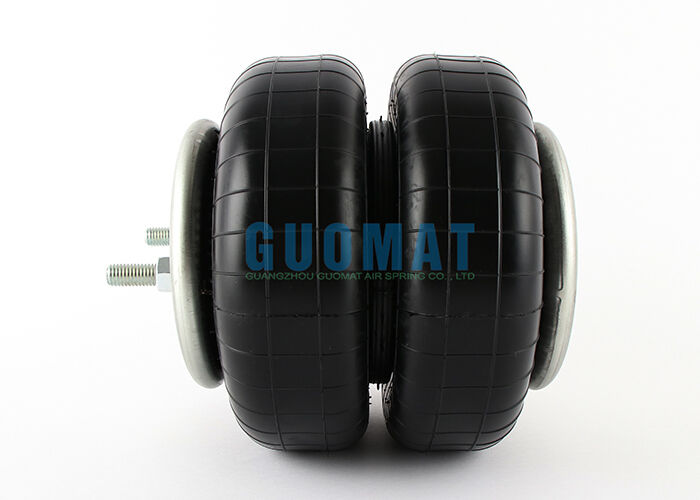

2B9-280 Goodyear Vibration Isolator Air Spring 578-92-3-211 Industrial Rubber Air Bellows

Product Overview

The GUOMAT 2B9280 Industrial Air Spring is a high-quality rubber air bellows designed for vibration isolation, load support, and shock absorption in industrial applications.

Manufactured with durable rubber and reinforced metal components, this air spring delivers stable performance, long service life, and reliable operation under demanding working conditions.

Material: Rubber + Steel
Brand: GUOMAT
Model: 2B9280
Warranty: 1 Year

OEM & Cross Reference Numbers

Goodyear: 2B9-280 / 578-92-3-211, 2B 9-280 / 578 92 3 211, 2B9 280 / 578923211

ContiTech: 64512 / FD 200-19 448, FD200-19 448, FD200-19448

Firestone: 6941 / W013586941, W01 358 6941, W01-358-6941

Histeer: 10302

Triangle: 4448

TRP: AS6941

Technical Specifications

Item	Specification
Top Plate Hole / Stud Qty	2
Top Plate Diameter	6.4 in
Top Plate Center-to-Center Diameter	3.38 in
Bottom Plate Hole / Stud Qty	2
Bottom Plate Diameter	6.4 in
Bottom Plate Center-to-Center Diameter	3.5 in
Bottom Plate Alignment	Parallel
Bumper	Yes
Minimum Height	3.9 in
Maximum Height	10.4 in

Product Advantages

Superior Vibration Isolation Performance: Effectively absorbs vibration and shock, protecting machinery and improving operational stability.
Durable Rubber and Metal Construction: Utilizes high-quality rubber and robust iron components for enhanced strength and fatigue resistance.
Wide Working Height Range: Flexible travel design allows for smooth adjustment between minimum and maximum working heights.
Easy Installation: Standard mounting dimensions allow for quick and easy replacement without modification.
Economical Choice: Fully compatible with mainstream brands, ensuring consistent quality.
