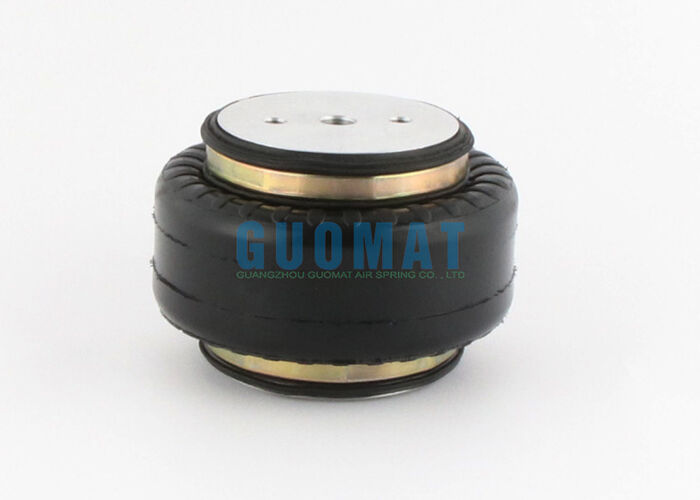

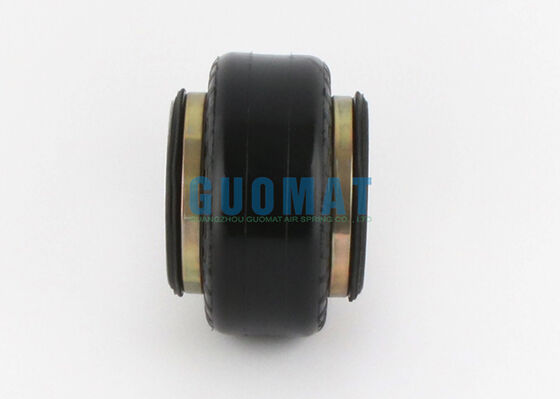

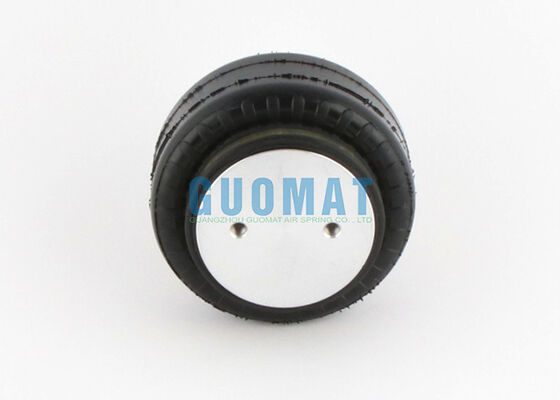

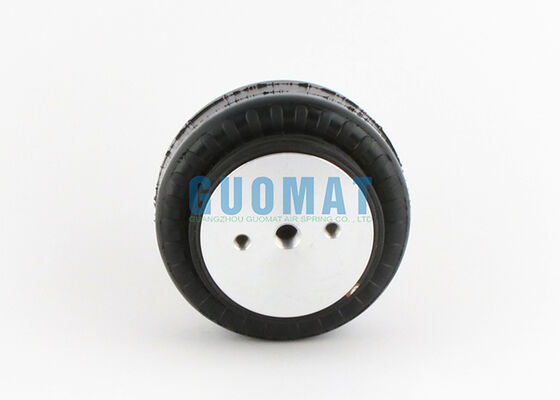

1B5-550 Goodyear Industrial Vibration Air Spring 3.8'' Max Height Rubber Air Shock Absorber

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B5-500

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$49.9-59.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Spring Material:	Natural Rubber And Steel	Other Name:	Air Suspension Shock Absorber
Warranty:	12 Months	Packing:	Neutral Packing
Quality:	100% Tested	Model:	1B5-550
Color:	Black	MOQ:	5pcs
Highlight:	Goodyear industrial air spring , 3.8 inch rubber air shock absorber , vibration air spring with warranty

1B5-550 Goodyear Industrial Vibration Air Spring 3.8" Max Height Rubber Air Shock Absorber

Product Overview

The GUOMAT 1B5-550 Industrial Vibration Air Spring is a compact rubber air shock absorber designed for precision vibration isolation and equipment protection.

With a short stroke and stable load control, this air spring is ideal for industrial machinery where space is limited and vibration sensitivity is high.

Manufactured using high-quality rubber and reinforced metal components, GUOMAT 1B5-550 provides reliable damping performance and long service life in demanding industrial environments.

Technical Specifications

Item	Specification
Top Plate Diameter	3.4 in
Threaded Holes	3/8-16 UNC
Air Inlet Port	1/4" or 3/4"
Center-to-Center Distance (Threaded Holes)	1.75 in
Maximum Outside Diameter (at 100 PSIG)	5.7 in
Maximum Extended Height	3.8 in
Minimum Compressed Height	1.8 in

Constant Pressure Characteristics

Assembly Height (in)	Volume @ 100PSIG (in)	Nominal Force (Ib)
		@20PSIG	@40PSIG	@50PSIG	@60PSIG	@100PSIG
3.8	51	60	170	280	400	560
3.5	48	130	280	440	620	800
3.0	41	210	420	660	850	1100
2.75	37	240	480	700	1000	1250
2.5	33	260	520	800	1050	1350
2.0	26	280	560	850	150	1450
1.8	24	280	580	900	1200	1500

Typical Application: CNC Machining Equipment

GUOMAT 1B5-550 air springs are widely used in CNC machining centers, milling machines, and precision lathes to isolate vibration generated during high-speed operation.

By absorbing vibration and micro-shock:
